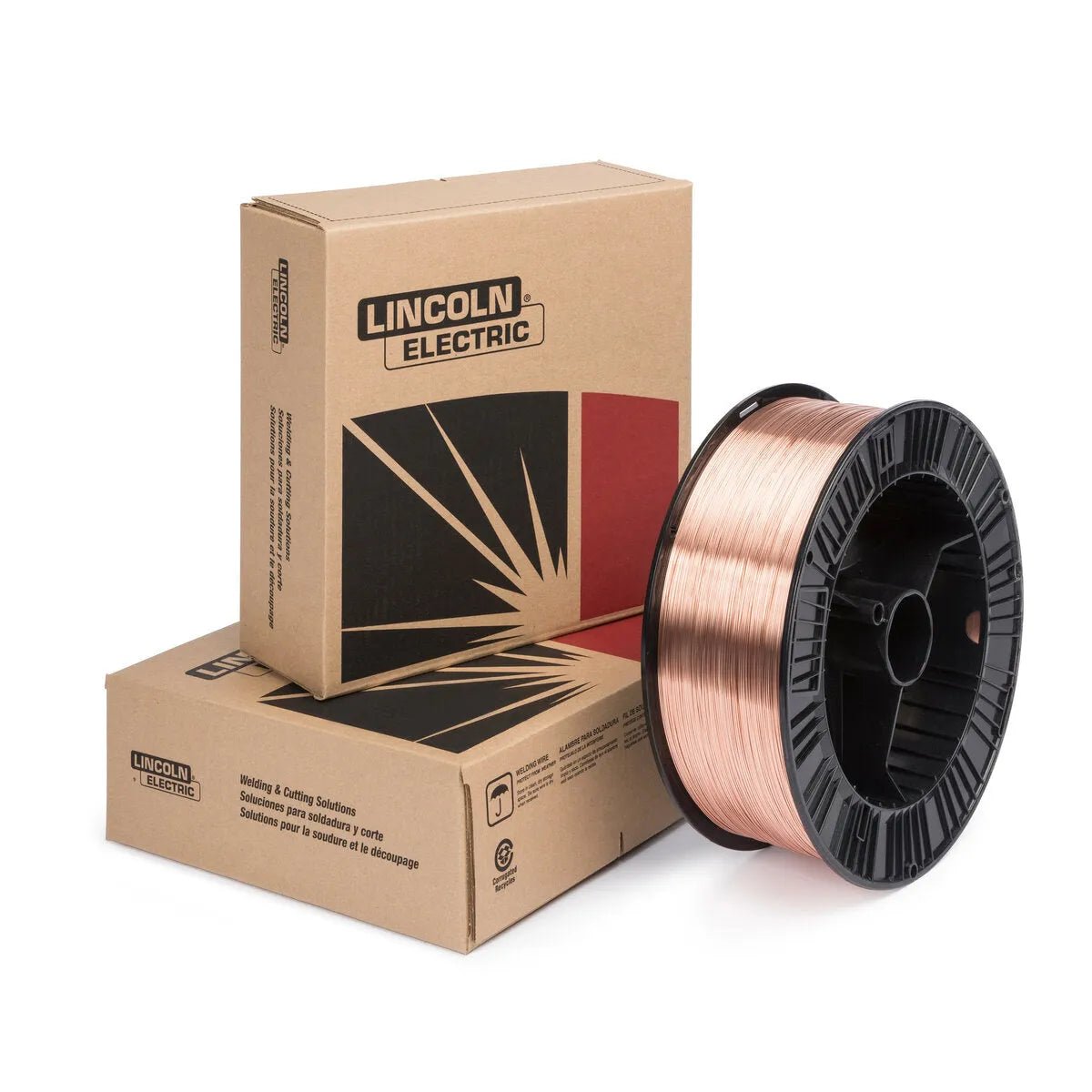

Lincoln ED036532 Pipeliner 70S-6 MIG GMAW Welding Wire, 0.040 in, 33 lb Spool

SKU: ED036532
$233.08 $272.91
Lincoln Elite Dealer
Free Shipping over $250
Lowest Price
Pipeliner® 70S-6 from Lincoln Electric is an engineered alloy providing superior impact toughness at low temperatures.
AWS / Classification: ER70S-6
Overview

An engineered alloy providing superior impact toughness at low temperatures.

Features
  • An engineered alloy providing superior impact toughness at low temperatures
  • Microguard® Ultra provides superior feeding and arc stability
  • ProTech® packaging system
Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.18ER70S-6
ABS ABS - Part 23YSA
TUV TUV ISO 14341-AG 42 3 C1 3Si1, G 46 4 M21 3Si1, G 46 4 M31 3Si1
Classification Shielding GasPolarityYield Strength @ 0.2% Offset, MPa (ksi)Tensile Strength, MPa (ksi)Elongation, %Charpy V-Notch, J (ft-lbs) @ -30°C (-20°F)
ER70S-6 Requirement 100% CO2DC+400 (58) min.480 (70) min.22 min.27 (20) min.
Typical Result, As-welded 100% CO2DC+470 (68)580 (84)2881-95 (60-70)
Classification %C%Cr%Mn%Ni%P%S%Si%V%Total Cu
ER70S-6 Requirement 0.06 - 0.150.15 max.1.40 - 1.850.15 max.0.025 max.0.035 max.0.80 - 1.150.03 max.0.50 max.
Typical Result 0.100.031.460.010.0050.0090.820.003 max.0.17
Diameter Shielding GasPolarityCTWD, mm (in.)⁽¹⁾Wire Feed Speed, m/min (in/min)Voltage, voltsApprox. Current, ampsMelt-off Rate, kg/hr (lb/hr)
1.0 mm (0.040 in) 75-95% Ar / balance CO2DC+12-19 (1/2-3/4)2.5-14.0 (100-550)19-31105-3201.0-5.2 (2.1-11.5)
1.2 mm (0.047 in) 75-95% Ar / balance CO2DC+12-19 (1/2-3/4)3.2-12.7 (125-500)19-31145-3601.7-6.5 (3.7-14.3)
Note
⁽¹⁾ CTWD (Contact Tip to Work Distance). Subtract 1/4 in. (6.4 mm) to calculate Electrical Stickout.
LECO Diameter 1.0 mm (0.040 in)
LECO Package 33 lb Spool
Diameter (in) 0.040
Downloads
Includes
  • (1) 33 lb Spool
