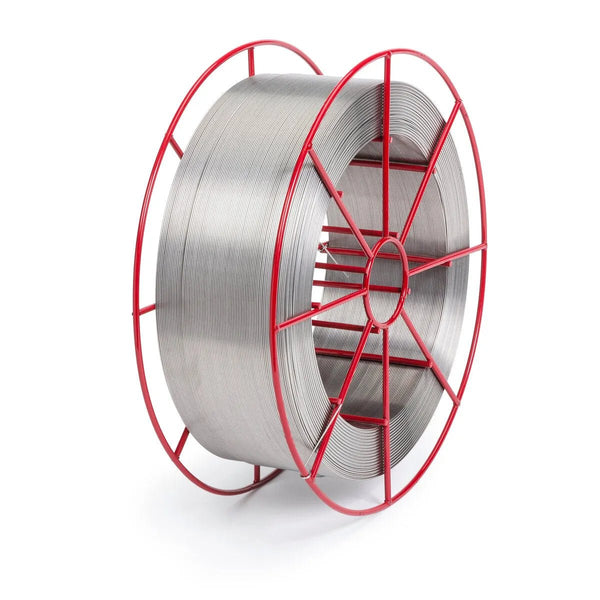

Lincoln ED036764 Lincoln Red Max 309LSi MIG GMAW Stainless Steel We...
LINCOLN® RED MAX® 309LSi 0.045 inch welding wire produces high silicon level for increased puddle fluidity and toe wetting, proprietary surface lubricant allows for weldability control in semiautomatic operations.
| Feature | Value |
|---|---|
| CONFORMANCES | SPECIFICATIONCLASSIFICATION |
| AWS | AWS A5.9ER309LSi, ER309Si |
| ABS | AWS A5.9ER309LSi, ER309Si |
| CWB | CSA W48ER309Si, ER309LSi |
| DB | ISO 14343-AG 23 12 L Si |
| Classification | Yield Strength @ 0.2% Offset, MPa (ksi)Tensile Strength, MPa (ksi)Elongation, % |
| Typical Result | 430 (63)600 (87)31 |
| Classification | %C%Cr%Cu%Mn%Mo%N%Nb%Ni%P%S%SiFerrite Number (Delong ©)Ferrite Number (WRC-1992 ©) |
| ER309LSi Requirement | 0.03 max.23.0 - 25.00.75 max.1.0 - 2.50.75 max.Info. OnlyInfo. Only12.0 - 14.00.03 max.0.03 max.0.65 - 1.00Info. OnlyInfo. Only |
| ER309Si Requirement | 0.12 max.23.0 - 25.00.75 max.1.0 - 2.50.75 max.Info. OnlyInfo. Only12.0 - 14.00.03 max.0.03 max.0.65 - 1.00Info. OnlyInfo. Only |
| Typical Result | 0.0223.4-23.50.04-0.081.8-2.10.02-0.160.07-0.110.01 max.13.4-13.70.020.01 max.0.74-0.849-157-11 |
| Diameter | Transfer ModeShielding GasPolarityCTWD, mm (in.)⁽¹⁾Wire Feed Speed, m/min (in/min)Voltage, voltsApprox. Current, ampsDeposition Rate, kg/hr (lb/hr) |
| 0.035 in (0.9 mm) | Short Circuit Transfer90% He / 7.5% Ar / 2.5% CO2DC+13 (1/2)3.0 (120)20-21600.9 (2.0) |
| 0.035 in (0.9 mm) | Short Circuit Transfer90% He / 7.5% Ar / 2.5% CO2DC+13 (1/2)4.6 (180)21-23901.4 (3.0) |
| 0.035 in (0.9 mm) | Short Circuit Transfer90% He / 7.5% Ar / 2.5% CO2DC+13 (1/2)5.8 (230)22-241051.8 (3.9) |
| 0.035 in (0.9 mm) | Short Circuit Transfer90% He / 7.5% Ar / 2.5% CO2DC+13 (1/2)7.6 (300)23-251302.3 (5.0) |
| 0.035 in (0.9 mm) | Short Circuit Transfer90% He / 7.5% Ar / 2.5% CO2DC+13 (1/2)8.9 (350)24-261452.7 (5.9) |
| 0.035 in (0.9 mm) | Short Circuit Transfer90% He / 7.5% Ar / 2.5% CO2DC+13 (1/2)10.2 (400)25-271553.1 (6.7) |
| 0.045 in (1.1 mm) | Short Circuit Transfer90% He / 7.5% Ar / 2.5% CO2DC+13 (1/2)2.5 (100)20-21801.1 (2.8) |
| 0.045 in (1.1 mm) | Short Circuit Transfer90% He / 7.5% Ar / 2.5% CO2DC+13 (1/2)3.2 (125)21-221101.5 (3.5) |
| 0.045 in (1.1 mm) | Short Circuit Transfer90% He / 7.5% Ar / 2.5% CO2DC+13 (1/2)3.8 (150)21-231301.7 (4.2) |
| 0.045 in (1.1 mm) | Short Circuit Transfer90% He / 7.5% Ar / 2.5% CO2DC+13 (1/2)4.4 (175)22-241452.0 (4.8) |
| 0.045 in (1.1 mm) | Short Circuit Transfer90% He / 7.5% Ar / 2.5% CO2DC+13 (1/2)5.6 (220)23-251702.6 (6.1) |
| 0.045 in (1.1 mm) | Short Circuit Transfer90% He / 7.5% Ar / 2.5% CO2DC+13 (1/2)6.4 (250)24-261802.9 (6.9) |
| 0.045 in (1.1 mm) | Short Circuit Transfer90% He / 7.5% Ar / 2.5% CO2DC+13 (1/2)7.0 (275)25-271903.2 (7.6) |
| 0.035 in (0.9 mm) | Axial Spray Transfer98% Ar / 2% O2DC+13 (1/2)10.2 (400)23-241903.1 (6.7) |
| 0.035 in (0.9 mm) | Axial Spray Transfer98% Ar / 2% O2DC+13 (1/2)10.8 (425)24-252003.3 (7.1) |
| 0.035 in (0.9 mm) | Axial Spray Transfer98% Ar / 2% O2DC+13 (1/2)11.4 (450)24-252103.5 (7.5) |
| 0.035 in (0.9 mm) | Axial Spray Transfer98% Ar / 2% O2DC+13 (1/2)12.1 (475)25-262203.7 (8.0) |
| 0.045 in (1.1 mm) | Axial Spray Transfer98% Ar / 2% O2DC+13 (1/2)6.1 (240)22-241952.8 (6.6) |
| 0.045 in (1.1 mm) | Axial Spray Transfer98% Ar / 2% O2DC+13 (1/2)6.6 (260)23-252153.0 (7.2) |
| 0.045 in (1.1 mm) | Axial Spray Transfer98% Ar / 2% O2DC+13 (1/2)7.6 (300)24-262453.5 (8.3) |
| 0.045 in (1.1 mm) | Axial Spray Transfer98% Ar / 2% O2DC+13 (1/2)8.3 (325)25-272503.8 (9.0) |
| 0.045 in (1.1 mm) | Axial Spray Transfer98% Ar / 2% O2DC+13 (1/2)9.1 (360)25-272754.2 (10.0) |
| Note | |
| ⁽¹⁾ To estimate ESO, subtract 1/8 in (3.2 mm) from CTWD. | |
| LECO Diameter | 0.045 in (1.1 mm) |
| LECO Package | 33 lb Spool |
| Diameter (in) | 0.045 |
