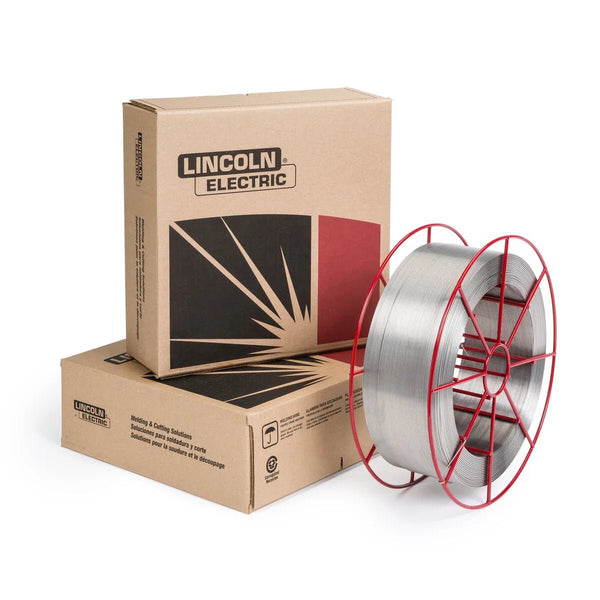

Lincoln ED036933 Lincoln Red Max 307_MOD MIG GMAW Stainless Steel Welding Wire, 0.035 in, 33 lb Spool

SKU: ED036933
$681.77

Financing Options

•
Loading Affirm Estimate…
•
Lease-To-Own From $31/mo — 24-Mo Term, No Hard Credit Check
Lincoln Elite Dealer
Free Shipping
Lowest Price
LINCOLN® RED MAX® 307_MOD Metal Inert Gas Wire is an austenitic stainless steel designed for joining dissimilar stainless steels, military armor plate and automotive exhaust systems applications.
AWS / Classification: Similar to AWS A5.9: ER307, ISO 14343-A: G 18 8 Mn
Overview

LINCOLN® RED MAX® 307_MOD 0.035 inch welding wire provides work hardening manganese steel with 7% manganese (Mn) composition for increased resistance to hot cracking between dissimilar steels during semiautomatic operations.

Features
  • Austenitic stainless steel
  • 7% Manganese (Mn) increases resistance to hot cracking between dissimilar steels
  • Q2 Lot® - Certificates showing actual wire composition and calculated ferrite number (FN) available online
Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
ISO ISO 14343-AG 18 8 Mn
Classification Yield Strength @ 0.2% Offset, MPa (ksi)Tensile Strength, MPa (ksi)Elongation, %
Typical Result 430 (62)630 (92)38
Classification %C%Cr%Cu%Mn%Mo%Ni%P%S%Si
G 18 8 Mn Requirement 0.20 max.17.0 - 20.00.5 max.5.0 - 8.00.5 max.7.0 - 10.00.03 max.0.03 max.1.2 max.
Typical Result 0.04-0.0817.9-18.80.1-0.35.7-7.00.1-0.38.1-8.20.020.010.8
Diameter Transfer ModeShielding GasPolarityCTWD, mm (in.)⁽¹⁾Wire Feed Speed, m/min (in/min)Voltage, voltsApprox. Current, ampsDeposition Rate, kg/hr (lb/hr)
0.035 in (0.9 mm) Short Circuit Transfer90% He / 7.5% Ar / 2.5% CO2DC+13 (1/2)3.0 (120)20-21600.9 (2.0)
0.035 in (0.9 mm) Short Circuit Transfer90% He / 7.5% Ar / 2.5% CO2DC+13 (1/2)4.6 (180)21-23901.4 (3.0)
0.035 in (0.9 mm) Short Circuit Transfer90% He / 7.5% Ar / 2.5% CO2DC+13 (1/2)5.8 (230)22-241051.8 (3.9)
0.035 in (0.9 mm) Short Circuit Transfer90% He / 7.5% Ar / 2.5% CO2DC+13 (1/2)7.6 (300)23-251302.3 (5.0)
0.035 in (0.9 mm) Short Circuit Transfer90% He / 7.5% Ar / 2.5% CO2DC+13 (1/2)8.9 (350)24-261452.7 (5.9)
0.035 in (0.9 mm) Short Circuit Transfer90% He / 7.5% Ar / 2.5% CO2DC+13 (1/2)10.2 (400)25-271553.1 (6.7)
0.045 in (1.1 mm) Short Circuit Transfer90% He / 7.5% Ar / 2.5% CO2DC+13 (1/2)2.5 (100)20-21801.1 (2.8)
0.045 in (1.1 mm) Short Circuit Transfer90% He / 7.5% Ar / 2.5% CO2DC+13 (1/2)3.2 (125)21-221101.5 (3.5)
0.045 in (1.1 mm) Short Circuit Transfer90% He / 7.5% Ar / 2.5% CO2DC+13 (1/2)3.8 (150)21-231301.7 (4.2)
0.045 in (1.1 mm) Short Circuit Transfer90% He / 7.5% Ar / 2.5% CO2DC+13 (1/2)4.4 (175)22-241452.0 (4.8)
0.045 in (1.1 mm) Short Circuit Transfer90% He / 7.5% Ar / 2.5% CO2DC+13 (1/2)5.6 (220)23-251702.6 (6.1)
0.045 in (1.1 mm) Short Circuit Transfer90% He / 7.5% Ar / 2.5% CO2DC+13 (1/2)6.4 (250)24-261802.9 (6.9)
0.045 in (1.1 mm) Short Circuit Transfer90% He / 7.5% Ar / 2.5% CO2DC+13 (1/2)7.0 (275)25-271903.2 (7.6)
0.035 in (0.9 mm) Axial Spray Transfer98% Ar / 2% O2DC+13 (1/2)10.2 (400)23-241903.1 (6.7)
0.035 in (0.9 mm) Axial Spray Transfer98% Ar / 2% O2DC+13 (1/2)10.8 (425)24-252003.3 (7.1)
0.035 in (0.9 mm) Axial Spray Transfer98% Ar / 2% O2DC+13 (1/2)11.4 (450)24-252103.5 (7.5)
0.035 in (0.9 mm) Axial Spray Transfer98% Ar / 2% O2DC+13 (1/2)12.1 (475)25-262203.7 (8.0)
0.045 in (1.1 mm) Axial Spray Transfer98% Ar / 2% O2DC+13 (1/2)6.1 (240)22-241952.8 (6.6)
0.045 in (1.1 mm) Axial Spray Transfer98% Ar / 2% O2DC+13 (1/2)6.6 (260)23-252153.0 (7.2)
0.045 in (1.1 mm) Axial Spray Transfer98% Ar / 2% O2DC+13 (1/2)7.6 (300)24-262453.5 (8.3)
0.045 in (1.1 mm) Axial Spray Transfer98% Ar / 2% O2DC+13 (1/2)8.3 (325)25-272503.8 (9.0)
0.045 in (1.1 mm) Axial Spray Transfer98% Ar / 2% O2DC+13 (1/2)9.1 (360)25-272754.2 (10.0)
Note
⁽¹⁾ To estimate ESO, subtract 1/8 in (3.2 mm) from CTWD.
LECO Diameter 0.035 in (0.9 mm)
LECO Package 33 lb Spool
Diameter (in) 0.035
Downloads
Includes
  • (1) 33 lb Spool
