Lincoln Electric UltraCore 308L ED037119 Flux-Core Wire 1/16" – 33 lb

SKU: ED037119
$528.65 $530.97

Financing Options

•
Loading Affirm Estimate…
•
Lease-To-Own From $24/mo — 24-Mo Term, No Hard Credit Check
Lincoln Elite Dealer
Free Shipping
Lowest Price
Smooth arc action with minimal spatter reduces post-weld cleaning
AWS / Classification: AWS A5.22: E308LT0-1, AWS A5.22: E308LT0-4
Overview

ULTRACORE® 308L delivers consistent mechanical properties, superior arc performance, and easy slag removal. Can be used when welding Nitrogen bearing 304LN and titanium stabilized 321.

Features
  • Precision layer wound winding delivers steady spool payoff and more consistent feeding
  • Smooth arc action with minimal spatter reduces post-weld cleaning
  • Polished weld bead appearance reduces post-weld brushing

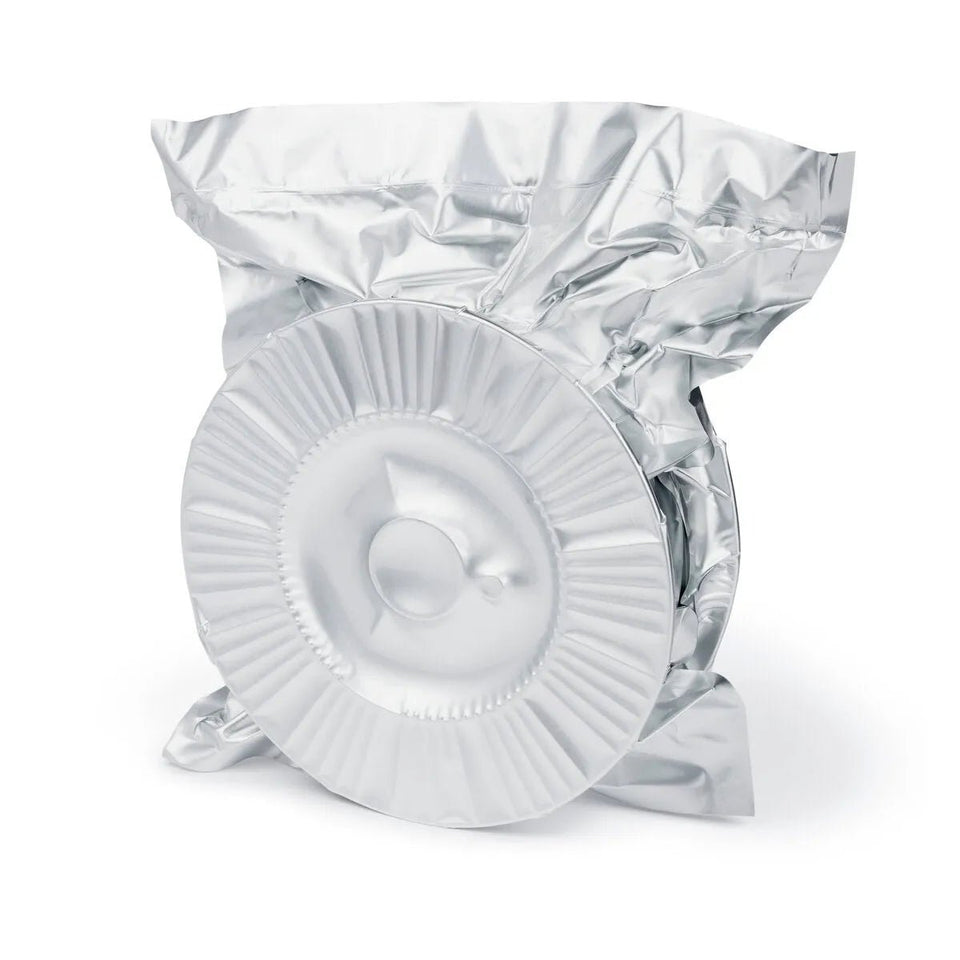

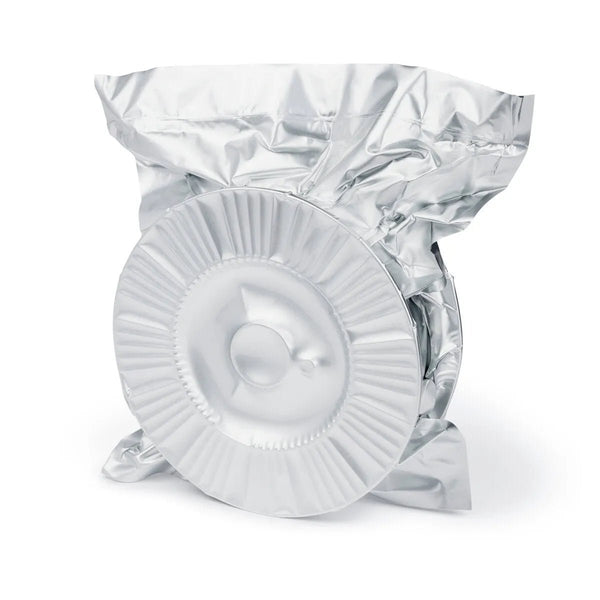

  • Vacuum sealed foil packaging to keep moisture out
Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.22E308LT0-1, E308LT0-4
ABS AWS A5.22E308LT0-1, E308LT0-4
CWB AWS A5.22E308LT0-1, E308LT0-4
Classification Shielding GasTensile Strength, MPa (ksi)Elongation, %Longitudinal Face Bend
E308LT0-1 Requirement 100% CO2520 (75) min.30 min.No opening in excess of 1/8 inch
E308LT0-4 Requirement 75-80% Ar, balance CO2520 (75) min.30 min.No opening in excess of 1/8 inch
Typical Result, As-welded 100% CO2550 (80)57Passed
Typical Result, As-welded 75-80% Ar, balance CO2560 (81)54Passed
Classification Shielding Gas%C%Cr%Cu%Mn%Mo%N%Ni%P%S%SiFerrite Number (per AWS A4.2)
E308LT0-1 Requirement 100% CO20.04 max.18.0 - 21.00.75 max.0.5 - 2.50.75 max.Info. Only9.0 - 11.00.04 max.0.03 max.1.0 max.Info. Only
E308LT0-4 Requirement 75-80% Ar, balance CO20.04 max.18.0 - 21.00.75 max.0.5 - 2.50.75 max.Info. Only9.0 - 11.00.04 max.0.03 max.1.0 max.Info. Only
Typical Result 100% CO20.0318.50.071.20.050.0310.30.020.010.67
Typical Result 75-80% Ar, balance CO20.0418.50.051.30.060.0310.00.020.010.88
Diameter Shielding GasPolarityCTWD, mm (in.)⁽¹⁾Wire Feed Speed, m/min (in/min)Voltage, voltsApprox. Current, ampsMelt-off Rate, kg/hr (lb/hr)Deposition Rate, kg/hr (lb/hr)Efficiency, %
0.045 in (1.1 mm) 75% Ar / 25% CO2DC+19 (3/4)5.3 (210)22-241402.1 (4.6)1.8 (4.0)86
0.045 in (1.1 mm) 75% Ar / 25% CO2DC+19 (3/4)8.9 (350)24-261853.6 (8.0)3.1 (6.9)86
0.045 in (1.1 mm) 75% Ar / 25% CO2DC+19 (3/4)11.4 (450)26-282254.7 (10.4)4.0 (8.8)84
1/16 in (1.6 mm) 75% Ar / 25% CO2DC+25 (1)3.6 (140)25-291552.8 (6.2)2.6 (5.2)89.6
1/16 in (1.6 mm) 75% Ar / 25% CO2DC+25 (1)6.4 (250)27-312505.0 (11.0)4.2 (9.2)89.3
1/16 in (1.6 mm) 75% Ar / 25% CO2DC+25 (1)8.1 (320)28-322856.0 (13.2)5.3 (11.7)88.6
Note
⁽¹⁾ To estimate ESO, subtract 1/4 in. (6.0 mm) from CTWD.
LECO Diameter 1/16 in (1.6 mm)
LECO Package 33 lb Spool
Diameter (in) 1/16
Downloads
Includes
  • (1) 33 lb Spool
