Lincoln Electric UltraCore 316L ED037123 Flux-Core Wire 1/16" – 33 lb

SKU: ED037123
$376.15 $610.17
Lincoln Elite Dealer
Free Shipping
Lowest Price
Smooth arc action with minimal spatter reduces post-weld cleaning
AWS / Classification: AWS A5.22: E316LT0-1, AWS A5.22: E316LT0-4
Overview

ULTRACORE® 316L produces stabilized nitrogen titanium and niobium chemical composition ideal for polished weld bead appearance and smooth arc action with minimal spatter reduces post-weld cleaning during welding operations.

Features
  • Precision layer wound winding delivers steady spool payoff and more consistent feeding
  • Smooth arc action with minimal spatter reduces post-weld cleaning
  • Polished weld bead appearance reduces post-weld brushing

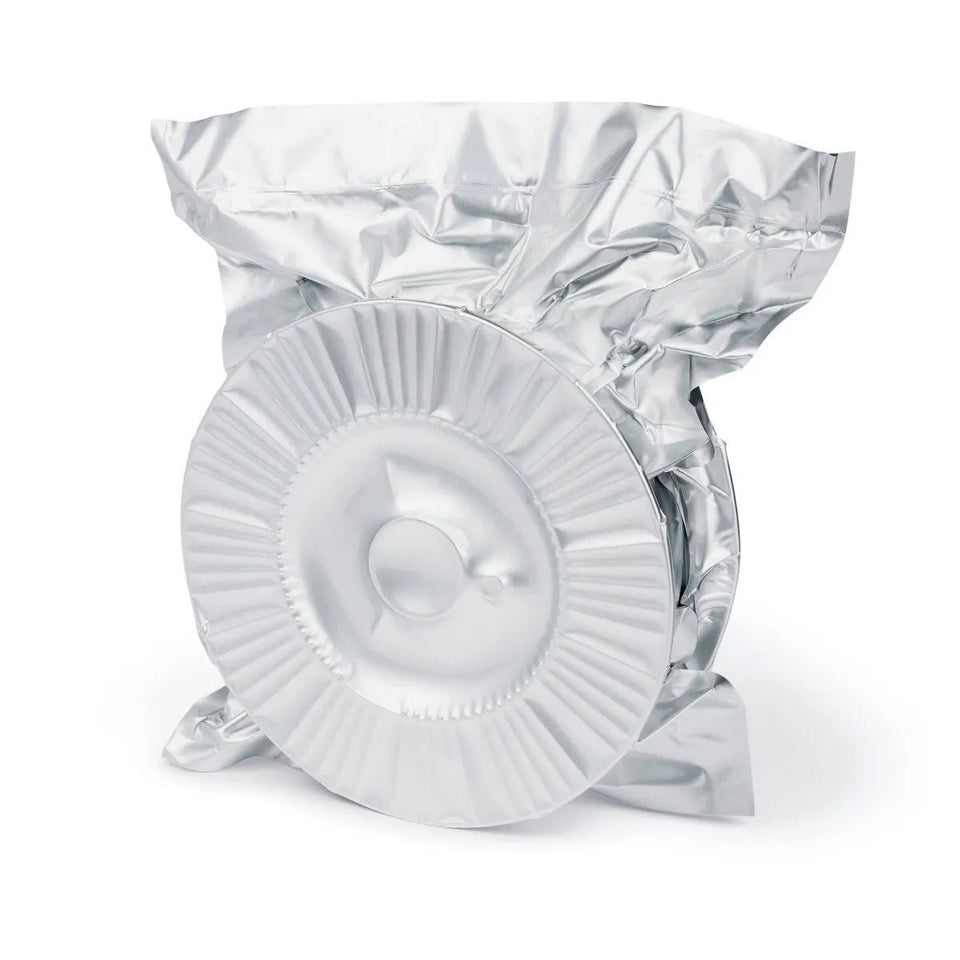

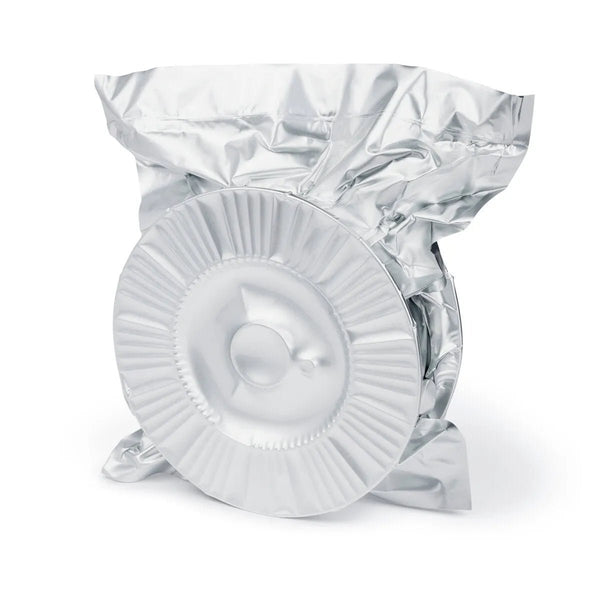

  • Vacuum sealed foil packaging to keep moisture out
Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.22E316LT0-1, E316LT0-4
ABS AWS A5.22E316LT0-1, E316LT0-4
CWB AWS A5.22E316LT0-1, E316LT0-4
Classification Shielding GasTensile Strength, MPa (ksi)Elongation, %Longitudinal Face Bend
E316LT0-1 Requirement 100% CO2480 (70) min.30 min.No opening in excess of 1/8 inch
E316LT0-4 Requirement 75-80% Ar, balance CO2480 (70) min.30 min.No opening in excess of 1/8 inch
Typical Result, As-welded 100% CO2550 (80)46Passed
Typical Result, As-welded 75% Ar, 25% CO2540 (79)52Passed
Classification Shielding Gas%C%Cr%Cu%Mn%Mo%N%Ni%P%S%SiFerrite Number (per AWS A4.2)
E316LT0-1 Requirement 100% CO20.04 max.17.0 - 20.00.75 max.0.5 - 2.52.0 - 3.0Info. Only11.0 - 14.00.04 max.0.03 max.1.0 max.Info. Only
E316LT0-4 Requirement 75-80% Ar, balance CO20.04 max.17.0 - 20.00.75 max.0.5 - 2.52.0 - 3.0Info. Only11.0 - 14.00.04 max.0.03 max.1.0 max.Info. Only
Typical Result 100% CO20.0417.90.071.22.60.0312.40.020.010.77
Typical Result 75% Ar, 25% CO20.0318.10.071.42.50.0312.20.020.010.88
Diameter Shielding GasPolarityCTWD, mm (in.)⁽¹⁾Wire Feed Speed, m/min (in/min)Voltage, voltsApprox. Current, ampsMelt-off Rate, kg/hr (lb/hr)Deposition Rate, kg/hr (lb/hr)Efficiency, %
0.045 in (1.1 mm) 75% Ar / 25% CO2DC+19 (3/4)5.3 (210)22-241302.2 (4.8)1.9 (4.1)85.4
0.045 in (1.1 mm) 75% Ar / 25% CO2DC+19 (3/4)8.9 (350)24-261753.7 (8.2)3.2 (7.0)85.3
0.045 in (1.1 mm) 75% Ar / 25% CO2DC+19 (3/4)11.4 (450)26-282104.6 (10.1)4.1 (9.0)89.1
1/16 in (1.6 mm) 75% Ar / 25% CO2DC+25 (1)3.6 (140)23-251552.7 (5.9)2.3 (5.0)84.7
1/16 in (1.6 mm) 75% Ar / 25% CO2DC+25 (1)6.4 (250)25-272304.8 (10.6)4.3 (9.4)88.6
1/16 in (1.6 mm) 75% Ar / 25% CO2DC+25 (1)8.1 (320)26-282806.2 (13.6)5.5 (12.1)88.9
Note
⁽¹⁾ To estimate ESO, subtract 1/4 in. (6.0 mm) from CTWD.
LECO Diameter 1/16 in (1.6 mm)
LECO Package 33 lb Spool
Diameter (in) 1/16
Includes
  • (1) 33 lb Spool
