Lincoln Electric UltraCore 316L ED037130 Flux-Core Wire 1/16" – 33 lb

SKU: ED037130
$616.43 $618.75
Lincoln Elite Dealer
Free Shipping
Lowest Price
Smooth arc action with minimal spatter reduces post-weld cleaning
AWS / Classification: AWS A5.22: E316LT1-1, AWS A5.22: E316LT1-4
Overview

ULTRACORE® 316L P produces stabilized nitrogen titanium and niobium chemical composition ideal for polished weld bead appearance and smooth arc action with minimal spatter reduces post-weld cleaning for all welding positions, including fixed pipework operations.

Features
  • Precision layer wound winding delivers steady spool payoff and more consistent feeding
  • Smooth arc action with minimal spatter reduces post-weld cleaning
  • Polished weld bead appearance reduces post-weld brushing

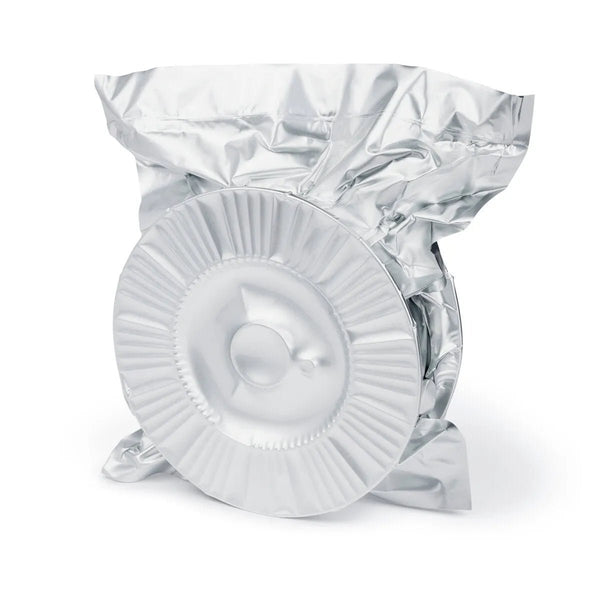

  • Vacuum sealed foil packaging to keep moisture out

Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.22E316LT1-1, E316LT1-4
ABS AWS A5.22E316LT1-1, E316LT1-4
CWB AWS A5.22E316LT1-1, E316LT1-4
Classification Shielding GasTensile Strength, MPa (ksi)Elongation, %Longitudinal Face Bend
E316LT1-1 Requirement 100% CO2480 (70) min.30 min.No opening in excess of 1/8 inch
E316LT1-4 Requirement 75-80% Ar, balance CO2480 (70) min.30 min.No opening in excess of 1/8 inch
Typical Result, As-welded 100% CO2560 (81)46Passed
Typical Result, As-welded 75% Ar, 25% CO2560 (81)45Passed
Classification Shielding Gas%C%Cr%Cu%Mn%Mo%N%Ni%P%S%SiFerrite Number (per AWS A4.2)
E316LT1-1 Requirement 100% CO20.04 max.17.0 - 20.00.75 max.0.5 - 2.52.0 - 3.0Info. Only11.0 - 14.00.04 max.0.03 max.1.0 max.Info. Only
E316LT1-4 Requirement 75-80% Ar, balance CO20.04 max.17.0 - 20.00.75 max.0.5 - 2.52.0 - 3.0Info. Only11.0 - 14.00.04 max.0.03 max.1.0 max.Info. Only
Typical Result 100% CO20.0318.00.071.22.70.0212.30.020.010.68
Typical Result 75% Ar, 25% CO20.0318.10.071.32.70.0112.50.020.010.78
Diameter Shielding GasPolarityCTWD, mm (in.)⁽¹⁾Wire Feed Speed, m/min (in/min)Voltage, voltsApprox. Current, ampsMelt-off Rate, kg/hr (lb/hr)Deposition Rate, kg/hr (lb/hr)Efficiency, %
0.045 in (1.1 mm) 75% Ar / 25% CO2DC+19 (3/4)5.1 (200)22-24130230 (4.5)1.5 (3.3)73.3
0.045 in (1.1 mm) 75% Ar / 25% CO2DC+19 (3/4)8.4 (330)24-261803.3 (7.3)2.6 (5.8)79.4
0.045 in (1.1 mm) 75% Ar / 25% CO2DC+19 (3/4)11.2 (440)26-282204.4 (9.7)3.6 (7.9)81.4
1/16 in (1.6 mm) 75% Ar / 25% CO2DC+25 (1)3.6 (140)24-261702.6 (5.7)2.2 (4.8)84.2
1/16 in (1.6 mm) 75% Ar / 25% CO2DC+25 (1)5.0 (195)24-262003.6 (7.9)3.0 (6.7)84.8
1/16 in (1.6 mm) 75% Ar / 25% CO2DC+25 (1)7.1 (280)25-272205.2 (11.4)4.4 (9.7)85
Note
⁽¹⁾ To estimate ESO, subtract 1/4 in. (6.0 mm) from CTWD.
LECO Diameter 1/16 in (1.6 mm)
LECO Package 33 lb Spool
Diameter (in) 1/16
Includes
  • (1) 33 lb Spool
