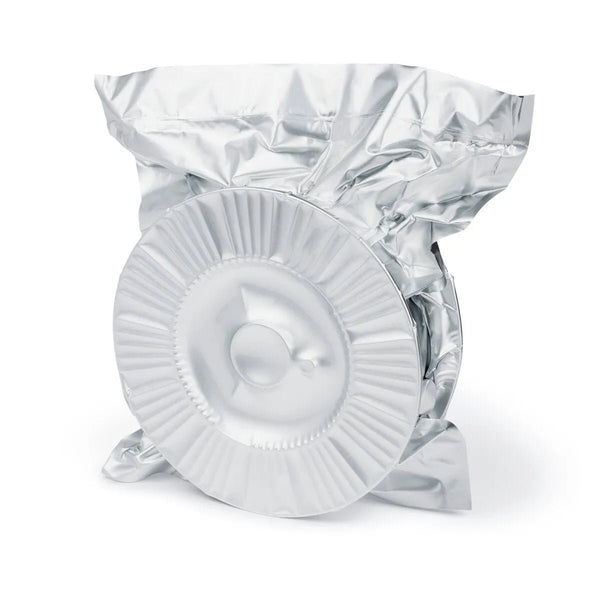

Lincoln Electric UltraCore 308L ED037217 Flux-Core Wire 0.045" – 10 lb

SKU: ED037217
$193.67
Lincoln Elite Dealer
Free Shipping over $250
Lowest Price
Smooth arc action with minimal spatter reduces post-weld cleaning
AWS / Classification: AWS A5.22: E308LT1-1, AWS 5.22: E308LT1-4
Overview

ULTRACORE® 308L P delivers consistent mechanical properties, superior arc performance, and easy slag removal. Can be used when welding Nitrogen bearing 304LN and titanium stabilized 321.

Features
  • Precision layer wound spool delivers steady spool payoff and more consistent feeding
  • Smooth arc action with minimal spatter reduces post-weld cleaning
  • Polished weld bead appearance reduces post-weld brushing
Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.22E308LT1-1, E308LT1-4
ABS AWS A5.22E308LT1-1, E308LT1-4
CWB AWS A5.22E308LT1-1, E308LT1-4
Classification Shielding GasTensile Strength, MPa (ksi)Elongation, %Longitudinal Face Bend
E308LT1-1 Requirement 100% CO2520 (75) min.30 min.No opening in excess of 1/8 inch
E308LT1-4 Requirement 75-80% Ar, balance CO2520 (75) min.30 min.No opening in excess of 1/8 inch
Typical Result, As-welded 100% CO2540 (78)56Passed
Typical Result, As-welded 75% Ar, 25% CO2560 (81)50Passed
Classification Shielding Gas%C%Cr%Cu%Mn%Mo%N%Ni%P%S%SiFerrite Number (per AWS A4.2)
E308LT1-1 Requirement 100% CO20.04 max.18.0 - 21.00.75 max.0.5 - 2.50.75 max.Info. Only9.0 - 11.00.04 max.0.03 max.1.0 max.Info. Only
E308LT1-4 Requirement 75-80% Ar, balance CO20.04 max.18.0 - 21.00.75 max.0.5 - 2.50.75 max.Info. Only9.0 - 11.00.04 max.0.03 max.1.0 max.Info. Only
Typical Result 100% CO20.0318.60.071.20.050.0310.40.020.010.68
Typical Result 75% Ar, 25% CO20.0419.00.071.40.060.0310.40.020.010.88
Diameter Shielding GasPolarityCTWD, mm (in.)⁽¹⁾Wire Feed Speed, m/min (in/min)Voltage, voltsApprox. Current, ampsMelt-off Rate, kg/hr (lb/hr)Deposition Rate, kg/hr (lb/hr)Efficiency, %
0.045 in (1.1 mm) 75% Ar / 25% CO2DC+19 (3/4)5.1 (200)22-241302.0 (4.3)1.5 (3.3)76.7
0.045 in (1.1 mm) 75% Ar / 25% CO2DC+19 (3/4)8.4 (330)24-261803.3 (7.2)2.6 (5.7)79.1
0.045 in (1.1 mm) 75% Ar / 25% CO2DC+19 (3/4)11.2 (440)26-282204.3 (9.5)3.5 (7.8)82.1
1/16 in (1.6 mm) 75% Ar / 25% CO2DC+25 (1)3.6 (140)24-261602.5 (5.6)2.2 (4.8)85.7
1/16 in (1.6 mm) 75% Ar / 25% CO2DC+25 (1)5.0 (195)24-262003.5 (7.8)3.0 (6.7)85.8
1/16 in (1.6 mm) 75% Ar / 25% CO2DC+25 (1)6.4 (25025-272204.6 (10.1)3.9 (8.6)85.6
Note
⁽¹⁾ To estimate ESO, subtract 1/4 in. (6.0 mm) from CTWD.
LECO Diameter 0.045 in (1.1 mm)
LECO Package 10 lb Spool
Diameter (in) 0.045
Includes
  • (1) 10 lb Spool
