Lincoln Electric  |  SKU: ED037219

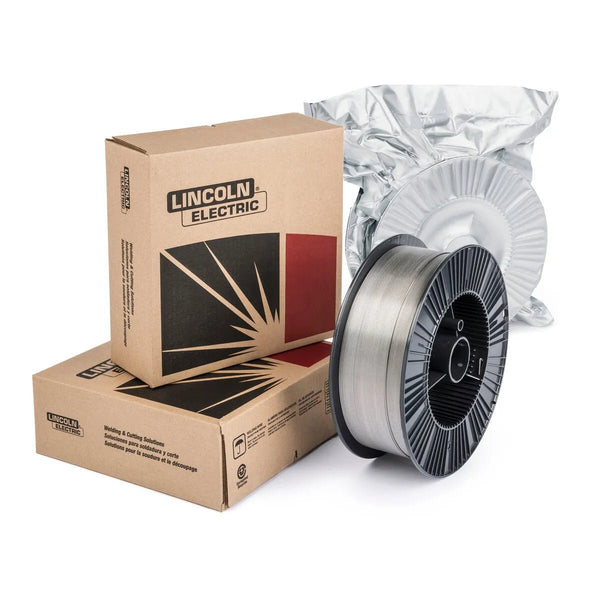

Lincoln ED037219 UltraCore 309L P Flux-Cored FCAW-G Welding Wire, 0.045 in, 10 lb Spool

$170.00
Smooth arc action with minimal spatter reduces post-weld cleaning
Warranty: 1 Year
AWS / Classification: AWS A5.22: E309LT1-1, AWS A5.22: E309LT1-4

Financing / Leasing Available

Welding Equipment And Industrial Supplies Financing

Welding Mart has partnered with Clicklease to provide industry-leading welding equipment for a low monthly payment customized to fit your budget. Our welder financing services allow professionals to outfit their shop with the right welding machines and systems to serve customers. Whether you need a new MIG welder, a rental TIG welder, a virtual welding training simulator or something else, rent-to-own welders from leading brands such as Lincoln Electric and Miller are a great solution.

It's never been easier to afford the equipment you need to grow your business.
Apply in just four minutes and get real approval in seconds - there's no hard credit pull and no documents are needed.

Benefits of Lease-to-Own Welders

A welding machine rental is great for short-term and long-term business needs. Welder leases and rentals let companies stay on top of the latest welding technology without draining their operating budget by paying upfront, in full for new machines. At the end of the lease period, you can either purchase the welding equipment outright or return it to WeldingMart. You can also buy the equipment anytime within the first year of your lease - see below for more details.

Welder rentals can also have tax benefits. In many cases, the payments you make when you lease or finance a welding machine for business or educational purposes are tax-deductible. This frees up even more resources to get the equipment, supplies and personnel that welding businesses need.




More Information

Welding machine financing is available 24/7 so you can apply whenever it's convenient for you. It will only take about four minutes of your time.

Once approved, you'll have the option to select the term that best fits your budget and, if approved for more than you request, our calculator makes it easy to see how your payments change for any additional items you add to your lease. eDocs are available immediately, allowing you to order your new gear within minutes.

Have additional questions? Contact us to speak with a member of the WeldingMart team.

DETAILS

Lincoln ED037219 UltraCore 309L P Flux-Cored FCAW-G Welding Wire, 0.045 in, 10 lb Spool

ULTRACORE® 309L P provides polished weld bead appearance, smooth arc action with minimal spatter reduces post-weld cleaning and delivers steady consistent wire feeding during welding operations.

Features

  • Precision layer wound winding delivers steady spool payoff and more consistent feeding
  • Smooth arc action with minimal spatter reduces post-weld cleaning
  • Polished weld bead appearance reduces post-weld brushing
  • Vacuum sealed foil packaging to keep moisture out


Lincoln ED037219 UltraCore 309L P Flux-Cored FCAW-G Welding Wire, 0.045 in, 10 lb Spool

ULTRACORE® 309L P provides polished weld bead appearance, smooth arc action with minimal spatter reduces post-weld cleaning and delivers steady consistent wire feeding during welding operations.

Features

  • Precision layer wound winding delivers steady spool payoff and more consistent feeding
  • Smooth arc action with minimal spatter reduces post-weld cleaning
  • Polished weld bead appearance reduces post-weld brushing
  • Vacuum sealed foil packaging to keep moisture out


Includes
What's Included
  • (1) 10 lb Spool

Specifications
CONFORMANCE
CONFORMANCES SPECIFICATION CLASSIFICATION
AWS AWS A5.22 E309LT1-1, E309LT1-4
ABS AWS A5.22 E309LT1-1, E309LT1-4
CWB AWS A5.22 E309LT1-1, E309LT1-4
MECHANICAL PROPERTIES
Classification Shielding Gas Tensile Strength, MPa (ksi) Elongation, % Longitudinal Face Bend
E309LT1-1 Requirement 100% CO2 520 (75) min. 30 min. No opening in excess of 1/8 inch
E309LT1-4 Requirement 75-80% Ar, balance CO2 520 (75) min. 30 min. No opening in excess of 1/8 inch
Typical Result, As-welded 100% CO2 530 (77) 45 Passed
Typical Result, As-welded 75% Ar, 25% CO2 550 (80) 49 Passed
DEPOSIT COMPOSITION
Classification Shielding Gas %C %Cr %Cu %Mn %Mo %N %Ni %P %S %Si Ferrite Number (per AWS A4.2)
E309LT1-1 Requirement 100% CO2 0.04 max. 22.0 - 25.0 0.75 max. 0.5 - 2.5 0.75 max. Info. Only 12.0 - 14.0 0.04 max. 0.03 max. 1.0 max. Info. Only
E309LT1-4 Requirement 75-80% Ar, balance CO2 0.04 max. 22.0 - 25.0 0.75 max. 0.5 - 2.5 0.75 max. Info. Only 12.0 - 14.0 0.04 max. 0.03 max. 1.0 max. Info. Only
Typical Result 100% CO2 0.04 23.5 0.07 0.9 0.05 0.03 12.8 0.02 0.01 0.7 16
Typical Result 75% Ar, 25% CO2 0.04 23.8 0.07 0.8 0.05 0.03 12.9 0.02 0.01 0.8 18
TYPICAL OPERATING PROCEDURES
Diameter Shielding Gas Polarity CTWD, mm (in.)⁽¹⁾ Wire Feed Speed, m/min (in/min) Voltage, volts Approx. Current, amps Melt-off Rate, kg/hr (lb/hr) Deposition Rate, kg/hr (lb/hr) Efficiency, %
0.045 in (1.1 mm) 75% Ar / 25% CO2 DC+ 19 (3/4) 5.1 (200) 22-24 130 2.1 (4.6) 1.7 (3.8) 82.6
0.045 in (1.1 mm) 75% Ar / 25% CO2 DC+ 19 (3/4) 8.4 (330) 24-26 180 3.4 (7.4) 2.8 (6.1) 82.4
0.045 in (1.1 mm) 75% Ar / 25% CO2 DC+ 19 (3/4) 11.2 (440) 26-28 220 4.5 (10) 3.7 (8.1) 81
1/16 in (1.6 mm) 75% Ar / 25% CO2 DC+ 25 (1) 3.6 (140) 22-24 150 2.5 (5.6) 2.2 (4.8) 85.7
1/16 in (1.6 mm) 75% Ar / 25% CO2 DC+ 25 (1) 5.0 (195) 24-26 190 3.6 (7.9) 3.0 (6.7) 84.8
1/16 in (1.6 mm) 75% Ar / 25% CO2 DC+ 25 (1) 7.1 (280) 25-27 220 5.2 (11.4) 4.4 (9.6) 84.2
LECO Diameter 0.045 in (1.1 mm)
LECO Package 10 lb Spool
Diameter (in) 0.045
