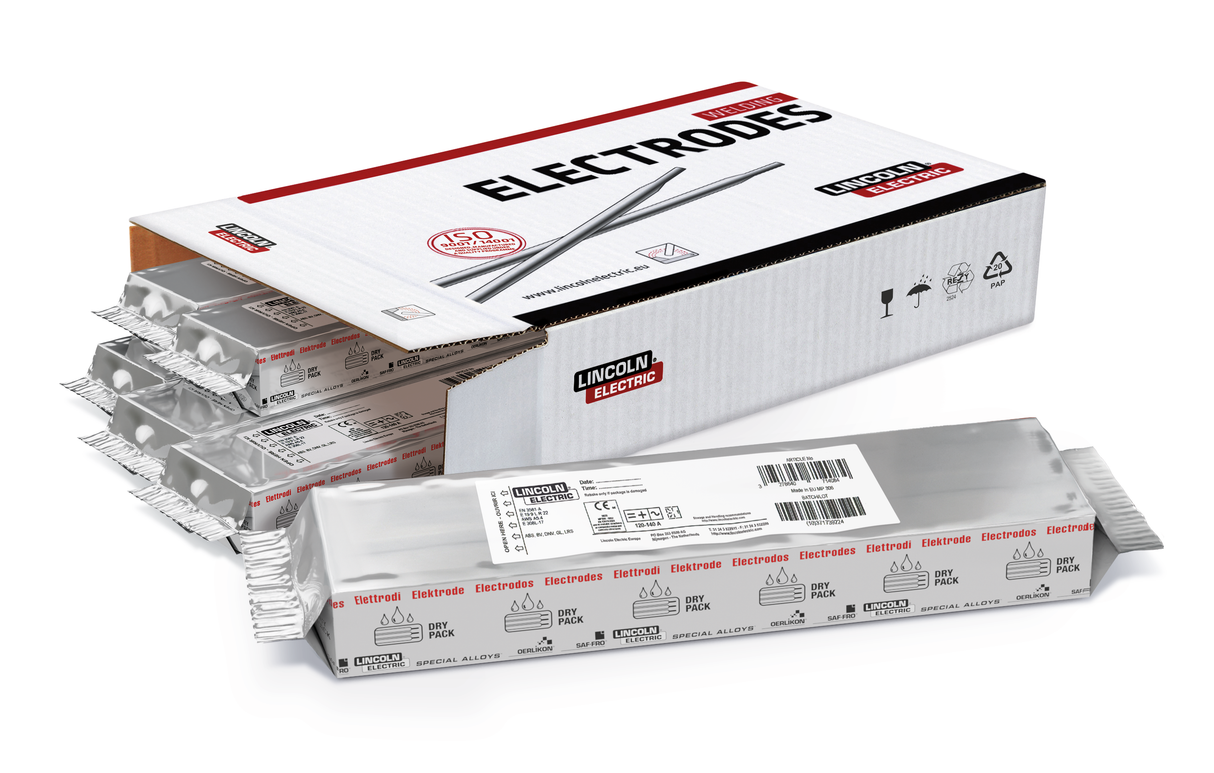

Lincoln ED0372209 Pipeliner 16P Stick SMAW Welding Rod 3/32 14in 4.5 lb Vacuum Pack 6 Pack Carton

SKU: ED0372209
$237.60 $291.00
Lincoln Elite Dealer
Free Shipping over $250
Lowest Price
Pipeliner 16P is a mild steel, low hydrogen stick electrode that meets AWS E7016-1 H4 that is typically used in root pass welding of up to X100 grade pipe.
AWS / Classification: E7016-H4, E7016-1 H4
Overview

Pipeliner 16P is a mild steel, low hydrogen stick electrode that is designed for hot, fill and cap pass welding up to X60. Now packaged in a 4.5 lb (2.1 kg) vacuum-sealed pack, sold in a 6-pack master carton. The vacuum packaging protects electrode integrity and improves storage and handling convenience. Product performance and AWS classification remain unchanged.

Features

• Hot, fill and cap pass welding up to X60
• Low hydrogen, vertical up capability on X60 grade pipe
• Q2 Lot Certificates showing actual deposit chemistry and mechanical properties available online
• DC- (DCEN) is the recommended polarity for root pass welding on pipe

Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.1 E7016-1 H4, E7016-H4
ABS AWS A5.1 E7016-H4
CWB AWS A5.1 E4916-H4
Classification Yield Strength @ 0.2% Offset, MPa (ksi)Tensile Strength, MPa (ksi)Elongation, %Charpy V-Notch, J (ft-lbs) @ -40°C (-40°F)Charpy V-Notch, J (ft-lbs) @ -45°C (-50°F)
E7016-1 H4 Requirement 400 (58) min.480 (70) min.22 min.27 (20) min.
Typical Result, As-welded 420-550 (61-79)510-640 (74-93)25-4127-186 (20-137)29-168 (22-124)
Classification %C%Cr%Mn%Mo%Ni%P%S%Si%V%Mn+Ni+Cr+Mo+VDiffusible Hydrogen, mL/100g Weld Metal1800F H2O - As received
E7016-1 H4 Requirement 0.15 max.0.20 max.1.60 max.0.30 max.0.30 max.0.035 max.0.035 max.0.75 max.0.08 max.1.75 max.4 max.0.6 max.
Typical Result 0.04-0.080.02-0.051.03-1.470.02 max.0.01-0.040.008-0.0140.003-0.0120.32-0.570.02 max.1.09-1.481-40.3 max.
Diameter Polarity⁽¹⁾Current, Amps
2.5 mm (3/32 in) DC±55-105
2.5 mm (3/32 in) AC60-115
3.2 mm (1/8 in) DC±75-135
3.2 mm (1/8 in) AC80-150
4.0 mm (5/32 in) DC±120-170
4.0 mm (5/32 in) AC120-185
Note
⁽¹⁾ Preferred polarity is listed first.
DC- for root pass on pipe; DC± for general welding
LECO Diameter 2.5 x 350 mm (3/32 x 14 in)
LECO Package (3) 10 lb Easy Open Can
Diameter (in) 3/32
Length (in) 14
