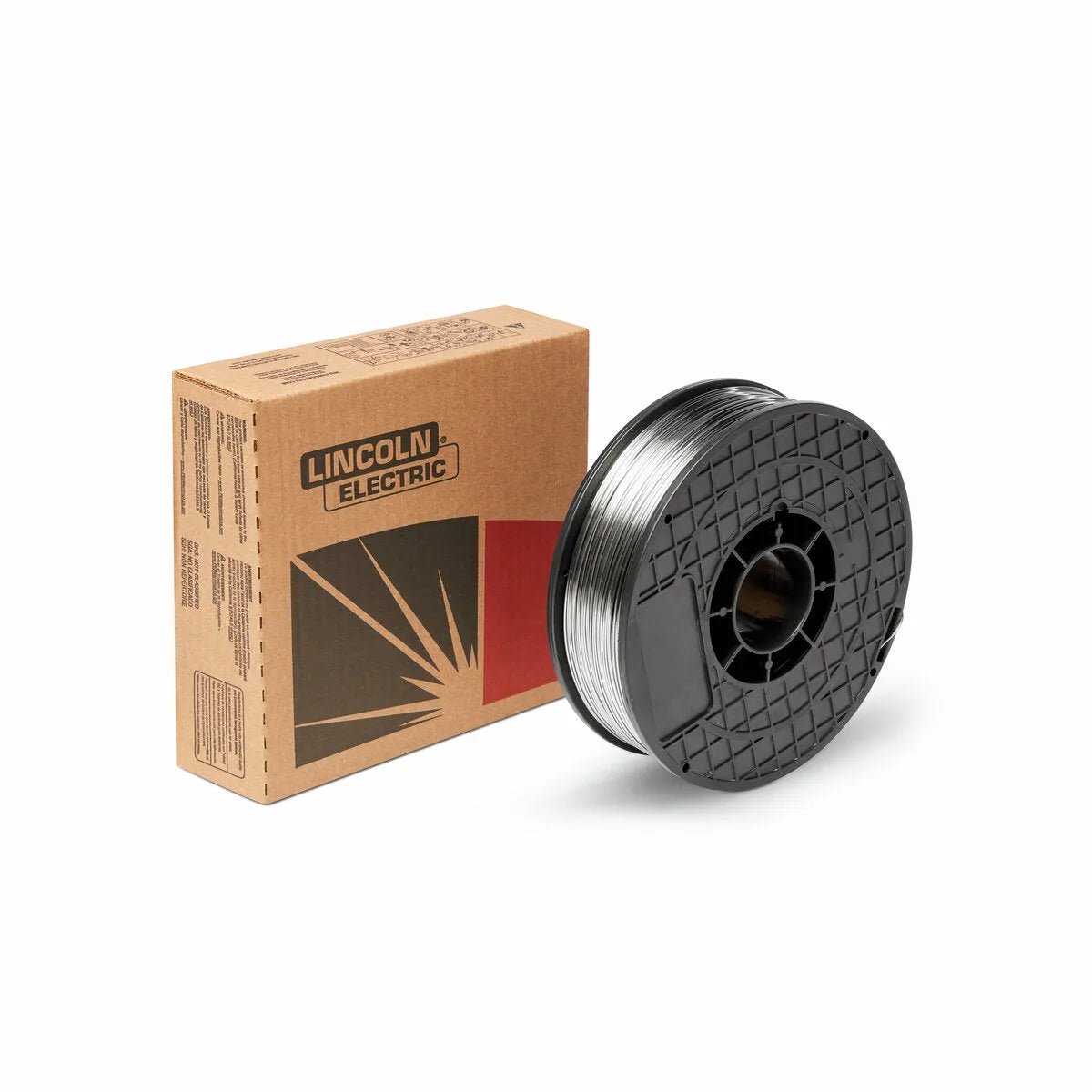

Lincoln ED037297 Lincore 57-G Metal-Cored GMAW-C Welding Wire, 1/16 in, 10 lb Spool

SKU: ED037297
$151.61 $156.10
Lincoln Elite Dealer
Free Shipping over $250
Lowest Price
Lincore® 55-G Metal-Cored Wire ideal for carbon steel and low alloy steel, produces a deposit which resists metal-to-metal wear and mild abrasion. Unlimited layers with proper preheat and interpass temperatures and procedures (Metal-to-Metal)
Overview

LINCORE 57-G 1/16 inch welding wire provides quality resistance and moderate impact resistance when tempered with proper preheat and interpass temperature, exceeds typical application requirements in regeneration, repairs in mining and agricultural segments.

Features
  • Designed to meet the weldability and mechanical property needs of mining equipment suppliers and rebuilders
  • Maintain resistance to check cracking with proper preheat and interpass temperature
  • The hard martensitic matrix provides good metal-to-metal wear resistance and moderate impact resistance when tempered
  • Can be used with the bulk tungsten carbide process for additional abrasion resistance and exceptional wear life
Specifications
FeatureValue
Classification Shielding GasNumber of layerHardness Rockwell CMass Loss (G65)
Typical Result 98% Ar, 2% O22 Layers59-610.36
Typical Result 75% Ar, 25% CO22 Layers56-590.36
Classification Number of layer%C%Cr%Mn%Mo%Nb%Si%V
Typical Result 2 Layers0.9-1.17.6-10.01.2-1.60.5-0.61.3-1.80.8-1.21.4-1.9
Diameter Shielding GasPolarityWire Feed Speed, m/min (in/min)Voltage, voltsApprox. Current, ampsDeposition Rate, kg/hr (lb/hr)
1/16 in (1.6 mm) 75% Ar / 25% CO2DC+3.8 (150)282402.6 (5.8)
1/16 in (1.6 mm) 75% Ar / 25% CO2DC+6.4 (250)303404.7 (10.4)
1/16 in (1.6 mm) 75% Ar / 25% CO2DC+8.9 (350)324206.8 (15.1)
1/16 in (1.6 mm) 90% Ar / 10% CO2DC+3.8 (150)262302.7 (6.0)
1/16 in (1.6 mm) 90% Ar / 10% CO2DC+6.4 (250)273154.9 (10.7)
1/16 in (1.6 mm) 90% Ar / 10% CO2DC+8.9 (350)294007.0 (15.4)
1/16 in (1.6 mm) 98% Ar / 2% O2DC+3.8 (150)232202.9 (6.4)
1/16 in (1.6 mm) 98% Ar / 2% O2DC+6.4 (250)263205.0 (11.0)
1/16 in (1.6 mm) 98% Ar / 2% O2DC+8.9 (350)284157.1 (15.7)
LECO Diameter 1/16 in (1.6 mm)
LECO Package 10 lb Spool
Diameter (in) 1/16
Downloads
Includes
  • (1) 10 lb Spool
