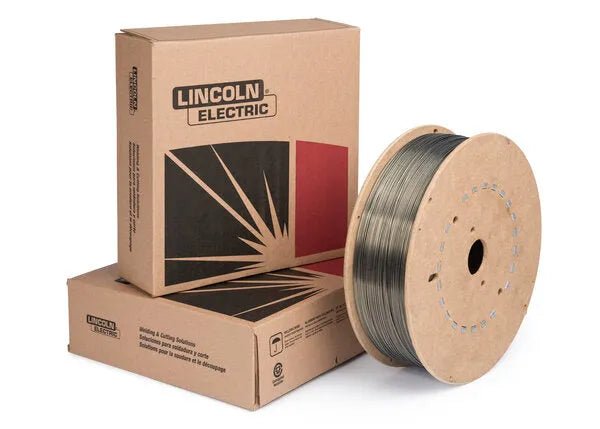

Lincoln ED037486 UltraCore HD-C Flux-Cored FCAW-G Welding Wire, 0.052 in, 33 lb Spool

SKU: ED037486
$142.96 $175.23
Financing / Leasing Available

Welding Equipment & Industrial Supply Financing

WeldingMart has partnered with Clicklease to offer fast, flexible financing for welding equipment and industrial supplies. Get the equipment you need with affordable monthly payments tailored to your budget.

Whether you're purchasing a new MIG welder, TIG welder, engine-driven welder, or welding accessories, our financing solutions help you equip your shop without large upfront costs. We offer lease-to-own options on trusted brands like Lincoln Electric, Miller Electric, and more.

Apply in minutes and get a decision in seconds:

  • No hard credit check
  • No lengthy paperwork
  • Fast approvals

Why Choose Lease-to-Own Welding Equipment?

Lease-to-own financing gives you the flexibility to grow your business while preserving cash flow.

Key benefits include:

  • Low upfront cost – Start using equipment without a large initial investment
  • Flexible terms – Choose payment plans that fit your budget
  • Access to latest technology – Stay competitive with modern welding equipment
  • Ownership options – Buy the equipment, upgrade, or return it at the end of the lease

You also have the option to purchase your equipment early, including within the first 12 months.


Tax Advantages

In many cases, lease payments for business-use equipment may be tax-deductible. This can reduce your overall cost and free up capital for additional tools, supplies, or labor.

(Consult your tax advisor for details.)


Apply in Minutes

Financing is available 24/7, so you can apply whenever it’s convenient.

  • Application takes about 4 minutes
  • Instant decision in most cases
  • Immediate access to eDocs
  • Order your equipment right away

If approved for more than your initial request, you can easily adjust your financing to include additional items.


Need Help?

Have questions about financing or lease-to-own options?

Contact the WeldingMart team — we’re here to help you find the right solution for your business. 877-532-9353.



UltraCore® HD-C from Lincoln Electric is a mild steel, gas-shielded flux-cored wire designed for the shipbuilding industry.
AWS / Classification: E71T-9C-H8, E71T1-C1A2-CS1-H8

Overview

A high deposition, all position E71T1 gas-shielded flux-cored electrode. Designed with a fast-freezing slag to make it easy for the operator to weld at high deposition rates, even when welding out-of-position. Intended for use with 100%CO2 shielding gas.

Features
  • High Deposition Rates – increase weld deposition up to 10 lbs/hr out-of-position
  • Flat Bead Appearance – fast freezing slag for a flat bead shape and increased productivity in all positions, including vertical up
  • Wide Operating Range – operators can set the machine on a single setting and weld in all positions
  • Little or No Pre-Weld Clean up Required – weld over light rust, mill scale, and primer
  • Select packaging and diameters are available meeting Buy America & American Iron & Steel (AIS) standards.

Typical Applications

  • Shipbuilding
  • Structural Fabrication
  • General fabrication

Welding Positions

  • All

Shielding Gas

  • 100% CO2
Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.20E71T-1C-H8, E71T-9C-H8
AWS AWS A5.36E71T1-C1A2-CS1-H8
ABS ABS - Part 23YSA H10
CWB CSA W48E491T1-C1A2-CS1-H8 (E491T-1-H8), E491T1-C1A3-CS1-H8 (E491T-9-H8)
DNV-GL DNV - 2.9II YMS H10, III YMS H10
LR LR - Chapter 113YM H10, 3YS H10
Classification Shielding GasPolarityYield Strength @ 0.2% Offset, MPa (ksi)Tensile Strength, MPa (ksi)Elongation, %Charpy V-Notch, J (ft-lbs) @ -20°C (0°F)Charpy V-Notch, J (ft-lbs) @ -30°C (-20°F)
E71T-1C-H8 Requirement 100% CO2DC+400 (58) min.480-660 (70-95)22 min.27 (20) min.
E71T-9C-H8 Requirement 100% CO2DC+400 (58) min.480-660 (70-95)22 min.27 (20) min.
E71T1-C1A2-CS1-H8 Requirement 100% CO2DC+400 (58) min.480-660 (70-95)22 min.27 (20) min.
Typical Result, As-welded 100% CO2DC+510 (74)580-640 (84-93)2247-84 (35-62)31-115 (23-85)
Classification Shielding GasPolarity%B%C%Mn%P%S%SiDiffusible Hydrogen, mL/100g Weld Metal
E71T-1C-H8 Requirement 100% CO2DC+0.12 max.1.75 max.0.03 max.0.03 max.0.90 max.8.0 max.
E71T-9C-H8 Requirement 100% CO2DC+0.12 max.1.75 max.0.03 max.0.03 max.0.90 max.8.0 max.
E71T1-C1A2-CS1-H8 Requirement 100% CO2DC+0.12 max.1.75 max.0.030 max.0.030 max.0.90 max.8 max.
Typical Result 100% CO2DC+0.0033-0.0050.03-0.061.36-1.600.01-0.020.005-0.010.38-0.454.4-7.7
Diameter Shielding GasPolarityCTWD, mm (in.)⁽¹⁾Wire Feed Speed, m/min (in/min)Voltage, voltsApprox. Current, ampsMelt-off Rate, kg/hr (lb/hr)Deposition Rate, kg/hr (lb/hr)Efficiency, %
0.045 in (1.1 mm) 100% CO2DC+19-25 (3/4-1)4.4 (175)22-251451.8 (3.9)1.5 (3.4)85-87
0.045 in (1.1 mm) 100% CO2DC+19-25 (3/4-1)6.4 (250)23-281852.5 (5.6)2.2 (4.8)85-87
0.045 in (1.1 mm) 100% CO2DC+19-25 (3/4-1)7.6 (300)24-302153.1 (6.8)2.6 (5.8)85-87
0.045 in (1.1 mm) 100% CO2DC+19-25 (3/4-1)8.9 (350)25-312353.6 (7.9)3.1 (6.8)85-87
0.045 in (1.1 mm) 100% CO2DC+19-25 (3/4-1)10.2 (400)27-322554.1 (9.0)3.5 (7.8)85-87
0.045 in (1.1 mm) 100% CO2DC+19-25 (3/4-1)11.4 (450)28-332804.6 (10.1)4.0 (8.8)85-87
0.045 in (1.1 mm) 100% CO2DC+19-25 (3/4-1)12.7 (500)27-333005.1 (11.3)4.4 (9.8)85-87
0.045 in (1.1 mm) 100% CO2DC+19-25 (3/4-1)14.0 (550)28-333155.6 (12.4)4.9 (10.8)85-87
0.045 in (1.1 mm) 100% CO2DC+19-25 (3/4-1)15.2 (600)30-353356.1 (13.5)5.3 (11.7)85-87
0.052 in (1.3 mm) 100% CO2DC+19-25 (3/4-1)3.8 (150)22-251552.1 (4.7)1.7 (3.8)81-85
0.052 in (1.3 mm) 100% CO2DC+19-25 (3/4-1)5.1 (200)23-261902.9 (6.3)2.4 (5.2)81-85
0.052 in (1.3 mm) 100% CO2DC+19-25 (3/4-1)6.4 (250)23-272253.5 (7.8)3.0 (6.5)81-85
0.052 in (1.3 mm) 100% CO2DC+19-25 (3/4-1)7.6 (300)24-292654.3 (9.4)3.6 (7.9)81-85
0.052 in (1.3 mm) 100% CO2DC+19-25 (3/4-1)8.9 (350)26-302855.0 (11.0)4.2 (9.2)81-85
0.052 in (1.3 mm) 100% CO2DC+19-25 (3/4-1)9.5 (375)27-303105.3 (11.7)4.5 (9.9)81-85
0.052 in (1.3 mm) 100% CO2DC+19-25 (3/4-1)10.8 (425)28-323256.0 (13.3)5.1 (11.2)81-85
0.052 in (1.3 mm) 100% CO2DC+19-25 (3/4-1)12.1 (475)29-333456.8 (14.9)5.7 (12.6)81-85
0.052 in (1.3 mm) 100% CO2DC+19-25 (3/4-1)12.7 (500)30-343607.1 (15.6)6.0 (13.3)81-85
1/16 in (1.6 mm) 100% CO2DC+19-25 (3/4-1)3.8 (150)21-261952.9 (6.4)2.4 (5.3)84-87
1/16 in (1.6 mm) 100% CO2DC+19-25 (3/4-1)4.4 (175)22-272453.4 (7.5)2.9 (6.3)84-87
1/16 in (1.6 mm) 100% CO2DC+19-25 (3/4-1)5.1 (200)22-272603.9 (8.5)3.3 (7.2)84-87
1/16 in (1.6 mm) 100% CO2DC+19-25 (3/4-1)5.7 (225)23-282904.4 (9.6)3.7 (8.1)84-87
1/16 in (1.6 mm) 100% CO2DC+19-25 (3/4-1)6.4 (250)24-293104.8 (10.6)4.1 (9.1)84-87
1/16 in (1.6 mm) 100% CO2DC+19-25 (3/4-1)7.6 (300)25-303305.8 (12.7)4.9 (10.9)84-87
1/16 in (1.6 mm) 100% CO2DC+19-25 (3/4-1)8.3 (325)25-303656.3 (13.8)5.4 (11.9)84-87
1/16 in (1.6 mm) 100% CO2DC+19-25 (3/4-1)8.9 (350)26-303906.7 (14.8)5.8 (12.8)84-87
1/16 in (1.6 mm) 100% CO2DC+19-25 (3/4-1)10.2 (400)27-314057.7 (16.9)6.7 (14.7)84-87
Note
⁽¹⁾ To estimate ESO, subtract 1/4 in. (6.0 mm) from CTWD.
LECO Diameter 0.052 in (1.3 mm)
LECO Package 33 lb Spool
Diameter (in) 0.052
Downloads
Includes
  • (1) 33 lb Spool
