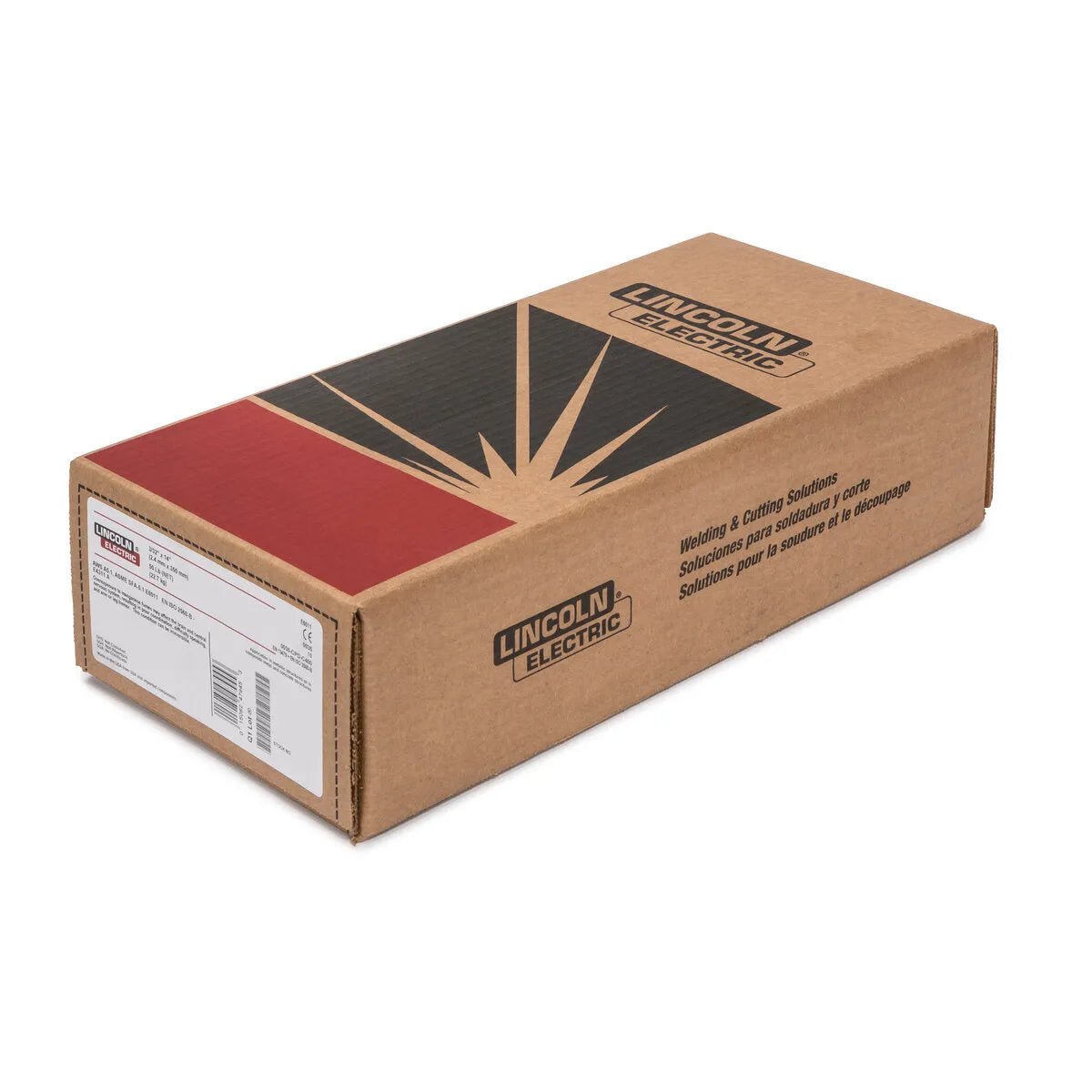

Lincoln Edm13181416 Murex 7014 Stick SMAW Welding Rod 3/16X14in 50 ...
Specifically designed for vertical down welding of sheet metal and ornamental iron
• Good restrike characteristics
• Smooth and transfer and good wetting and low penetration
• Operates on low amperages
• High deposition rates
• Excellent operator appeal
| Feature | Value |
|---|---|
| CONFORMANCES | SPECIFICATIONCLASSIFICATION |
| AWS | AWS A5.1E7014 |
| Classification | Yield Strength @ 0.2% Offset, MPa (ksi)Tensile Strength, MPa (ksi)Elongation, %Hardness Rockwell B |
| E7014 Requirement | 400 (58) min.480 (70) min.17 min. |
| Typical Result, As-welded | 410-470 (60-69)490-540 (71-78)18-2981-87 |
| Classification | %C%Cr%Mn%Mo%Ni%P%S%Si%V%Mn+Ni+Cr+Mo+V |
| E7014 Requirement | 0.15 max.0.20 max.1.25 max.0.30 max.0.30 max.0.035 max.0.035 max.0.90 max.0.08 max.1.50 max. |
| Typical Result | 0.05-0.080.02-0.040.44-0.670.01 max.0.01-0.040.010-0.0180.007-0.0120.16-0.470.01-0.020.49-0.74 |
| Diameter | Polarity⁽¹⁾Current, Amps |
| 3/32 in (2.4 mm) | AC80-100 |
| 3/32 in (2.4 mm) | DC±70-90 |
| 1/8 in (3.2 mm) | AC110-150 |
| 1/8 in (3.2 mm) | DC±100-140 |
| 5/32 in (4.0 mm) | AC140-190 |
| 5/32 in (4.0 mm) | DC±130-180 |
| 3/16 in (4.8 mm) | AC180-260 |
| 3/16 in (4.8 mm) | DC±160-240 |
| Note | |
| ⁽¹⁾ Preferred polarity is listed first. | |
| LECO Diameter | 3/16 x 14 in (4.8 x 350 mm) |
| LECO Package | 50 lb Carton |
| Diameter (in) | 3/16 |
| Length (in) | 14 |
