Lincoln Electric Lincolnweld Submerged Arc Wire 5/32" – 750 lb

SKU: EDS01154
$5,710.44 $5,767.50

Financing Options

•
As low as …/mo with.
•
Loading Affirm Estimate…
Lincoln Elite Dealer
Free Shipping
Lowest Price
Low Alloy Solid Electrode
AWS / Classification: EA3K
Overview

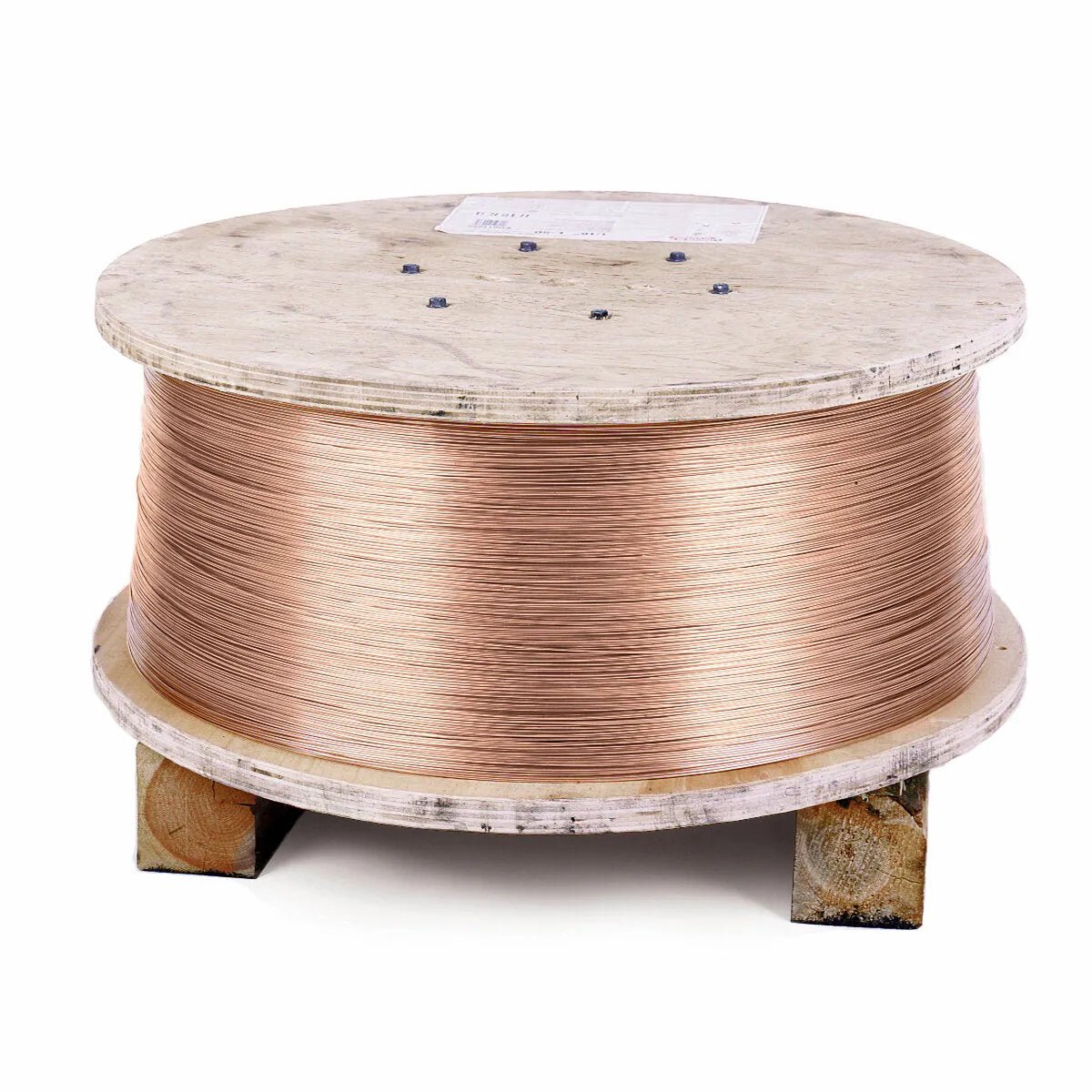

Lincoln EDS01154 Lincolnweld LA-90 Submerged Arc SAW Welding Wire, 5/32 in, 750 lb Speed Feed Reel

Features

  • A low carbon, high manganese, high silicon, 1/2% molybdenum special purpose wire
  • Recommended for seam welding of pipe and for the general welding of high strength plate
  • Actual (Type 3.1) certificates for each lot of wire showing chemical composition are available in the certificate center of lincolnelectric.com
Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.23EA3K
ISO ISO 26304-ASZ
MIL MIL-E-23765/2EMIL-80S-3
Classification %C%Mn%Mo%P%S%Si%Total Cu
EA3K Requirement 0.05 - 0.151.60 - 2.100.40 - 0.600.025 max.0.025 max.0.50 - 0.800.35 max.
Typical Result 0.101.790.450.0080.0070.640.11
LECO Diameter 5/32 in (4.0 mm)
LECO Package 750 lb Speed Feed® Reel
Diameter (in) 5/32
Includes
  • (1) 750 lb Speed Feed® Reel
