Lincoln EDS01162 SuperArc LA-100 MIG GMAW Mild Steel Welding Wire, 0.045 in, 500 lb Accu-Trak Drum

SKU: EDS01162
$5,207.56 $6,585.00

Financing Options

•
As low as …/mo with.
•
Loading Affirm Estimate…
Lincoln Elite Dealer
Free Shipping
Lowest Price
SuperArc® LA-100™ from Lincoln Electric is a premium copper coated, low alloy MIG welding wire designed for use on 100,000 psi (690 MPa) tensile base material.
AWS / Classification: ER100S-G, ER110S-G
Overview

SueprArc LA-100 .045 is our premium copper coated, low alloy MIG wire is designed for use on 100,000 psi (690 MPa) tensile base material and those materials that require a minimum yield strength of 82,000 psi (565 MPa).

Features
  • Capable of producing welds with 690 MPa (100 ksi) tensile strength
  • Excellent for welding quenched and tempered steels and HY-80 base materials
  • Supports short-circuiting, globular, axial spray and pulsed spray transfer
  • Copper coating provides superior arc-starting characteristics for long contact tip life

Typical Applications

  • HY-80 base material
  • ASTM A514, A543, A724 and A782 quenched and tempered plate
  • Various heat input conditions
  • Military low alloy applications
Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.28 ER100S-G, ER110S-G
ABS ABS - Part 2 4YQ550SA
CWB CWB AWS A5.28 ER69S-G (ER100S-G)
DB ISO 16834-A T 69 5 M21 Mn3Ni1,5Mo
MIL MIL-E-23765/2E MIL-100S-1
MIL T9074-BC-GIB-010/0200 MIL-100S-1
Classification Shielding GasPolarityYield Strength @ 0.2% Offset, MPa (ksi)Tensile Strength, MPa (ksi)Elongation, %Charpy V-Notch, J (ft-lbs) @ -50°C (-60°F)
ER110S-G Requirement Not SpecifiedNot Specified760 (110) min.
Typical Result, As-welded 95% Ar, 5% CO2DC+700 (102)770 (111)21153-175 (113-129)
Typical Result, As-welded 98% Ar, 2% O2DC+740 (107)780-800 (113-116)20149-239 (110-176)
Classification %Al%C%Cr%Mn%Mo%Ni%P%S%Si%Ti%V%Zr%Total Cu
ER110S-G Requirement 0.30 min. *0.20 min. *0.50 min. *
Typical Result 0.010.05-0.060.03-0.041.58-1.670.42-0.451.88-1.990.004-0.0090.003-0.0060.43-0.480.02-0.04<0.005<0.0010.08-0.12
Diameter Transfer ModeShielding GasPolarityCTWD, mm (in.)⁽¹⁾Wire Feed Speed, m/min (in/min)Voltage, voltsApprox. Current, ampsMelt-off Rate, kg/hr (lb/hr)
0.035 in (0.9 mm) Short Circuit Transfer75% Ar / 25% CO2DC+9-12 (3/8-1/2)2.5 (100)18800.7 (1.6)
0.035 in (0.9 mm) Short Circuit Transfer75% Ar / 25% CO2DC+9-12 (3/8-1/2)3.8 (150)191201.1 (2.4)
0.035 in (0.9 mm) Short Circuit Transfer75% Ar / 25% CO2DC+9-12 (3/8-1/2)6.4 (250)221751.8 (4.0)
0.035 in (0.9 mm) Spray Transfer90% Ar / 10% CO2DC+9-12 (3/8-1/2)9.5 (375)231952.7 (6.0)
0.035 in (0.9 mm) Spray Transfer90% Ar / 10% CO2DC+9-12 (3/8-1/2)12.7 (500)292303.6 (8.0)
0.035 in (0.9 mm) Spray Transfer90% Ar / 10% CO2DC+9-12 (3/8-1/2)15.2 (600)302754.4 (9.6)
0.045 in (1.1 mm) Pulsed Spray Transfer ⁽²⁾DC+12-19 (1/2-3/4)5.1 (200)19-211302.4 (5.4)
0.045 in (1.1 mm) Pulsed Spray Transfer ⁽²⁾DC+12-19 (1/2-3/4)6.4 (250)20-231403.0 (6.7)
0.045 in (1.1 mm) Spray Transfer98% Ar / 2% O2DC+12-19 (1/2-3/4)8.9 (350)272854.2 (9.2)
0.045 in (1.1 mm) Spray Transfer98% Ar / 2% O2DC+12-19 (1/2-3/4)12.1 (475)303355.7 (12.5)
0.045 in (1.1 mm) Spray Transfer98% Ar / 2% O2DC+12-19 (1/2-3/4)12.7 (500)303406.0 (13.2)
0.045 in (1.1 mm) Spray Transfer95% Ar / 5% CO2DC+12-19 (1/2-3/4)8.9 (350)272854.2 (9.2)
0.045 in (1.1 mm) Spray Transfer95% Ar / 5% CO2DC+12-19 (1/2-3/4)12.1 (475)303355.7 (12.5)
0.045 in (1.1 mm) Spray Transfer95% Ar / 5% CO2DC+12-19 (1/2-3/4)12.7 (500)303406.0 (13.2)
1/16 in (1.6 mm) Spray Transfer98% Ar / 2% O2DC+12-25 (1/2-1)5.3 (210)253254.8 (10.7)
1/16 in (1.6 mm) Spray Transfer98% Ar / 2% O2DC+12-25 (1/2-1)6.0 (235)273505.4 (12.0)
1/16 in (1.6 mm) Spray Transfer98% Ar / 2% O2DC+12-25 (1/2-1)7.4 (290)284306.7 (14.8)
1/16 in (1.6 mm) Spray Transfer95% Ar / 5% CO2DC+12-25 (1/2-1)5.3 (210)253254.8 (10.7)
1/16 in (1.6 mm) Spray Transfer95% Ar / 5% CO2DC+12-25 (1/2-1)6.0 (235)273505.4 (12.0)
1/16 in (1.6 mm) Spray Transfer95% Ar / 5% CO2DC+12-25 (1/2-1)7.4 (290)284306.7 (14.8)
Note
* To meet the requirements of a "G" classification, the chemical composition of the eletrode must meet the minimum requirement for one or more of
⁽¹⁾ CTWD (Contact Tip to Work Distance). Subtract 1/4 in (6.4 mm) to calculate Electrical Stickout.
⁽²⁾ Procedures in this area are for pulse MIG mode for welding in the vertical up and overhead welding positions. Actual results are dependent on joint, material thickness, as well as wave shape and pulse frequency.
LECO Diameter 0.045 in (1.1 mm)

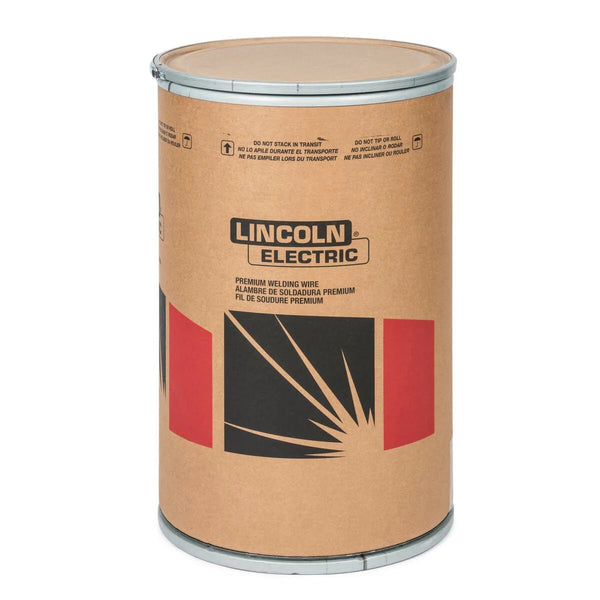

LECO Package 500 lb Accu-Trak® Drum
Diameter (in) 0.045
Downloads
Includes
  • (1) 500 lb Accu-Trak® Drum
