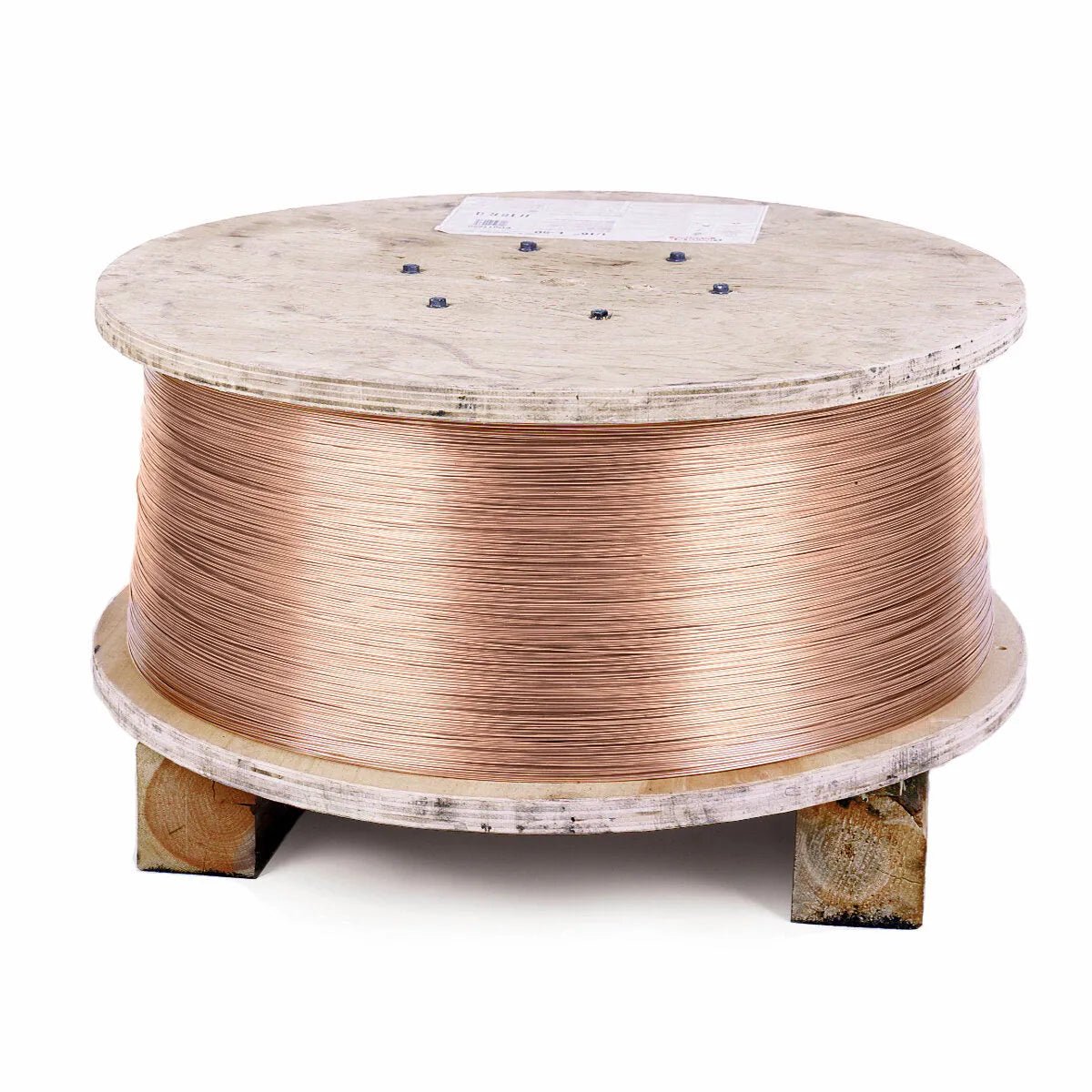

Lincoln Electric Lincolnweld Submerged Arc Wire 5/64" – 1000 lb

Q: What process is the Lincoln EDS01631 Lincolnweld L-56 Submerged Arc SAW Welding Wire, 5/64 in, 1000 lb Speed Feed Reel designed for?

The Lincoln EDS01631 Lincolnweld L-56 Submerged Arc SAW Welding Wire, 5/64 in, 1000 lb Speed Feed Reel is used in Submerged Arc Welding (SAW), a high-deposition welding process where the arc is shielded by a blanket of granular flux rather than shielding gas. SAW is used primarily in the flat and horizontal positions for welding structural plate, pressure vessels, pipelines, ship hulls, and heavy fabrication. It produces deep penetration, high deposition rates, and excellent weld quality with minimal spatter.

Q: What is the AWS classification of the Lincoln EDS01631 Lincolnweld L-56 Submerged Arc SAW Welding Wire, 5/64 in, 1000 lb Speed Feed Reel?

The Lincoln EDS01631 Lincolnweld L-56 Submerged Arc SAW Welding Wire, 5/64 in, 1000 lb Speed Feed Reel carries AWS EH11K classification. In SAW, the wire/flux combination determines the weld deposit chemistry and mechanical properties — the wire class and flux class are always specified together. Always verify the flux is approved for use with this wire in your Welding Procedure Specification (WPS).

Q: What diameter is the Lincoln EDS01631 Lincolnweld L-56 Submerged Arc SAW Welding Wire, 5/64 in, 1000 lb Speed Feed Reel available in?

Common SAW wire diameters range from 5/64 in to 7/32 in. Smaller diameter wire (5/64, 3/32 in) suits lower heat-input applications, tight-groove work, and thinner plate. Larger diameter wire (5/32, 3/16, 7/32 in) maximizes deposition rate for heavy plate and multi-pass structural welds. Consult the wire manufacturer's parameter chart for amperage, voltage, and travel speed by diameter.

Q: What spool or coil size is the Lincoln EDS01631 Lincolnweld L-56 Submerged Arc SAW Welding Wire, 5/64 in, 1000 lb Speed Feed Reel available in?

SAW wire is supplied in various coil weights from 25 lb coils to 600 lb reels, depending on the wire diameter and supplier. Heavy production SAW systems use large coils (300–600 lb) to minimize wire change-over time. Ensure your SAW wire feeder head is configured for the specific coil diameter and weight of the product ordered.

Q: How should I store the Lincoln EDS01631 Lincolnweld L-56 Submerged Arc SAW Welding Wire, 5/64 in, 1000 lb Speed Feed Reel to maintain weld quality?

Store SAW wire in a clean, dry environment. Surface rust on SAW wire can introduce hydrogen into the weld deposit, increasing the risk of porosity and cold cracking in susceptible base materials. Lightly rusted wire can sometimes be cleaned with a dry cloth, but wire with heavy surface oxidation should be discarded. Keep wire coils sealed in their original packaging until ready for use and store at controlled room temperature with low humidity.

SKU: EDS01631

$11,264.41 ~~$12,260.00~~

Financing Options

•

As low as …/mo with.

•

Loading Affirm Estimate…

Lincoln Elite Dealer

Free Shipping

Lowest Price

Mild Steel Solid Electrode

AWS / Classification: EH11K

Overview

Lincoln EDS01631 Lincolnweld L-56 Submerged Arc SAW Welding Wire, 5/64 in, 1000 lb Speed Feed Reel

Features

- A low carbon, high manganese, very high silicon wire
- Can be used with Lincolnweld® 800 series fluxes for welds requiring 480 MPa (70 ksi) tensile strength in stress relieved conditions
- Actual (Type 3.1) certificates for each lot of wire showing chemical composition are available in the certificate center of lincolnelectric.com

Specifications

Feature	Value
CONFORMANCES	SPECIFICATIONCLASSIFICATION
AWS	AWS A5.17EH11K
AWS	AWS A5.23EH11K
ISO	ISO 14171-BSU31
MIL	MIL-E-23765/1DMIL-70S-6
MIL	MIL-E-23765/1EMIL-70S-6
Classification	%C%Mn%P%S%Si%Total Cu
EH11K Requirement	0.06 - 0.151.40 - 1.850.030 max.0.030 max.0.80 - 1.150.35 max.
SU31 Requirement	0.06 - 0.151.40 - 1.850.030 max.0.030 max.0.80 - 1.150.40 max.
Typical Result	0.101.650.0140.0000.850.10
LECO Diameter	5/64 in (2.0 mm)
LECO Package	1000 lb Speed Feed® Reel
Diameter (in)	5/64

Includes

(1) 1000 lb Speed Feed® Reel
