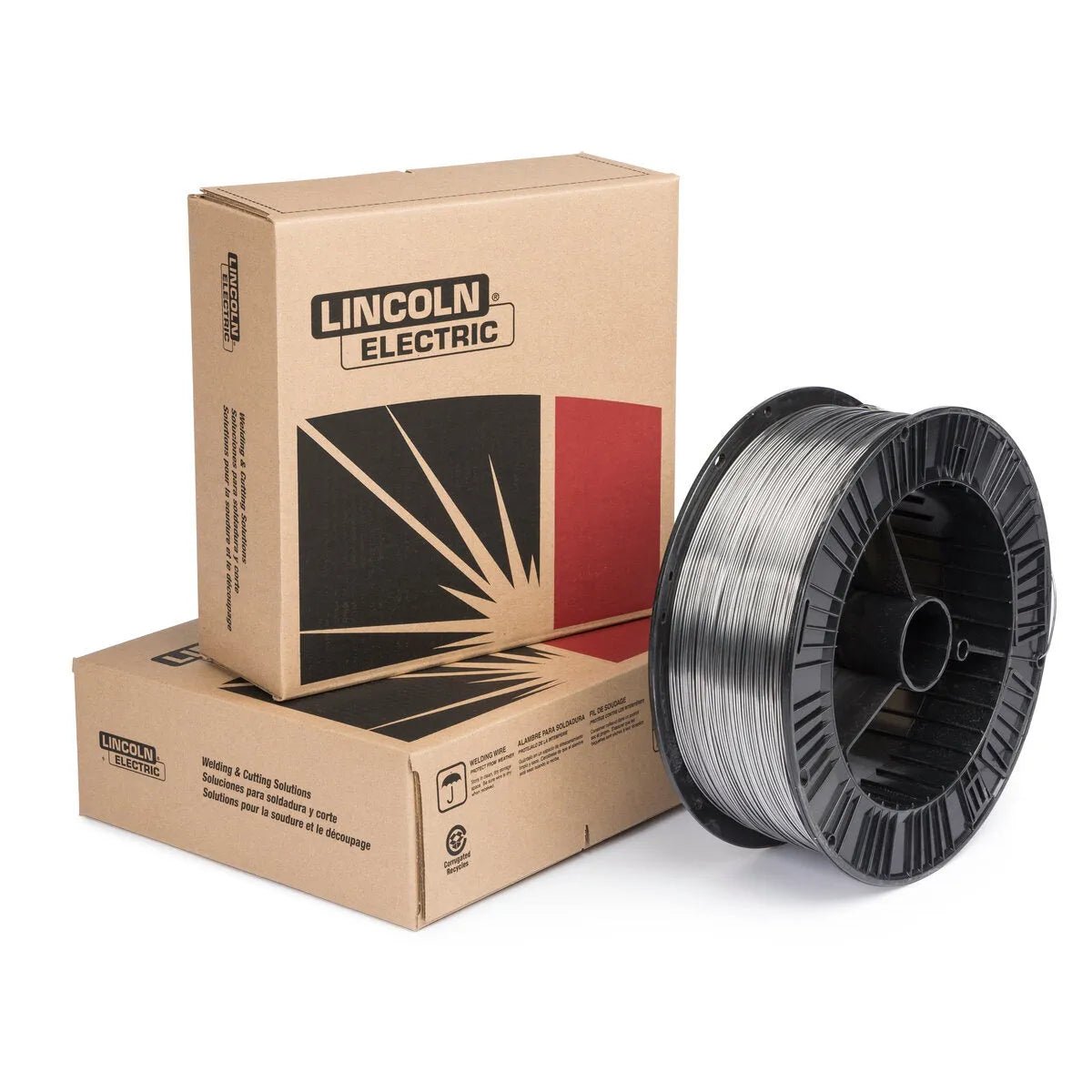

Lincoln Electric Innershield NR-152 Flux-Core Wire 0.045" – 25 lb

SKU: EDS01702
$230.96 $250.25
Lincoln Elite Dealer
Free Shipping over $250
Lowest Price
Innershield® NR®-152 from Lincoln Electric is designed for high speed welding of specialty coated steels.
AWS / Classification: E71T-14, E71T14S
Overview

Designed for high speed welding of specialty coated steels. Recommended for single pass welding on material thicknesses from 0.8 to 4.8 mm (0.030 to 3/16 in).

Features
  • Designed for high speed welding of specially coated steels
  • Soft, consistent arc
  • Porosity resistant
  • Excellent overlapping capabilities
  • Ideal for robotic applications
  • Warning: NR-5 is NOT recommended for welding multiple passes
  • Notes: The preferred drag angle is 15°, however, NR-152 is capable of welding at zero drag angle, facilitating easy fixturing in automatic applications

Typical Applications

  • Single pass welding on thicknesses from 0.8 mm - 4.8 mm (0.030 - 3/16 in)
  • Spot or short intermittent welds
  • Continuous welding on galvanized or zinc coated carbon steel
  • Automotive
  • Transportation

Welding Positions

  • All
Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.20E71T-14
AWS AWS A5.36E71T14S
Classification PolarityTransverse Tensile Strength, MPa (ksi)Longitudinal Face Bend
E71T-14 Requirement DC-480 (70) min.No opening in excess of 1/8 inch
E71T14S Requirement DC-480 (70) min.No opening in excess of 1/8 inch
Typical Result, As-welded DC-530-570 (76-83)Passed
Classification %Al%C%Mn%P%S%Si
Typical Result 2.0-3.90.341.130.0160.0030.27
Diameter PolarityCTWD, mm (in.)Wire Feed Speed, m/min (in/min)Voltage, voltsApprox. Current, ampsMelt-off Rate, kg/hr (lb/hr)Deposition Rate, kg/hr (lb/hr)Efficiency, %
1/16 in (1.6 mm) DC-16 (5/8)0.8 (30)13-14900.5 (1.3)0.5 (1.2)92
1/16 in (1.6 mm) DC-16 (5/8)1.0 (40)14-151150.8 (1.8)0.7 (1.6)88
1/16 in (1.6 mm) DC-16 (5/8)1.3 (50)15-161400.9 (2.2)0.9 (2.0)90
1/16 in (1.6 mm) DC-16 (5/8)1.8 (70)16-171851.4 (3.1)1.3 (2.8)90
1/16 in (1.6 mm) DC-16 (5/8)2.8 (110)19-202652.1 (4.8)2.0 (4.4)91
0.068 in (1.7 mm) DC-19 (3/4)0.8 (30)13-14680.7 (1.6)0.6 (1.4)87
0.068 in (1.7 mm) DC-19 (3/4)1.0 (40)13-14950.9 (2.2)0.9 (1.9)86
0.068 in (1.7 mm) DC-19 (3/4)1.3 (50)14-151201.2 (2.7)1.1 (2.4)88
0.068 in (1.7 mm) DC-19 (3/4)1.5 (60)15-161451.4 (3.3)1.3 (2.9)87
0.068 in (1.7 mm) DC-19 (3/4)2.0 (80)16-171901.9 (4.4)1.8 (3.9)88
0.068 in (1.7 mm) DC-19 (3/4)2.8 (110)20-212402.7 (6.0)2.4 (5.4)90
LECO Diameter 0.045 in (1.1 mm)
LECO Package 25 lb Spool
Diameter (in) 0.045
Downloads
Includes
  • (1) 25 lb Spool
