Lincoln Electric Lincolnweld 865 Submerged Arc Wire – 50 lb

SKU: EDS27857
$134.86 $143.50
Lincoln Elite Dealer
Free Shipping over $250
Lowest Price
800 Series Neutral Flux
Overview

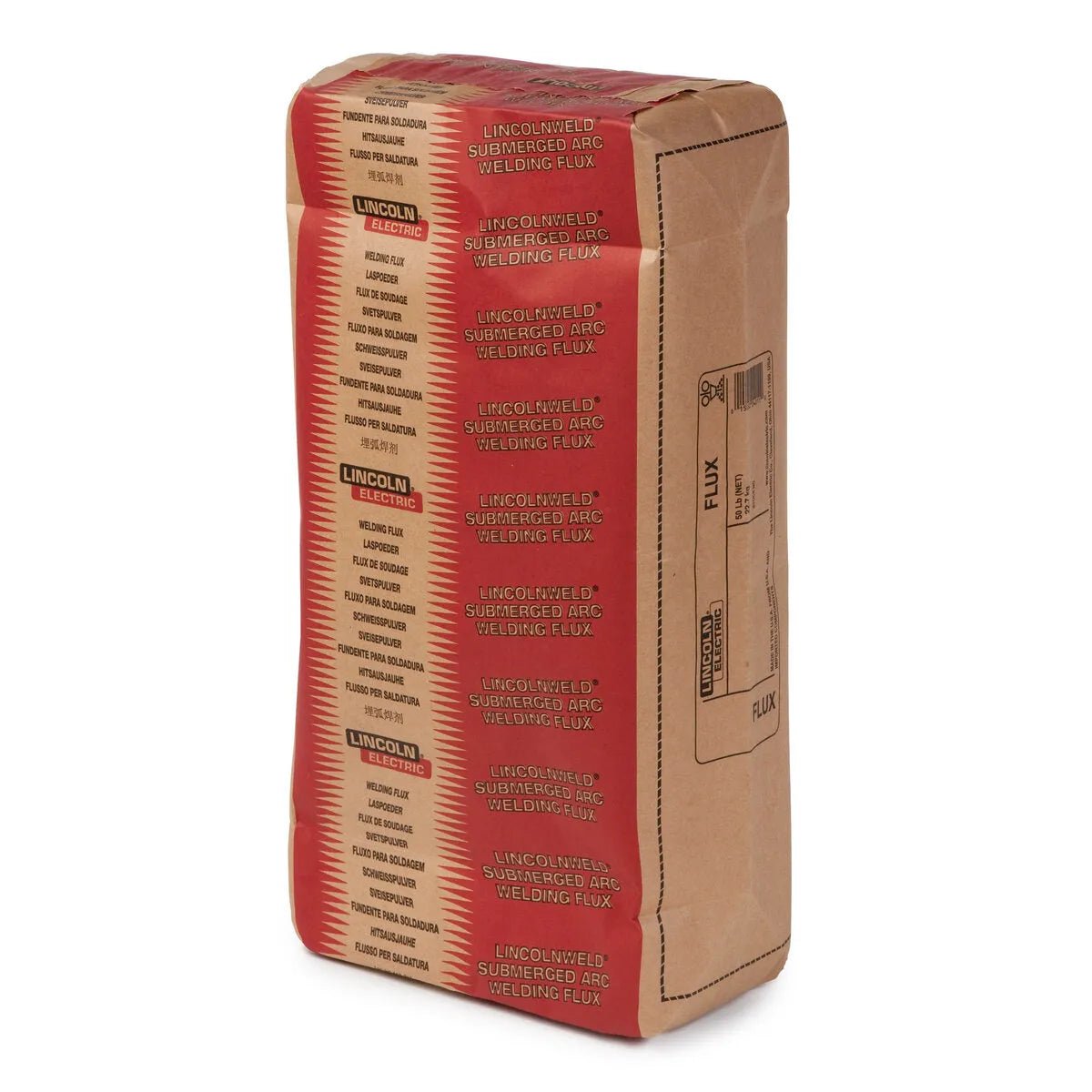

Lincoln EDS27857 Lincolnweld 865 Submerged Arc SAW Flux, 50 lb Bag

Features

• Industry standard for submerged arc welding applications
• Excellent operating characteristics in a variety of general welding applications
• Capable of producing weld deposits with impact toughness exceeding 27 J (20 ft•lbf) at -40°C (-40°F) with Lincolnweld L-61
• Actual (Type 3.1) certificates for each lot of flux showing chemical composition, particle size and moisture level are available in the certificate center of lincolnelectric.com

Specifications
FeatureValue
Wire ClassificationPostweld Heat TreatmentYield Strength @ 0.2% Offset, MPa (ksi)Tensile Strength, MPa (ksi)Elongation, %Charpy V-Notch, J (ft-lbs) @ -30°C (-20°F)Charpy V-Notch, J (ft-lbs) @ -45°C (-50°F)
Lincolnweld® L-50® F7A2-EM13K-H8As-welded510 (74)610 (88)2492 (68)
Lincolnweld® L-50® F7P5-EM13K-H81 hour @ 620°C (1150°F)460 (66)580 (84)2966 (49)
Lincolnweld® L-61® F7A2-EM12K-H8As-welded460 (67)560 (81)27144 (106)
Lincolnweld® L-61® F7P2-EM12K-H81 hour @ 620°C (1150°F)420 (61)540 (78)30180 (133)
Lincolnweld® LA-71 F7A2-EM14K-H8As-welded530 (77)630 (91)28157 (116)
Lincolnweld® LA-75 F8A2-ENi1K-G-H8As-welded520 (76)620 (90)25121 (89)
Lincolnweld® LA-75 F8P2-ENi1K-G-H81 hour @ 620°C (1150°F)490 (71)610 (89)2887 (64)
Wire Classification%C%Cr%Cu%Mn%Mo%Ni%P%S%Si%TiDiffusible Hydrogen, mL/100g Weld Metal
Lincolnweld® L-50® F7A2-EM13K-H80.060.121.350.0140.0080.625
Lincolnweld® L-50® F7P5-EM13K-H80.060.091.410.0140.0080.665
Lincolnweld® L-61® F7A2-EM12K-H80.060.051.260.0140.0070.554
Lincolnweld® L-61® F7P2-EM12K-H80.060.051.210.0150.0090.524
Lincolnweld® LA-71 F7A2-EM14K-H80.070.111.330.0120.0050.690.076
Lincolnweld® LA-75 F8A2-ENi1K-G-H80.050.030.081.360.000.800.0120.0080.826
Lincolnweld® LA-75 F8P2-ENi1K-G-H80.060.040.091.290.000.820.0120.0070.796
Classification %Al2O3%CaF2%MgO%MnO%Na2O%SiO2%TiO2%Metal Alloys
Typical Result 3519154211113
LECO Diameter Flux
LECO Package 50 lb Bag
Includes
  • (1) 50 lb Bag
