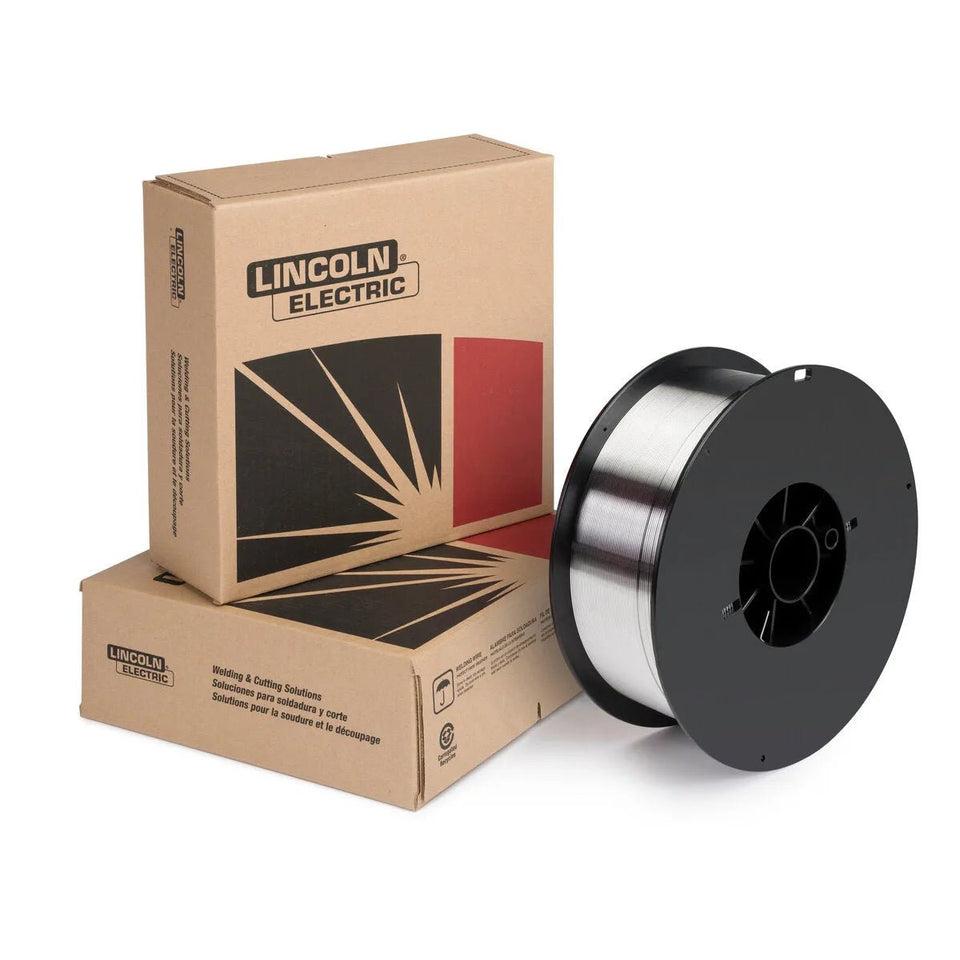

Lincoln EDS28417 SuperGlaze 4047 MIG GMAW Aluminum Welding Wire, 3/64 in, 16 lb Spool

SKU: EDS28417
$246.28
Lincoln Elite Dealer
Free Shipping over $250
Lowest Price
SuperGlaze® 4047 has a very high silicon content 11-13 % with low melting point for excellent fluidity
AWS / Classification: AWS A5.10: ER4047
Overview

SuperGlaze 4047 3/64 inch aluminum alloy has a very high silicon content 11-13 % with low melting point for excellent fluidity while welding or brazing.

Features
  • High fluidity from 11-13% Si content
  • Minimizes hot cracking to produce higher fillet weld shear strength
  • Cosmetic welds
  • Lower melting point and higher fluidity than 4043 wires

Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.10 ER4047
Classification %Be%Mg%Zn%Cu%Fe%Mn%Si
ER4047 Requirement 0.0003 max.0.10 max.0.20 max.0.30 max.0.8 max.0.15 max.11.0 - 13.0
Typical Result 0.00000.000.000.000.10.0012.1
Diameter Shielding GasGas Flow, L/min (CFH)PolarityCTWD, mm (in.)Wire Feed Speed, m/min (in/min)Voltage, voltsApprox. Current, amps
0.9 mm (.035") 100% Ar14-24 (30-50)DC+12.7 (¹/₂) - 15.9 (⁵/₈)14.9 (585)23.3170
1.2 mm (3/64") 100% Ar14-24 (30-50)DC+12.7 (¹/₂) - 15.9 (⁵/₈)8.9 (350)25.2195
1.6 mm (1/16") 100% Ar14-24 (30-50)DC+12.7 (¹/₂) - 15.9 (⁵/₈)6.4 (250)24.0240
LECO Diameter 3/64 in (1.2 mm)
LECO Package 16 lb Spool
Diameter (in) 3/64
Downloads
Includes
  • (1) 16 lb Spool
