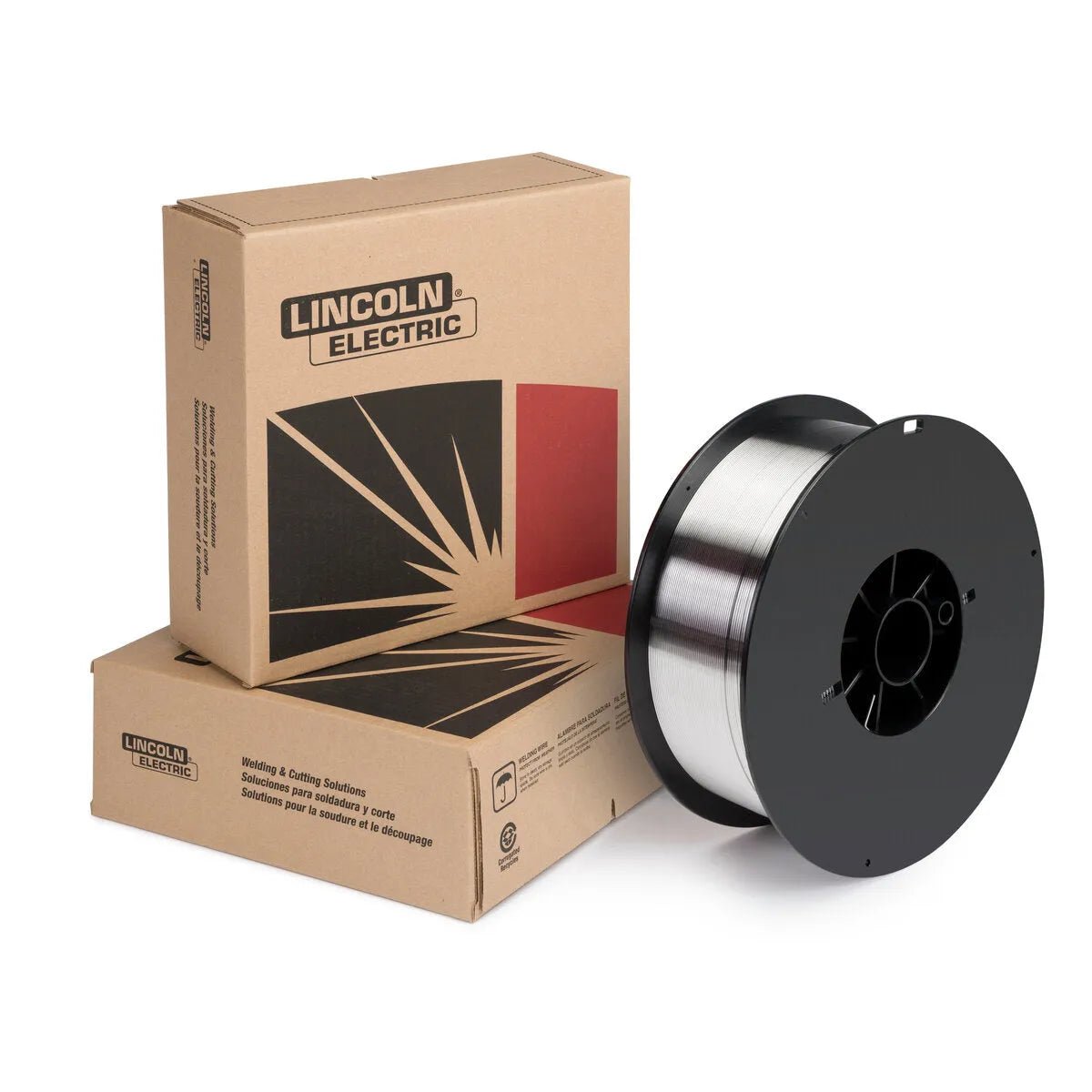

Lincoln EDS28437 SuperGlaze 5183 MIG GMAW Aluminum Welding Wire, 3/64 in, 16 lb Spool

SKU: EDS28437
$147.53 $170.08
Lincoln Elite Dealer
Free Shipping over $250
Lowest Price
SuperGlaze® 5183 is used for higher strength welding of 5XXX and 6XXX base materials with superior corrosion resistance
AWS / Classification: AWS A5.10: ER5183
Overview

SuperGlaze 5183 3/64 Aluminum Magnesium Manganese alloy is commonly used for higher strength welding of 5XXX and 6XXX base materials. Higher strength and superior salt water corrosion resistance with common shipbuilding base materials compared to 5356.

Features
  • Designed for applications where higher strength is required
  • Provides very high as-welded strength for high magnesium alloys such as 5083
  • Excellent corrosion resistance ideal for shipbuilding and marine applications
Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.10 ER5183
Classification %Be%Mg%Zn%Cr%Cu%Fe%Mn%Si%Ti
ER5183 Requirement 0.0003 max.4.3 - 5.20.25 max.0.05 - 0.250.10 max.0.40 max.0.50 - 1.00.40 max.0.15 max.
Typical Result 0.0003 max.4.90.010.070.000.120.60.050.07
Diameter Shielding GasGas Flow, L/min (CFH)PolarityCTWD, mm (in.)Wire Feed Speed, m/min (in/min)Voltage, voltsApprox. Current, amps
0.9 mm (.035") 100% Ar14-24 (30-50)DC+12.7 (¹/₂) - 15.9 (⁵/₈)19.6 (770)21.6185
1.2 mm (3/64") 100% Ar14-24 (30-50)DC+12.7 (¹/₂) - 15.9 (⁵/₈)12.7 (500)23.0210
1.6 mm (1/16") 100% Ar14-24 (30-50)DC+12.7 (¹/₂) - 15.9 (⁵/₈)9.1 (360)24.8280
2.4 mm (3/32") 100% Ar85 (180)DC+19.0 (³/₄)8.0 (315)28.0500
3.2 mm (1/8") 100% Ar85 (180)DC+19.0 (³/₄)5.1 (200)30.3535
LECO Diameter 3/64 in (1.2 mm)
LECO Package 16 lb Spool
Diameter (in) 3/64
Downloads
Includes
  • (1) 16 lb Spool
