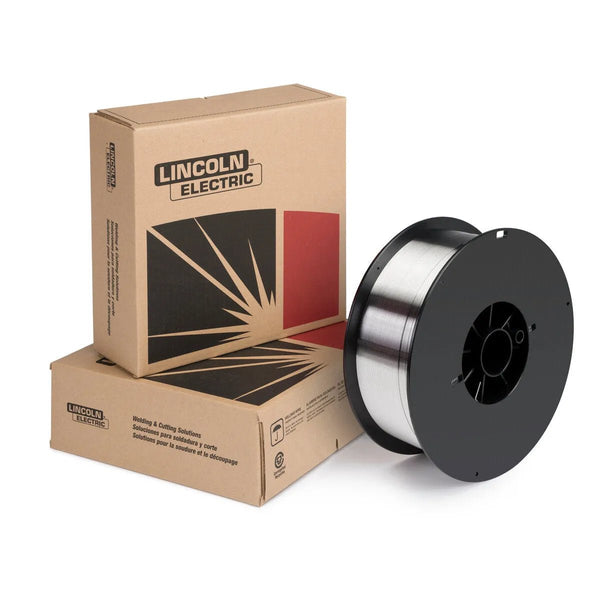

Lincoln Electric 5556 Aluminum MIG Wire 1/16" – 16 lb

SKU: EDS29582
$204.81 $215.04
Lincoln Elite Dealer
Free Shipping over $250
Lowest Price
SuperGlaze® 5556 gives the highest as-welded strengths in fillets for high strength base materials
AWS / Classification: AWS A5.10: ER5556
Overview

SuperGlaze 5556 1/16 is an Aluminum Magnesium Manganese alloy engineered to provide the highest as-welded strengths in fillet welds. Designed for high-strength base materials such as 5083, it also delivers strong performance on 6XXX series alloys. With increased magnesium and manganese content, SuperGlaze® 5556 offers excellent corrosion resistance and high columnar strength, making it ideal for demanding fabrication environments.

Features

  • Provides higher tensile strengths for welding high-strength 5XXX alloys

  • Increased magnesium and manganese content enhances corrosion resistance

  • High columnar strength for improved feeding and performance

  • Not recommended for prolonged elevated service temperatures (150°F and above)

Typical Applications

  • Trailer manufacturing

  • Shipbuilding

Welding Positions

  • All except vertical down

Shielding Gas

  • 100% Argon

  • Argon / Helium mixtures

  • Flow Rate: 30–50 CFH

Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.10 ER5556
Classification %Be%Mg%Zn%Cr%Cu%Fe%Mn%Si%Ti
ER5556 Requirement 0.0003 max.4.7 - 5.50.25 max.0.05 - 0.200.10 max.0.40 max.0.50 - 1.00.25 max.0.05 - 0.20
Typical Result 0.0002 max.4.90.000.070.000.130.70.060.08
Diameter Shielding GasGas Flow, L/min (CFH)PolarityCTWD, mm (in.)Wire Feed Speed, m/min (in/min)Voltage, voltsApprox. Current, amps
0.9 mm (.035") 100% Ar14-24 (30-50)DC+12.7 (¹/₂) - 15.9 (⁵/₈)19.6 (770)21.6185
1.2 mm (3/64") 100% Ar14-24 (30-50)DC+12.7 (¹/₂) - 15.9 (⁵/₈)12.7 (500)23.0210
1.6 mm (1/16") 100% Ar14-24 (30-50)DC+12.7 (¹/₂) - 15.9 (⁵/₈)9.1 (360)24.8280
2.4 mm (3/32") 100% Ar85 (180)DC+19.0 (³/₄)8.0 (315)28.0500
3.2 mm (1/8") 100% Ar85 (180)DC+19.0 (³/₄)5.1 (200)30.3535
LECO Diameter 1/16 in (1.6 mm)
LECO Package 16 lb Spool
Diameter (in) 1/16
Includes
  • (1) 16 lb Spool
