Lincoln Electric 5556 Aluminum MIG Wire 3/64" – 1 lb

SKU: EDS30329
$244.07
Lincoln Elite Dealer
Free Shipping over $250
Lowest Price
SuperGlaze® 5556 gives the highest as-welded strengths in fillets for high strength base materials
AWS / Classification: AWS A5.10: ER5556
Overview

SuperGlaze 5556 3/64 Aluminum Magnesium Manganese alloy gives the highest as-welded strengths in fillets. It is commonly used for welding high strength base materials like 5083 and provides good strength on 6XXX base materials.

Features
  • Provides higher tensile strengths for welding of higher strength 5XXX alloys
  • Increased amounts of magnesium and manganese for excellent corrosion resistance
  • High columnar strength
  • Not recommended for prolonged elevated service temperatures (150F)
Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.10 ER5556
Classification %Be%Mg%Zn%Cr%Cu%Fe%Mn%Si%Ti
ER5556 Requirement 0.0003 max.4.7 - 5.50.25 max.0.05 - 0.200.10 max.0.40 max.0.50 - 1.00.25 max.0.05 - 0.20
Typical Result 0.0002 max.4.90.000.070.000.130.70.060.08
Diameter Shielding GasGas Flow, L/min (CFH)PolarityCTWD, mm (in.)Wire Feed Speed, m/min (in/min)Voltage, voltsApprox. Current, amps
0.9 mm (.035") 100% Ar14-24 (30-50)DC+12.7 (¹/₂) - 15.9 (⁵/₈)19.6 (770)21.6185
1.2 mm (3/64") 100% Ar14-24 (30-50)DC+12.7 (¹/₂) - 15.9 (⁵/₈)12.7 (500)23.0210
1.6 mm (1/16") 100% Ar14-24 (30-50)DC+12.7 (¹/₂) - 15.9 (⁵/₈)9.1 (360)24.8280
2.4 mm (3/32") 100% Ar85 (180)DC+19.0 (³/₄)8.0 (315)28.0500
3.2 mm (1/8") 100% Ar85 (180)DC+19.0 (³/₄)5.1 (200)30.3535
LECO Diameter 3/64 in (1.2 mm)

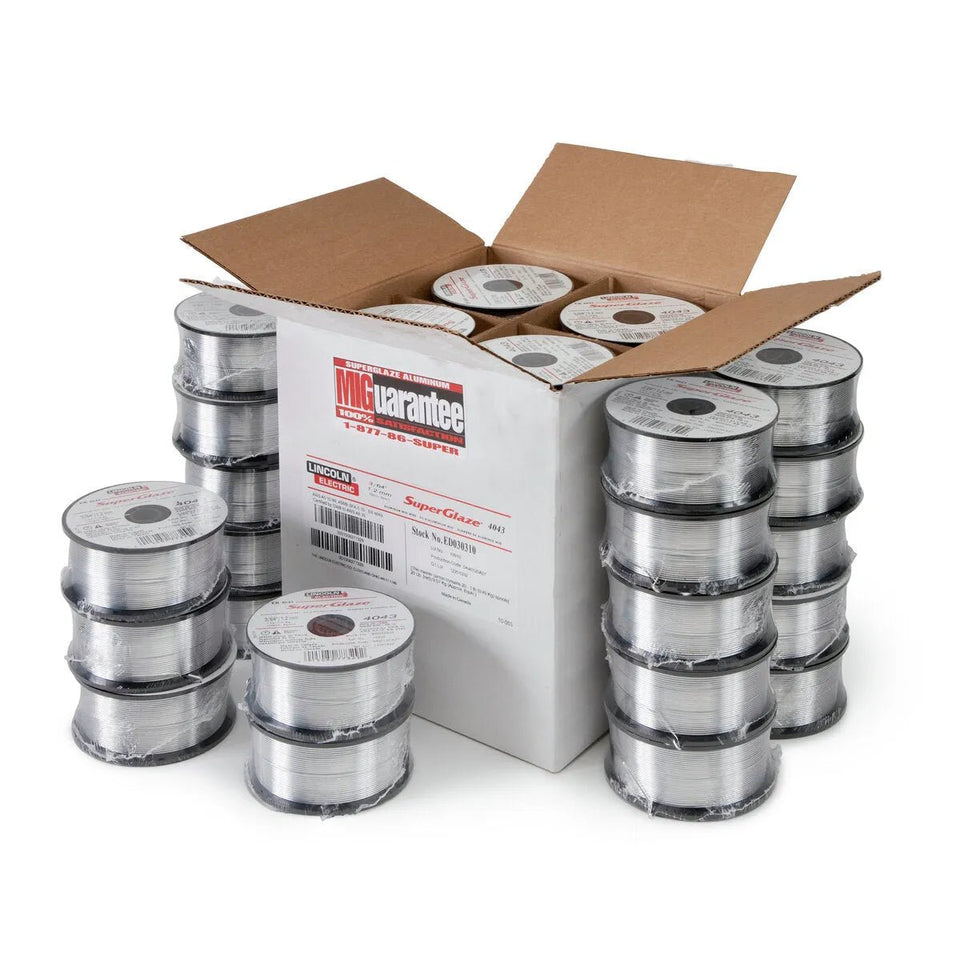

LECO Package (20) 1 lb Spool
Diameter (in) 3/64
Downloads
Includes
  • (20) 1 lb Spool
