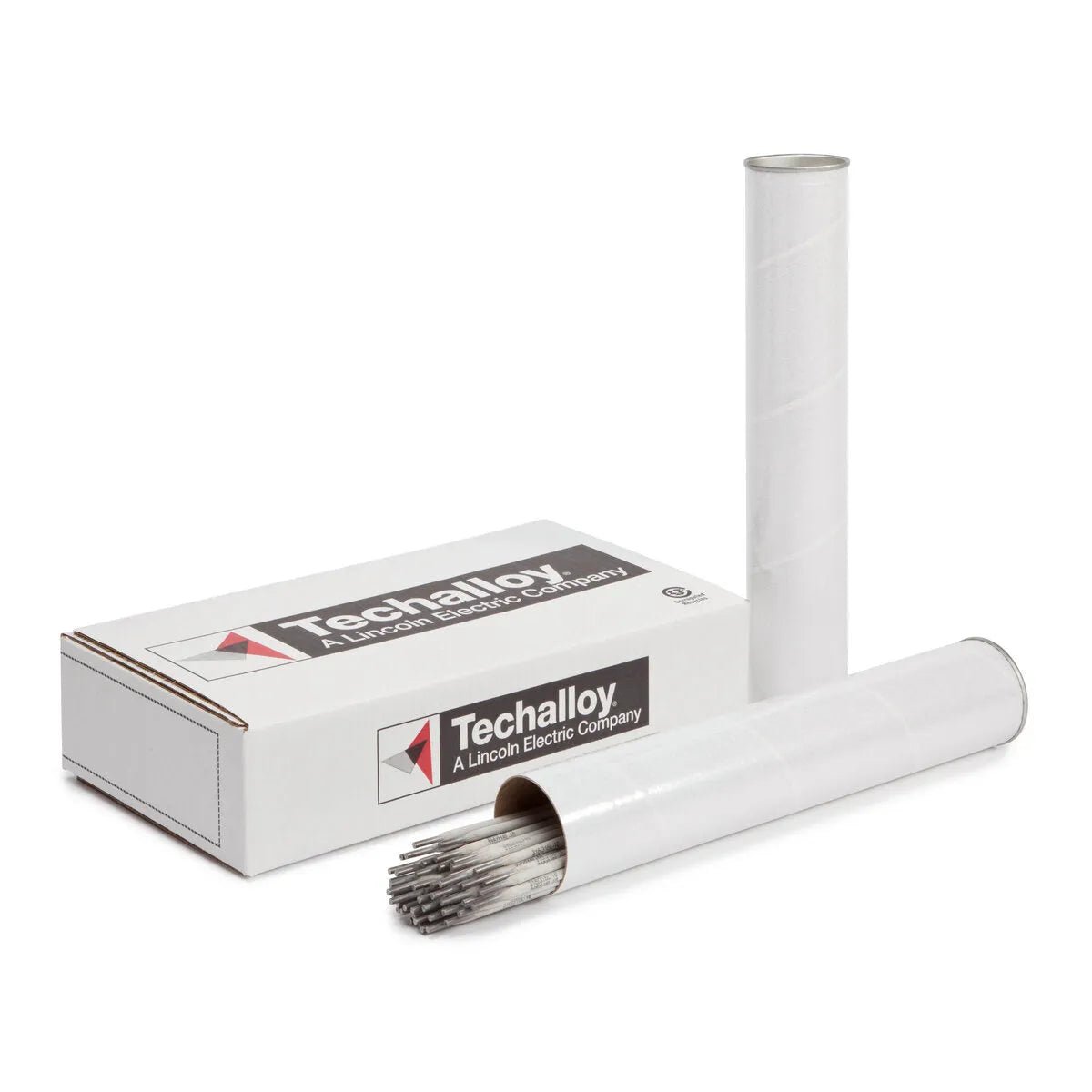

Lincoln Tech Rod 122 in 5/32 in x 14 in, packaged as a 10 lb easy-open can for the applications described on the Lincoln Tech Rod 122 family page. Same AWS A5.11/A5.11M ENiCrMo-10 classification as every other size in this product line, packaged in this format for shop and field crews running this diameter.
| Manufacturer SKU | EL122156634 |
|---|---|
| Diameter | 5/32 in |
| Length | 14 in |
| Package | 10 lb easy-open can |
| Net weight | 10 lb |
| Approx. rods per package | ~31 rods |
| Recommended amperage (this diameter) | 90-160 A |
| AWS classification | AWS A5.11/A5.11M ENiCrMo-10 |
- Brand-authorized distributor - factory-fresh stock, full warranty pass-through
- Stocked in our US warehouse; ships within 1 business day
- Same AWS A5.11/A5.11M ENiCrMo-10 classification as every other size in the Lincoln Tech Rod 122 line
- 30-day returns on unopened cartons
ENiCrMo-10 is an AWS A5.11 nickel-chromium-molybdenum SMAW electrode (~57 Ni / 22 Cr / 13 Mo / 3 W / UNS W86022) with 100 ksi minimum tensile, designed for welding Hastelloy C-22 (UNS N06022) and similar high-chromium nickel alloys used in severely oxidizing acid service, including hot nitric, hydrochloric, and mixed acid. The higher chromium content versus C-276 extends oxidizing-acid resistance. DC+ in all positions; interpass temperature ≤250 deg F.
Is this the same electrode as the parent Lincoln Tech Rod 122 grade, just in a different package?
Yes. SKU EL122156634 is the same AWS A5.11/A5.11M ENiCrMo-10 classification as every other size in the Lincoln Tech Rod 122 family. The only difference is diameter (5/32 in) and package format (10 lb easy-open can). Polarity, position, and tensile properties are identical to the parent grade.
How many rods are in this 10 lb easy-open can?
Approximately ~31 rods. Exact count varies with manufacturing tolerance but a 10 lb easy-open can of 5/32 in Lincoln Tech Rod 122 typically contains in this range.
What is the shelf life if I do not use them all?
Sealed containers have an indefinite shelf life when stored in a dry environment. Follow the manufacturer storage instructions on the parent grade page for opened-container handling.
What diameter should I use for common applications?
5/32 in is well-suited for flat and horizontal fill on heavier plate and structural welds. Heavier base metal and higher deposition typically calls for one diameter up; thinner sheet and root passes go one diameter down. See the parent grade page for full diameter-to-amperage guidance.
Can I mix this size with other diameters on the same job?
Yes, provided your procedure qualification (WPS) covers the diameter range. Many shops use one diameter for root, one for fill, and one for cap. All sizes within Lincoln Tech Rod 122 share identical mechanical properties (AWS A5.11/A5.11M ENiCrMo-10) so weld metal chemistry is consistent across passes.
Do I need to rebake these after the can is opened?
Refer to the parent grade page and manufacturer data sheet for rebake requirements specific to this electrode classification.
Does this size require a special holder or stinger?
Use an electrode holder rated for the amperage range above (90-160 A). Most general-purpose stinger holders (e.g. 300-500 A class) handle 5/32 in Lincoln Tech Rod 122 without issue. For sustained high-amperage runs on larger diameters, a 500 A or higher holder is recommended.
Is this Buy America compliant?
This specific SKU is not the Buy America variant. Lincoln Tech Rod 122 may be available in a Buy America compliant version - see the parent grade page for all available compliance variants.
