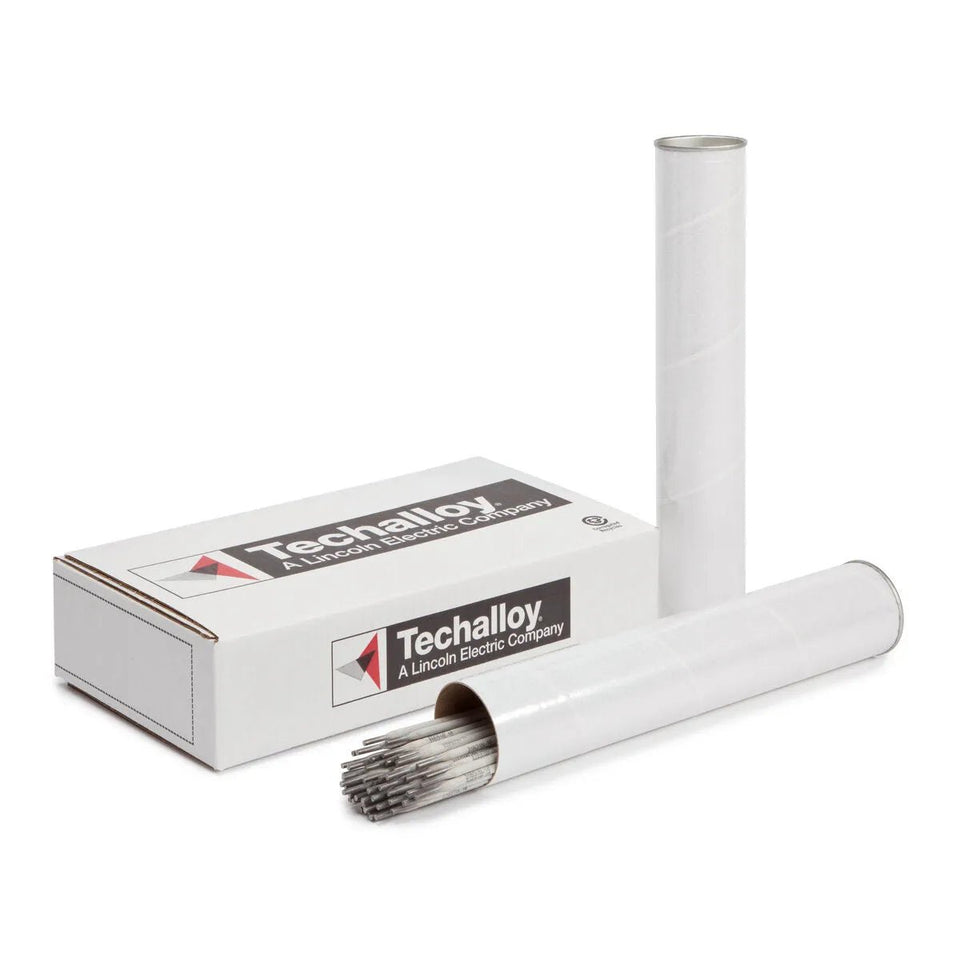

Lincoln Tech Rod 182 in 3/16 in x 14 in, packaged as a 10 lb easy-open can for the applications described on the Lincoln Tech Rod 182 family page. Same AWS A5.11/A5.11M ENiCrFe-3 classification as every other size in this product line, packaged in this format for shop and field crews running this diameter.
| Manufacturer SKU | EL182187634 |
|---|---|
| Diameter | 3/16 in |
| Length | 14 in |
| Package | 10 lb easy-open can |
| Net weight | 10 lb |
| Approx. rods per package | ~22 rods |
| Recommended amperage (this diameter) | 130-200 A |
| AWS classification | AWS A5.11/A5.11M ENiCrFe-3 |
ENiCrFe-3 is an AWS A5.11 nickel-chromium-iron SMAW electrode (~67 Ni / 16 Cr / 8 Fe / Nb-Mn / UNS W86182) with 80 ksi minimum tensile, designed for welding Inconel 600 and 601 and for dissimilar-metal joints between nickel alloys and carbon or low-alloy steel pressure-vessel base. The higher manganese content improves hot-cracking resistance compared to ENiCrFe-2. Widely used in nuclear and pressure-vessel construction. DC+ in all positions.
Is this the same electrode as the parent Lincoln Tech Rod 182 grade, just in a different package?
Yes. SKU EL182187634 is the same AWS A5.11/A5.11M ENiCrFe-3 classification as every other size in the Lincoln Tech Rod 182 family. The only difference is diameter (3/16 in) and package format (10 lb easy-open can). Polarity, position, and tensile properties are identical to the parent grade.
How many rods are in this 10 lb easy-open can?
Approximately ~22 rods. Exact count varies with manufacturing tolerance but a 10 lb easy-open can of 3/16 in Lincoln Tech Rod 182 typically contains in this range.
What is the shelf life if I do not use them all?
Sealed containers have an indefinite shelf life when stored in a dry environment. Follow the manufacturer storage instructions on the parent grade page for opened-container handling.
What diameter should I use for common applications?
3/16 in is well-suited for high-deposition flat and horizontal work on heavy plate. Heavier base metal and higher deposition typically calls for one diameter up; thinner sheet and root passes go one diameter down. See the parent grade page for full diameter-to-amperage guidance.
Can I mix this size with other diameters on the same job?
Yes, provided your procedure qualification (WPS) covers the diameter range. Many shops use one diameter for root, one for fill, and one for cap. All sizes within Lincoln Tech Rod 182 share identical mechanical properties (AWS A5.11/A5.11M ENiCrFe-3) so weld metal chemistry is consistent across passes.
Do I need to rebake these after the can is opened?
Refer to the parent grade page and manufacturer data sheet for rebake requirements specific to this electrode classification.
Does this size require a special holder or stinger?
Use an electrode holder rated for the amperage range above (130-200 A). Most general-purpose stinger holders (e.g. 300-500 A class) handle 3/16 in Lincoln Tech Rod 182 without issue. For sustained high-amperage runs on larger diameters, a 500 A or higher holder is recommended.
Is this Buy America compliant?
This specific SKU is not the Buy America variant. Lincoln Tech Rod 182 may be available in a Buy America compliant version - see the parent grade page for all available compliance variants.
