Flextec 350X multi-process construction 6 pack rack power source has CrossLinc technology for remote operation in construction welding applications.
Overview

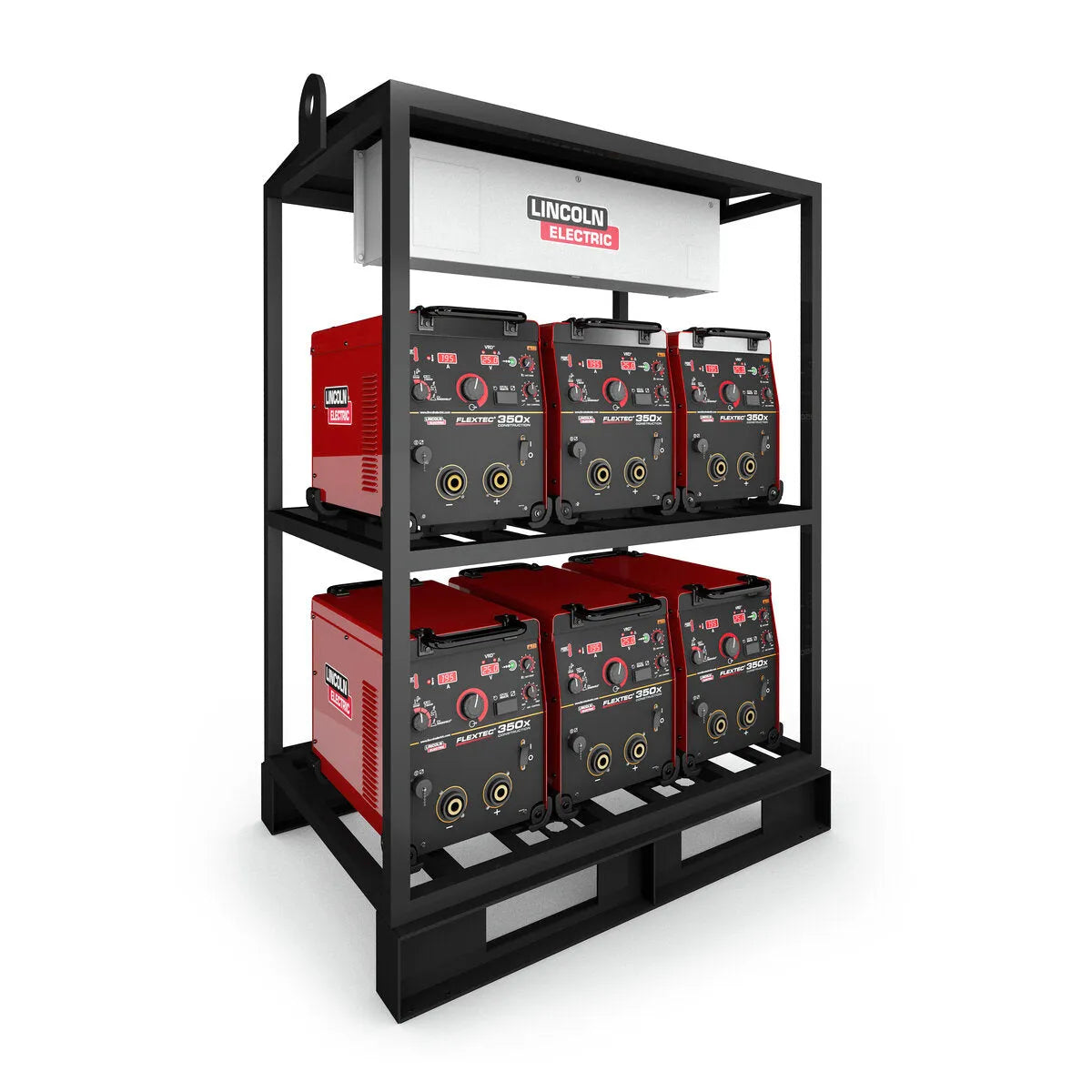

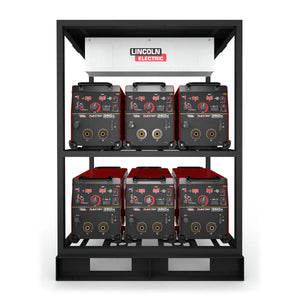

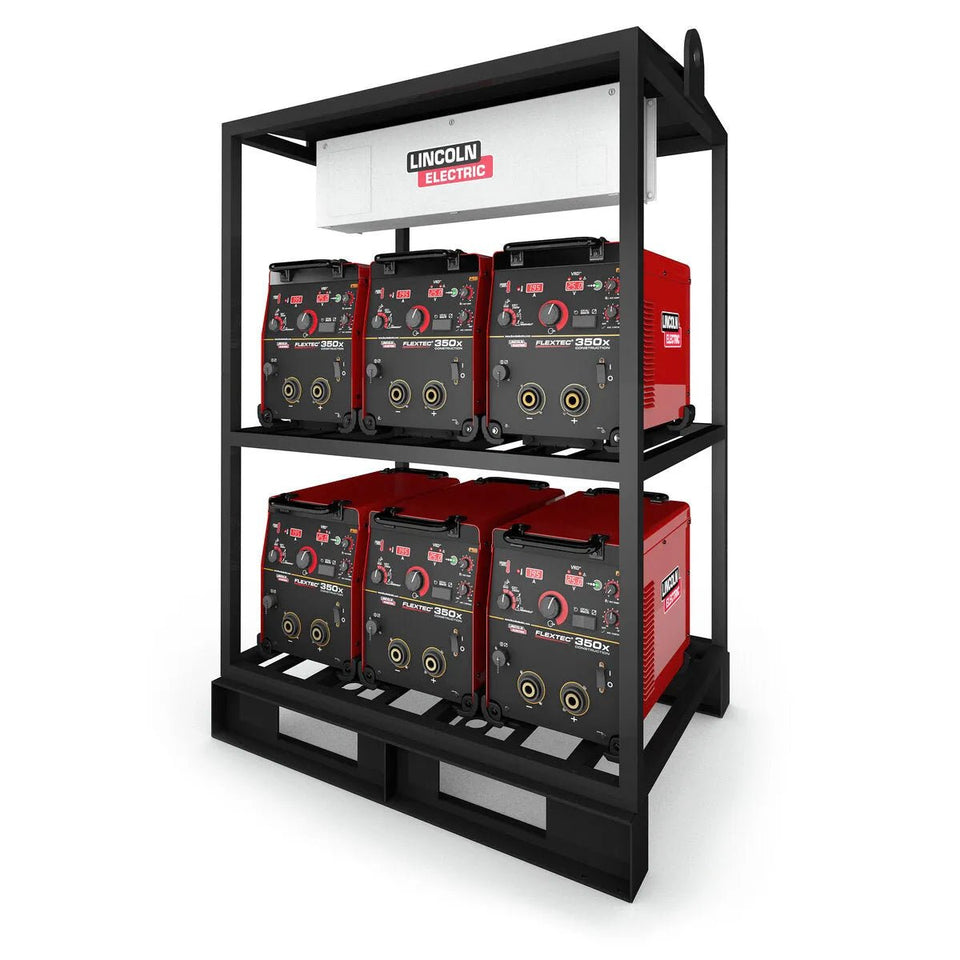

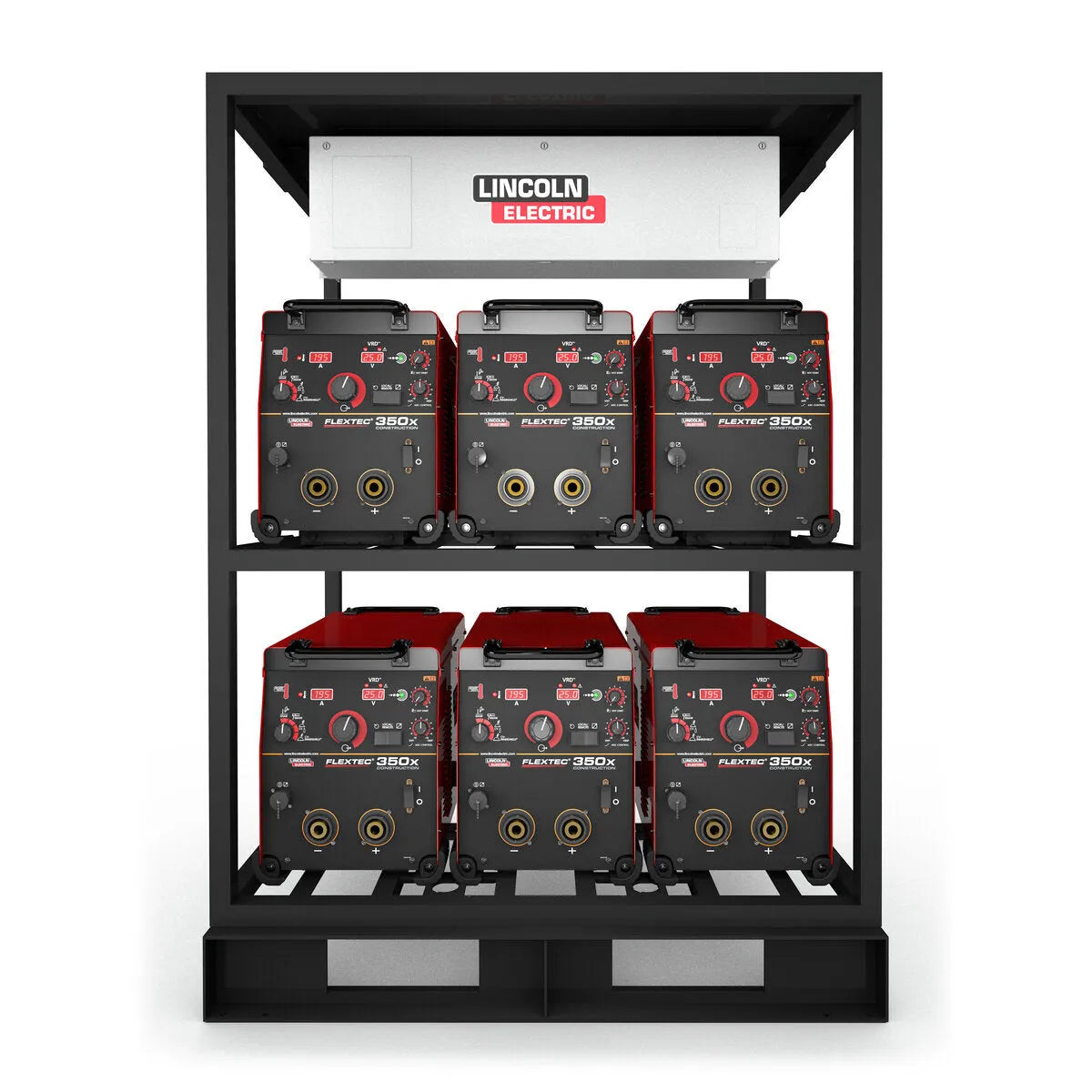

Flextec 350X Construction model 6-pack inverter rack is a compact rack that houses and protects 6 Flextec 350X Construction model power sources. Allows for easy transport to and from the construction site. Convenience of a single primary power drop for powering 6 welding arcs. Flextec 350X machines are CrossLinc compatible which allows for greater control and productivity.

Features
  • Tough inverter rack structure allows up to (6) Flextec 350X welders to be transported and as one unit protected from the elements.
  • All machines connected to a common work stud.
  • Powers all welders with one primary power drop.
  • Heavy square tubing used throughout construction, even for roof supports, to resist bending and twisting during lifts.
  • IP23 rated for outdoor use
  • Flextec 350X PowerConnect machines use industry segment Tweco style connections.
Specifications

Product Weights & Dimensions

Dimensions (H × W × D): 71.22 in × 48 in × 35.5 in (1809 mm × 1219 mm × 902 mm)
Net Weight: 830 lbs (377 kg)

General Specifications

Machine Processes:

• Stick (SMAW)
• Gouging (CAC-A)
• Flux-Cored (FCAW)
• TIG (GTAW)
• MIG (GMAW)
• Flux-Cored Self-Shielded (FCAW-S)
• Flux-Cored Gas-Shielded (FCAW-G)

Input Voltage: Fused for 460V, 3-Phase
Input Current: 90 A
Input Hertz: 50 / 63
Input Phase: 3
Input Power: 380 / 460 / 575 / 3 / 50 / 60

Mode Icon: CC / CV
Output Range: 5–425 A
Polarity: DC

Machine Technologies & Connections

Ingress Protection Rating: IP23
Output Range by Mode: 5–425 A
Machine Communication Technology: CrossLinc
Wire Feeder Supply Voltage: 40 VDC
Amphenol Pins (Type of Connector): 12
Work Lead Connector Type: Tweco

Applications

Typical Applications:

• Cross Country Pipeline
• Construction & Field Erection
• General Fabrication
• Heavy Equipment
• Heavy Fabrication
• Structural Fabrication

Warranty

Warranty: 5 Years

Downloads
Includes
  • Work cables from individual machines to inverter rack work stud
