Lincoln Electric — Lincoln MAXsa 22 Feed Head K2370-2
SUBMERGED ARC HARD AUTOMATION FEED HEAD.
Specifications
- Typical Applications: Heavy Fabrication, Piping, Power Generation, Pressure Vessels, Process Piping, Robotics/ Hard Automation
- Processes: Submerged Arc (SAW)
- Equipment Classification: Advanced
- Welding Technology: Inverter/Chopper
- Product Height (in): 12.0
- Product Height (mm): 305
- Product Width (in): 14
- Product Width (mm): 355
- Product Length (in): 10
- Product Length (mm): 254
- Product Weight (lb): 80.0
- Product Weight (kg): 36.3
- Max Rating: 1000
- Input Voltage: 32 VDC
- Input Current: 6.7A (max.)
- Part number: K2370-2
- UPC/EAN: 015082891255

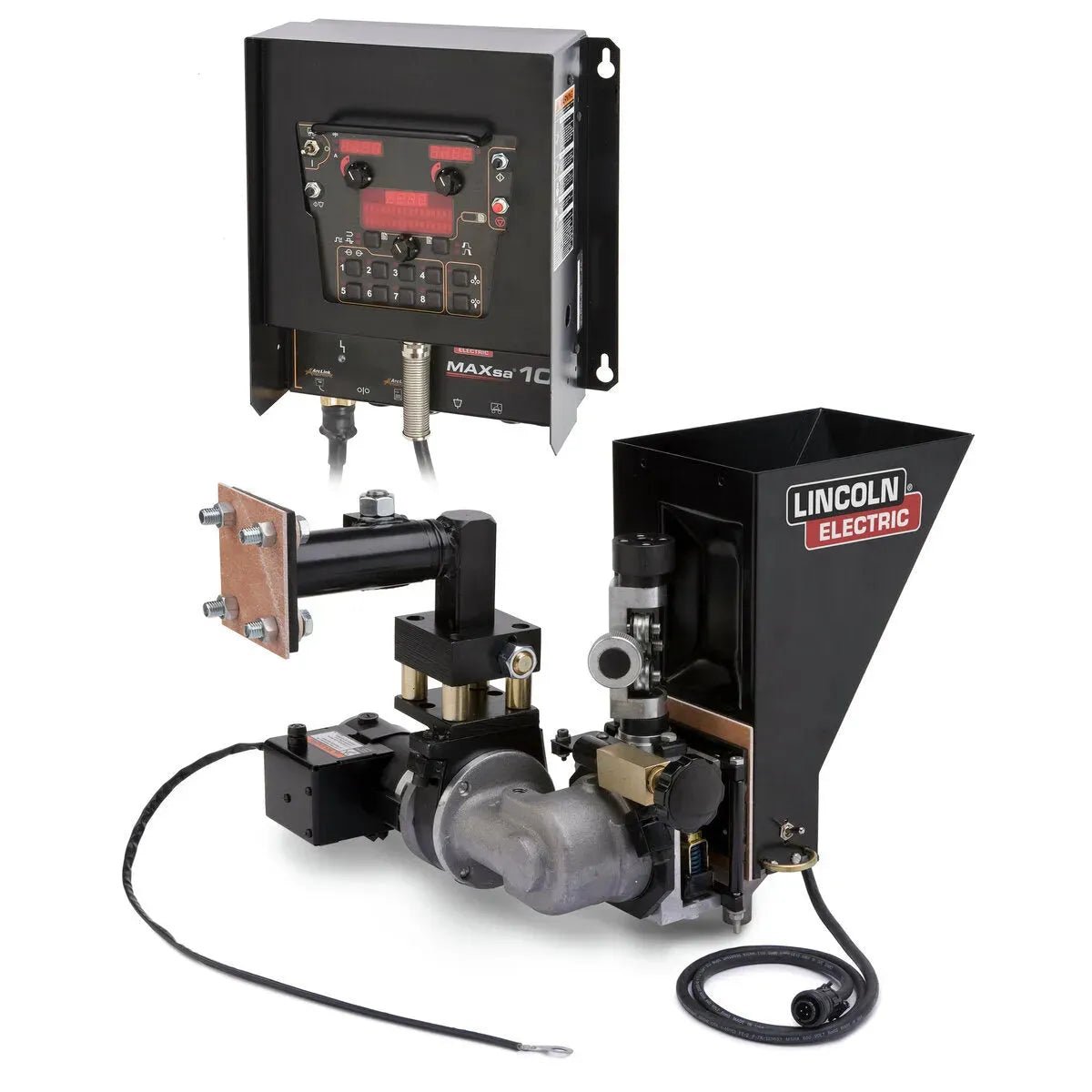

What's in the box
- MAXsa® 22 Feed Head
- Adjustable wire straightener
- Cross-seam adjuster
- Electric flux hopper
- Mounting bracket for TC-3 carriage
Compatibility & sizing
- Lincoln category: Welding Equipment - Advanced Process Wire Feeders
- Compatible families: MAXsa
Why pros choose this
A wire feeder must match the wire-size range, drive-roll configuration, and voltage class of the power source. Boom and bench feeders trade off portability against duty cycle.
Warranty
5 Years
From the manufacturer

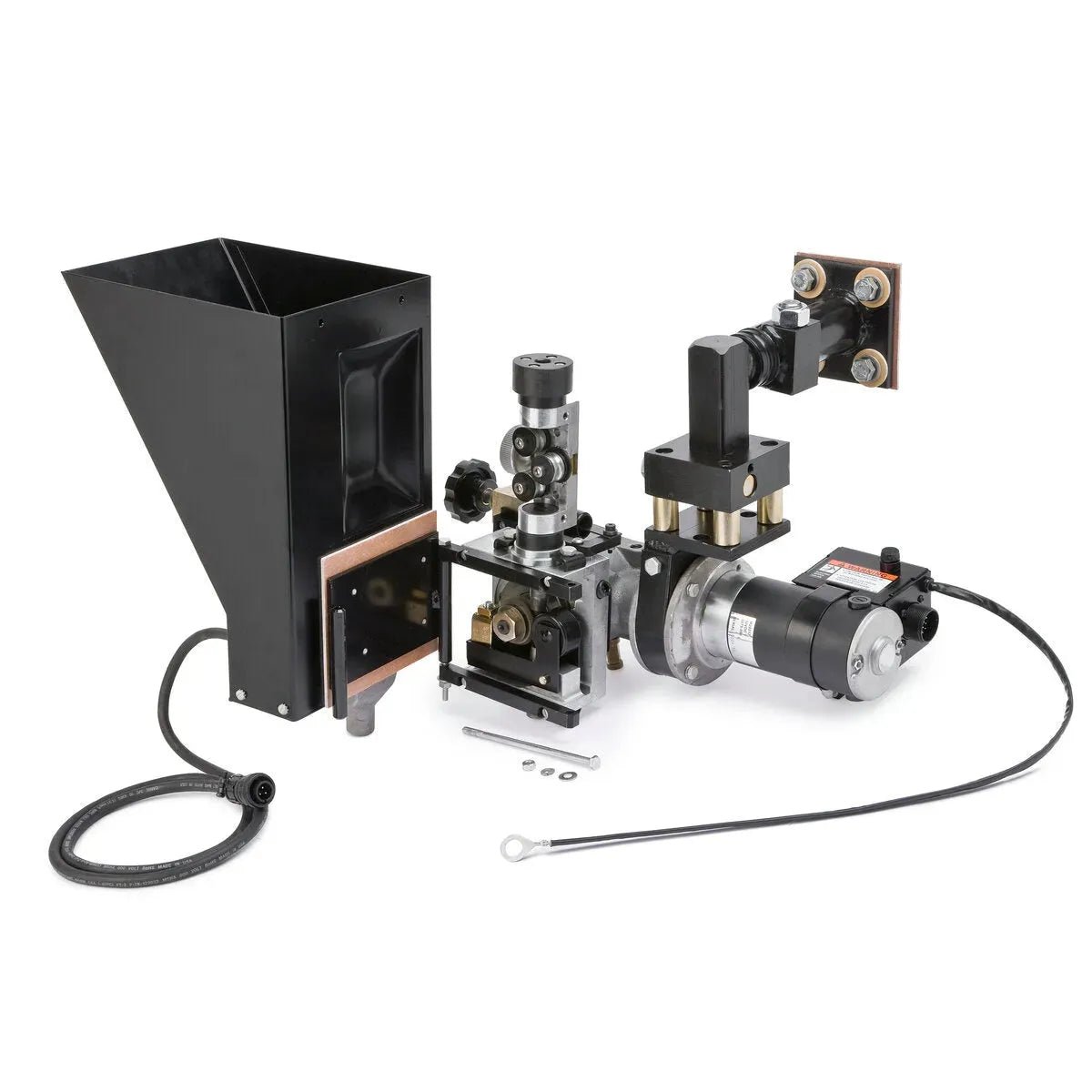

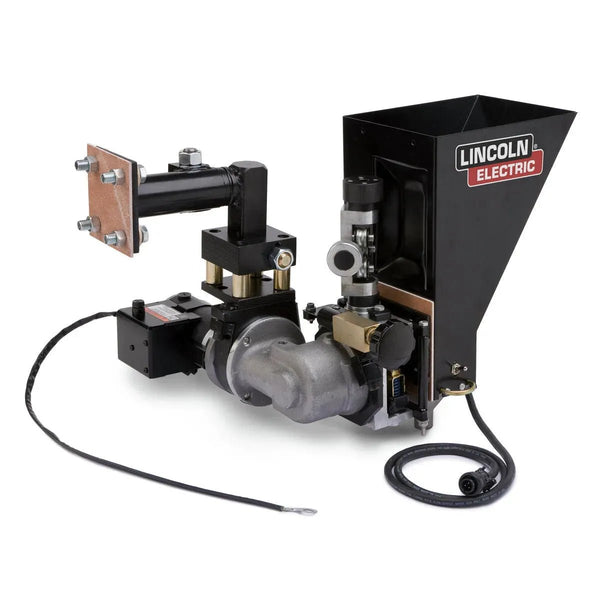

Designed specifically for hard automation applications, the MAXsa 22 Feed Head delivers accurate wire feeding of large diameter submerged arc wires. Based on Lincoln’s proven gearbox and cast aluminum feedplate, the MAXsa 22 model features a 40VDC permanent magnet, high torque motor that delivers plenty of traction to push up to 7/32 in. (5.6 mm) diameter solid wire. A top speed of up to 500 ipm (12.7 m/min) can be achieved by changing the gear ratio.Features
- Flexible Configuration Can be used in single, tandem, Twinarc or multiple arc applications.
- Closed Loop Speed Control Facilitates full control over starting, running and stopping wire feed speed.
- Wide Range of Wire Feed Speed – Gear ratio conversion kits allow for a wide range of WFS capabilities to match the requirements of your application.
- Rotatable feed head allows flexible, accurate setup for fixturing.
- Standard Accessories – Including an adjustable wire straightener, cross-seam adjuster and electrical valve flux hopper and mounting bracket for TC-3 carriage.
