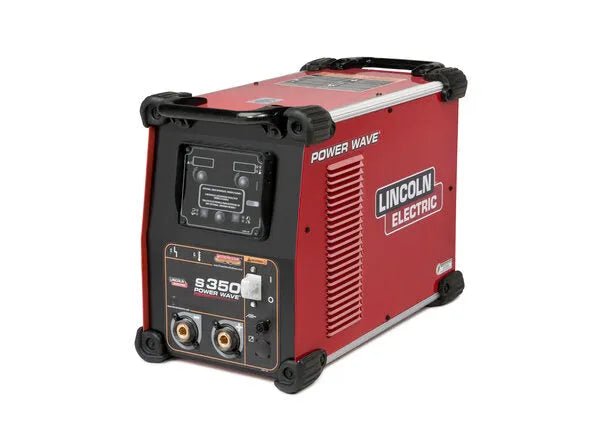

The Lincoln Electric Power Wave S350 represents the cutting edge of welding technology, delivering unparalleled process control and performance for manufacturing operations where precision and productivity are mission-critical requirements. This advanced multi-process welding system combines sophisticated digital controls with Lincoln's proprietary waveform technology to optimize arc performance across virtually any application, from thin-gauge aluminum to heavy structural steel. The Power Wave S350's intelligent architecture continuously monitors and adjusts welding parameters 120,000 times per second, creating exceptionally stable arcs with minimal spatter, reduced heat input, and superior bead appearance that dramatically improves weld quality while reducing rework and post-weld processing requirements.
Compare With K2823-3 - Full Five Year Factory Warranty
Engineered around Lincoln Electric's innovative modular platform, the Power Wave S350 offers unprecedented system customization capabilities that allow users to configure the perfect welding solution for their specific applications. Additional modules can be seamlessly integrated and stacked directly beneath the power source, creating clean, organized welding stations whether in stationary installations or mobile cart configurations. This modular approach provides maximum flexibility for evolving production requirements while ensuring optimal organization of welding components and accessories, significantly improving workspace efficiency and operator productivity in manufacturing environments where space utilization is critical.
The Power Wave S350 incorporates Lincoln Electric's patented PowerConnect technology, which automatically adapts to any available input power from 200-600V, 50 or 60 Hz, single-phase or three-phase without manual reconfiguration. This intelligent auto-sensing capability maintains consistent welding output regardless of input voltage fluctuations, eliminating parameter drift and ensuring weld quality even in facilities with unstable power conditions. The advanced Tribrid Power Module delivers exceptional welding performance with high power factor and efficiency, reducing energy consumption while providing superior arc characteristics across all welding processes, including specialized modes optimized for specific materials and applications.
Advanced connectivity features distinguish the Power Wave S350 as a true Industry 4.0-ready welding system, with standard Ethernet connectivity enabling seamless integration with Lincoln Electric's comprehensive digital ecosystem. Every Power Wave system includes access to Lincoln Electric Power Wave Manager software for remote configuration and process control, allowing engineering teams to develop, optimize, and deploy welding procedures across multiple machines from a central location. The integrated Lincoln Electric Checkpoint Production Monitoring capability provides real-time welding data collection and analysis, enabling comprehensive quality assurance documentation, process verification, and production efficiency optimization through detailed performance metrics and weld quality analytics.
Designed for reliable operation in demanding industrial environments, the Power Wave S350 features an IP23 environmental rating that ensures consistent performance even in harsh manufacturing conditions with airborne contaminants and moisture exposure. The system's intelligent Smart Fan technology activates cooling only when required, minimizing noise, reducing energy consumption, and preventing unnecessary dust ingestion during idle periods. The optional 115V auxiliary power receptacle with patent-pending Surge Blocker Technology allows simultaneous operation of high-starting-current devices like grinders without compromising welding performance, creating a complete workstation solution. With its comprehensive five-year warranty coverage, the Power Wave S350 represents Lincoln Electric's commitment to quality, reliability, and technological innovation in advanced welding systems for precision manufacturing applications.
- Modular Platform - Allows for system customization to your welding needs. Modules can be stacked directly beneath power source for clean and convenient configuration whether stationary or on a cart.
- Advanced Connectivity and Control - All Power Wave systems come standard with access to Lincoln Electric Power Wave Manager and Lincoln Electric Checkpoint Production Monitoring allowing for advanced remote configuration, process control, and quality assurance.
- Compact and Durable - IP23 rated to withstand harsh environments.
- Patented PowerConnect Technology - Automatically adjusts to input power from 200-600V, 50 or 60 Hz, single phase or three phase. Welding output remains constant through the entire input voltage range.
- Tribrid Power Module - Exceptional welding performance with high power factor and efficiency.
- Smart Fan Operation - Only runs when needed to minimize noise and energy consumption.
| Dimensions (H x W x D) | 20.4 in x 14 in x 24.8 in (518 mm x 356 mm x 630 mm) |
| Net Weight | 85 lbs (38.556 kg) |
| Machines Processes | Stick (SMAW) Gouging (CAC-A) TIG (GTAW) MIG (GMAW) Pulsed MIG (GMAW-P) Flux-Cored Self-Shielded (FCAW-S) Flux-Cored Gas-Shielded (FCAW-G) Metal-cored Wire (GMAW-C) |
| Number of Operators per Machine | 1 |
| Input Voltage | 200/208,220/230/240,380/400/415,460,575 |
| Input Current | 3PH/40% - 39/35/19/17/14A, 1PH/40% - 60/61/NA/NA/NA A |
| Input Hertz | 50,50/60,60 |
| Input Phase | 1,1/3,3 |
| Input Power | 208/230/380/415/460/575/1/3/50/60 |
| Mode Icon | CC/CV |
| Output Range | 5-350A DC |
| Polarity | DC |
| Data Technologies | Ethernet |
| Machines Communication Technology | ArcLink |
| Wire Feeder Supply Voltage | 40VDC |
| Amphenol Pins (type of connector) | 5 |
| Work Lead Connector Type | Tweco |
| Power Source to Feeder Communication Connector Type | 5-pin |
| Accesories Communication Connector Type | 12-pin |
| Warranty | 5 Years Parts and Labor |
The Power Wave S350 Advanced Process is a multi-process industrial power source supporting MIG (GMAW), flux-core (FCAW), Stick (SMAW), DC TIG (GTAW), and advanced pulsed MIG processes. The Power Wave and Flextec series are designed for both manual and automated welding applications. Refer to the spec sheet for the full process list for your specific model.
Input power requirements vary by model. Smaller multi-process units may accept single-phase 208/230V or multi-voltage input. Industrial Power Wave and Flextec models typically require three-phase 208–575V input. Check the spec sheet and machine nameplate for exact input power specifications before installation.
Yes — the Lincoln Electric Power Wave and Flextec series are designed for both manual and automated welding applications. They feature ArcLink® digital communication for integration with Lincoln Electric wire feeders, robots, and automated systems. Contact WeldingMart or Lincoln Electric for automation integration assistance.
Lincoln Electric multi-process power sources in this class are compatible with Lincoln's industrial wire feeder family via ArcLink digital connection. Compatible feeders include the LF-72, LF-74, MAXsa, and other Lincoln wire feeders. Refer to the owner's manual for a complete compatibility list.
Output range and duty cycle are listed in the spec sheet. Industrial Lincoln Electric power sources in this class are typically rated for 100% duty cycle at maximum output, making them suitable for continuous production welding environments.

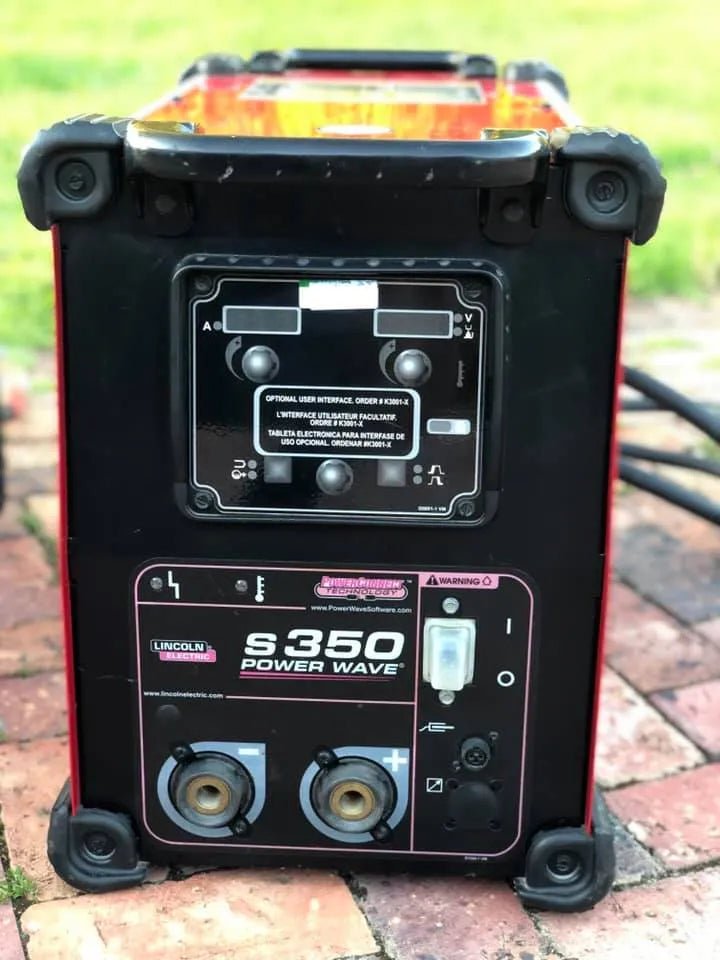

Yes — this is a factory demo or low-hour unit sourced directly from Lincoln Electric. Units are mechanically tested before sale and may show light cosmetic wear. The warranty on this unit is the same as on a new machine. Lincoln’s Industrial Limited Warranty (form IMWS1, Apr-2026) lists a 5-year warranty period for “Power Wave® machines”, and Lincoln states: “Lincoln will assume both the parts and labor expense of correcting defects during the warranty period.” Source: Lincoln Electric Industrial Limited Warranty (form IMWS1, Apr-2026).
