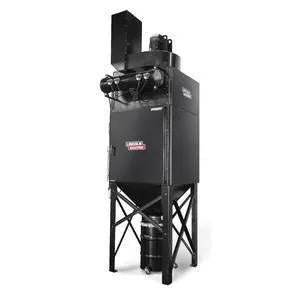

Lincoln Prism Central System 10 HP (4000 CFM) 4 Vertical Filter Fume Extraction Unit AD1326-19
FUME EXTRACTION SYSTEM
The Prism fume extraction system is a reduced-footprint fan/filtration unit combination designed with robotic welding and plasma cutting systems in mind. The 4 bank vertically positioned filter configuration can provide extraction capacity for any automated system equipped with a hood or can connect easily to plasma cutting tables. The vertical positioning enhances the effectiveness of the uniform; high-energy pulses of compressed air** released during the filter cleaning cycle.
Small Footprint
- The small footprint takes up less floor space than competitive units
Automatic Cleaning
- System will automatically start cleaning process once pre-set pressure differential is reached
- Vertical filter orientation allows for more efficient cleaning
- Particulates will be collected into the 30 gallon dust bin
Quick and Simple Installation
- Shipped in three pieces over two pallets
- Locate and secure base module to floor
- Fasten upper filter module with pre-installed fan on leg base assembly and secure
- Lincoln Smart Connect technology allows for quick and seamless wire connectivity
- Position silencer and dust bin
- Connect power; compressed air and duct sensor for fan speed control
Quiet Operation
- Silencer on exhaust fan drastically reduces airflow noise
Intelligent Fan Control Technology
- Equipped with variable speed drive that adjusts extraction airflow to application
- Variable speed drive regulates fan speed based on filter loading to maximize fume extraction; conserve energy and extend equipment life
**Customer supplied. Must be clean; dry; and oil free.
Features
- Small Footprint
- Automatic Filter Cleaning
- Quick and Simple Installation
- Quiet Operation
- Intelligent Fan Control Technology
