Lincoln Electric  |  SKU: ED032844

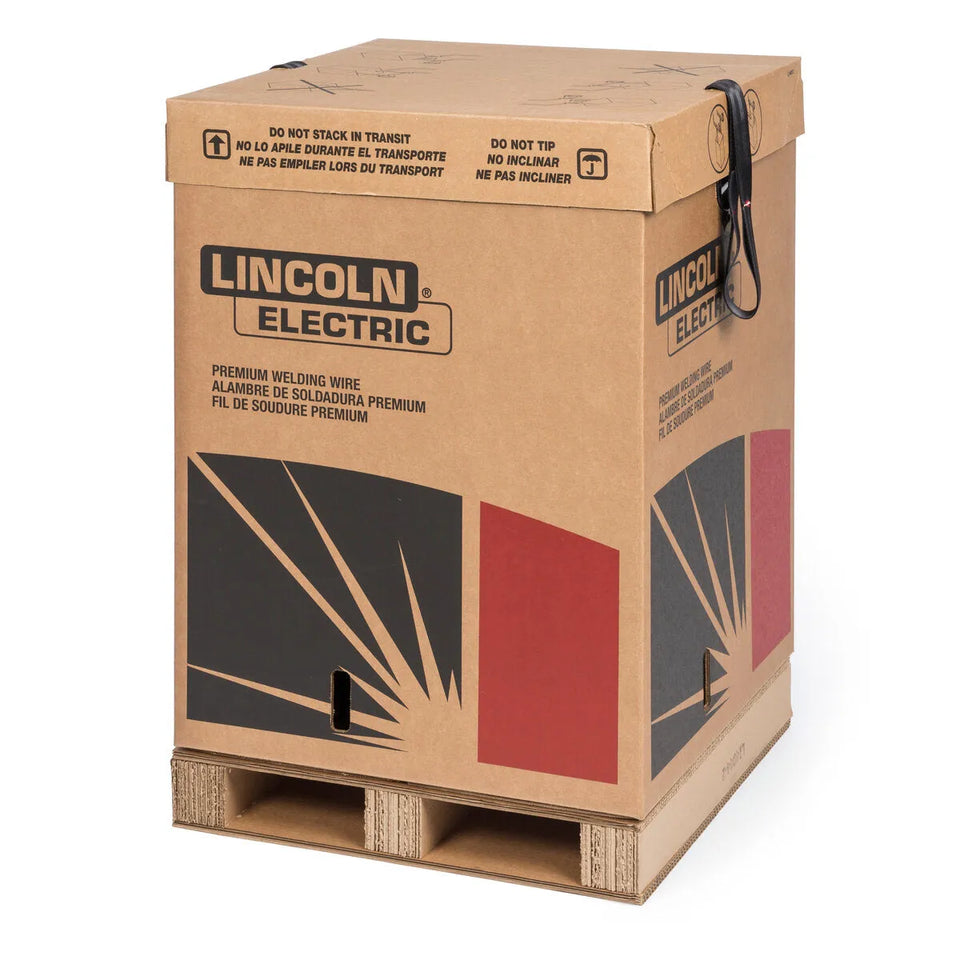

Lincoln Electric SuperArc® L-50 MIG Wire 0.045” Diameter 1000lb Accu-Pak Box - ED032844

$4,550.00
Lincoln Electric SuperArc® L-50 MIG Wire 0.045” Diameter 1000lb Accu-Pak Box - ED032844 features copper-coated construction for superior feeding and extended tip life. Ideal for carbon steel welding with support for multiple transfer modes, including short-circuiting and pulsed spray.
AWS / Classification: ER70S-3

Financing / Leasing Available

Welding Equipment And Industrial Supplies Financing

Welding Mart has partnered with Clicklease to provide industry-leading welding equipment for a low monthly payment customized to fit your budget. Our welder financing services allow professionals to outfit their shop with the right welding machines and systems to serve customers. Whether you need a new MIG welder, a rental TIG welder, a virtual welding training simulator or something else, rent-to-own welders from leading brands such as Lincoln Electric and Miller are a great solution.

It's never been easier to afford the equipment you need to grow your business.
Apply in just four minutes and get real approval in seconds - there's no hard credit pull and no documents are needed.

Benefits of Lease-to-Own Welders

A welding machine rental is great for short-term and long-term business needs. Welder leases and rentals let companies stay on top of the latest welding technology without draining their operating budget by paying upfront, in full for new machines. At the end of the lease period, you can either purchase the welding equipment outright or return it to WeldingMart. You can also buy the equipment anytime within the first year of your lease - see below for more details.

Welder rentals can also have tax benefits. In many cases, the payments you make when you lease or finance a welding machine for business or educational purposes are tax-deductible. This frees up even more resources to get the equipment, supplies and personnel that welding businesses need.



More Information

Welding machine financing is available 24/7 so you can apply whenever it's convenient for you. It will only take about four minutes of your time.

Once approved, you'll have the option to select the term that best fits your budget and, if approved for more than you request, our calculator makes it easy to see how your payments change for any additional items you add to your lease. eDocs are available immediately, allowing you to order your new gear within minutes.

Have additional questions? Contact us to speak with a member of the WeldingMart team.

DETAILS

Lincoln Electric SuperArc® L-50 MIG Wire 0.045” Diameter 1000lb Accu-Pak Box - ED032844

The Lincoln Electric SuperArc® L-50 - ED032844 is a premium copper-coated MIG welding wire designed for superior performance on carbon steel base materials with a 50,000 psi (345 MPa) yield strength. With moderate levels of manganese and silicon, this wire offers excellent deoxidization on clean to lightly scaled surfaces, ensuring smooth feeding and exceptional arc stability. The durable copper coating extends contact tip life, making it ideal for continuous operation in demanding welding environments. This wire supports multiple transfer modes, including short-circuiting, globular, axial spray, and pulsed spray, providing versatility across various applications. The 0.045” diameter and 1000lb Accu-Pak Box make it perfect for large-scale fabrication and industrial projects.

  • Copper-coated wire for superior feeding and long contact tip life
  • Moderate manganese and silicon content for deoxidization on clean to light mill scale surfaces
  • Exceptional arc stability for smooth and consistent welds
  • Supports short-circuiting, globular, axial spray, and pulsed spray transfer modes
  • 0.045” diameter wire in a 1000lb Accu-Pak Box for high-volume applications

Lincoln Electric SuperArc® L-50 MIG Wire 0.045” Diameter 1000lb Accu-Pak Box - ED032844

The Lincoln Electric SuperArc® L-50 - ED032844 is a premium copper-coated MIG welding wire designed for superior performance on carbon steel base materials with a 50,000 psi (345 MPa) yield strength. With moderate levels of manganese and silicon, this wire offers excellent deoxidization on clean to lightly scaled surfaces, ensuring smooth feeding and exceptional arc stability. The durable copper coating extends contact tip life, making it ideal for continuous operation in demanding welding environments. This wire supports multiple transfer modes, including short-circuiting, globular, axial spray, and pulsed spray, providing versatility across various applications. The 0.045” diameter and 1000lb Accu-Pak Box make it perfect for large-scale fabrication and industrial projects.

  • Copper-coated wire for superior feeding and long contact tip life
  • Moderate manganese and silicon content for deoxidization on clean to light mill scale surfaces
  • Exceptional arc stability for smooth and consistent welds
  • Supports short-circuiting, globular, axial spray, and pulsed spray transfer modes
  • 0.045” diameter wire in a 1000lb Accu-Pak Box for high-volume applications

Includes
What's Included
  • (1) 1000 lb Accu-Pak® Box

Specifications
CONFORMANCE
CONFORMANCES SPECIFICATION CLASSIFICATION
AWS AWS A5.18 ER70S-3
ABS ABS - Part 2 3YSA H5
CWB CSA W48 B-G 49A 3 C1 S3 (B-G 49A 3 C1 G3)
DNV-GL DNV - 2.9 III YMS H5
LR LR - Chapter 11 3YS H5
MIL MIL-E-23765/1D MIL-70S-3
MIL MIL-E-23765/1E MIL-70S-3
MECHANICAL PROPERTIES
Classification Shielding Gas Polarity Yield Strength @ 0.2% Offset, MPa (ksi) Tensile Strength, MPa (ksi) Elongation, % Charpy V-Notch, J (ft-lbs) @ -20°C (0°F) Charpy V-Notch, J (ft-lbs) @ -30°C (-20°F)
Typical Result, As-welded 100% CO2 DC+ 400 (58) 500-560 (73-81) 24 95-132 (70-98) 95-106 (70-78)
WIRE COMPOSITION
Classification %C %Cr %Mn %Mo %Ni %P %S %Si %Total Cu %V
ER70S-3 Requirement 0.06 - 0.15 0.15 max. 0.90 - 1.40 0.15 max. 0.15 max. 0.025 max. 0.035 max. 0.45 - 0.75 0.50 max. 0.03 max.
Typical Result 0.06-0.11 0.02-0.04 1.15-1.24 0.02 max. 0.01-0.04 0.004-0.012 0.004-0.011 0.44-0.62 0.00 max. 0.12-0.27
TYPICAL OPERATING PROCEDURES
Diameter Transfer Mode Shielding Gas Polarity CTWD, mm (in.)⁽¹⁾ Wire Feed Speed, m/min (in/min) Voltage, volts Approx. Current, amps Melt-off Rate, kg/hr (lb/hr)
0.030 in (0.8 mm) Short Circuit Transfer 100% CO2 DC+ 9-12 (3/8-1/2) 1.9 (75) 17 35 0.4 (0.9)
0.030 in (0.8 mm) Short Circuit Transfer 100% CO2 DC+ 9-12 (3/8-1/2) 3.8 (150) 18 70 0.8 (1.8)
0.030 in (0.8 mm) Short Circuit Transfer 100% CO2 DC+ 9-12 (3/8-1/2) 7.6 (300) 22 130 1.6 (3.6)
0.035 in (0.9 mm) Short Circuit Transfer ⁽²⁾ 100% CO2 DC+ 9-12 (3/8-1/2) 2.5 (100) 18 80 0.7 (1.6)
0.035 in (0.9 mm) Short Circuit Transfer ⁽²⁾ 100% CO2 DC+ 9-12 (3/8-1/2) 3.8 (150) 19 120 1.1 (2.4)
0.035 in (0.9 mm) Short Circuit Transfer ⁽²⁾ 100% CO2 DC+ 9-12 (3/8-1/2) 6.4 (250) 22 175 1.8 (4.0)
0.035 in (0.9 mm) Spray Transfer 90% Ar / 10% CO2 DC+ 12-19 (1/2-3/4) 9.5 (375) 23 195 2.7 (6.0)
0.035 in (0.9 mm) Spray Transfer 90% Ar / 10% CO2 DC+ 12-19 (1/2-3/4) 12.7 (500) 29 230 3.6 (8.0)
0.035 in (0.9 mm) Spray Transfer 90% Ar / 10% CO2 DC+ 12-19 (1/2-3/4) 15.2 (600) 30 275 4.4 (9.6)
0.045 in (1.1 mm) Short Circuit Transfer ⁽²⁾ 100% CO2 DC+ 12-19 (1/2-3/4) 3.2 (125) 19 145 1.5 (3.4)
0.045 in (1.1 mm) Short Circuit Transfer ⁽²⁾ 100% CO2 DC+ 12-19 (1/2-3/4) 3.8 (150) 20 165 1.8 (4.0)
0.045 in (1.1 mm) Short Circuit Transfer ⁽²⁾ 100% CO2 DC+ 12-19 (1/2-3/4) 5.1 (200) 21 200 2.4 (5.4)
0.045 in (1.1 mm) Spray Transfer 90% Ar / 10% CO2 DC+ 12-19 (1/2-3/4) 8.9 (350) 27 285 4.2 (9.2)
0.045 in (1.1 mm) Spray Transfer 90% Ar / 10% CO2 DC+ 12-19 (1/2-3/4) 12.1 (475) 30 335 5.7 (12.5)
0.045 in (1.1 mm) Spray Transfer 90% Ar / 10% CO2 DC+ 12-19 (1/2-3/4) 12.7 (500) 30 340 6.0 (13.2)
0.052 in (1.3 mm) Spray Transfer 90% Ar / 10% CO2 DC+ 12-19 (1/2-3/4) 7.6 (300) 30 300 4.8 (10.6)
0.052 in (1.3 mm) Spray Transfer 90% Ar / 10% CO2 DC+ 12-19 (1/2-3/4) 8.1 (320) 30 320 5.2 (11.5)
0.052 in (1.3 mm) Spray Transfer 90% Ar / 10% CO2 DC+ 12-19 (1/2-3/4) 12.3 (485) 32 430 7.8 (17.1)
1/16 in (1.6 mm) Spray Transfer 90% Ar / 10% CO2 DC+ 12-25 (1/2-1) 5.3 (210) 25 325 4.8 (10.7)
1/16 in (1.6 mm) Spray Transfer 90% Ar / 10% CO2 DC+ 12-25 (1/2-1) 6.0 (235) 27 350 5.4 (12.0)
1/16 in (1.6 mm) Spray Transfer 90% Ar / 10% CO2 DC+ 12-25 (1/2-1) 7.4 (290) 28 430 6.7 (14.8)
LECO Diameter 0.045 in (1.1 mm)
LECO Package 1000 lb Accu-Pak® Box
Diameter (in) 0.045

Lincoln Electric SuperArc® L-50 MIG Wire 0.045” Diameter 1000lb Accu-Pak Box - ED032844

The Lincoln Electric SuperArc® L-50 - ED032844 is a premium copper-coated MIG welding wire designed for superior performance on carbon steel base materials with a 50,000 psi (345 MPa) yield strength. With moderate levels of manganese and silicon, this wire offers excellent deoxidization on clean to lightly scaled surfaces, ensuring smooth feeding and exceptional arc stability. The durable copper coating extends contact tip life, making it ideal for continuous operation in demanding welding environments. This wire supports multiple transfer modes, including short-circuiting, globular, axial spray, and pulsed spray, providing versatility across various applications. The 0.045” diameter and 1000lb Accu-Pak Box make it perfect for large-scale fabrication and industrial projects.

  • Copper-coated wire for superior feeding and long contact tip life
  • Moderate manganese and silicon content for deoxidization on clean to light mill scale surfaces
  • Exceptional arc stability for smooth and consistent welds
  • Supports short-circuiting, globular, axial spray, and pulsed spray transfer modes
  • 0.045” diameter wire in a 1000lb Accu-Pak Box for high-volume applications

Lincoln Electric SuperArc® L-50 MIG Wire 0.045” Diameter 1000lb Accu-Pak Box - ED032844

The Lincoln Electric SuperArc® L-50 - ED032844 is a premium copper-coated MIG welding wire designed for superior performance on carbon steel base materials with a 50,000 psi (345 MPa) yield strength. With moderate levels of manganese and silicon, this wire offers excellent deoxidization on clean to lightly scaled surfaces, ensuring smooth feeding and exceptional arc stability. The durable copper coating extends contact tip life, making it ideal for continuous operation in demanding welding environments. This wire supports multiple transfer modes, including short-circuiting, globular, axial spray, and pulsed spray, providing versatility across various applications. The 0.045” diameter and 1000lb Accu-Pak Box make it perfect for large-scale fabrication and industrial projects.

  • Copper-coated wire for superior feeding and long contact tip life
  • Moderate manganese and silicon content for deoxidization on clean to light mill scale surfaces
  • Exceptional arc stability for smooth and consistent welds
  • Supports short-circuiting, globular, axial spray, and pulsed spray transfer modes
  • 0.045” diameter wire in a 1000lb Accu-Pak Box for high-volume applications
