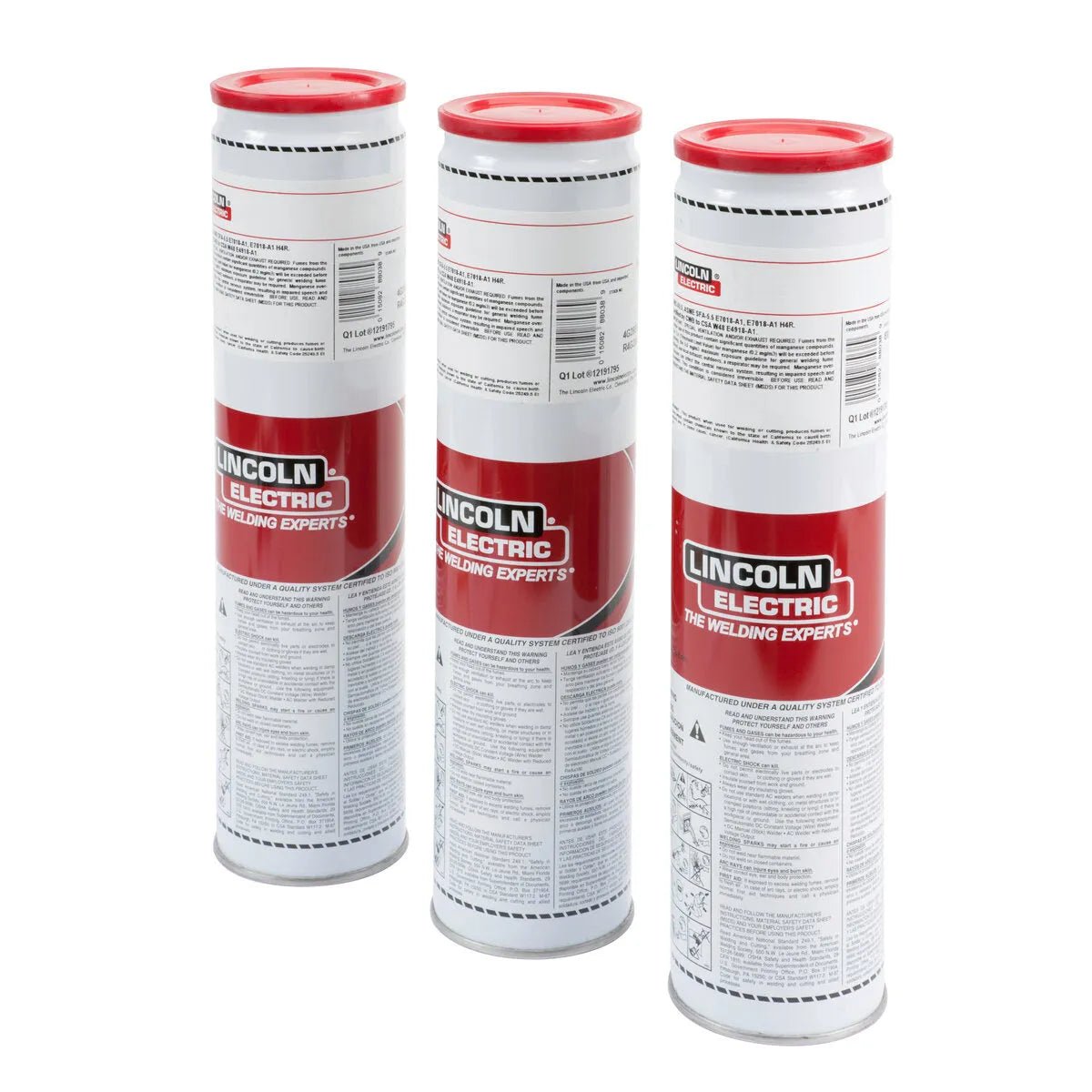

Lincoln Excalibur 2594 is an AWS A5.4/A5.4M E2594-16 SMAW stick electrode family with 110 ksi minimum tensile and AC or DC+, all positions operation. WeldingMart stocks 4 package and diameter variants of this grade, all sharing the same AWS classification - select the diameter and package format that fits your application below.
E2594-16 is an AWS A5.4 super-duplex stainless SMAW electrode with 110 ksi minimum tensile and ~25 Cr / 9.5 Ni / 4 Mo / 0.25 N chemistry, designed for welding super-duplex grades 2507 (UNS S32750) and Zeron 100 (UNS S32760) used in offshore oil and gas, chemical-process, and seawater service. Pitting Resistance Equivalent Number (PREN) exceeds 40, delivering exceptional pitting and crevice corrosion resistance. Heat input control (0.5-1.5 kJ/mm) and interpass temperature ≤300 deg F are critical to maintain austenite-ferrite balance. Runs on AC or DC+ in all positions.
| AWS classification | AWS A5.4/A5.4M E2594-16 |
|---|---|
| Minimum tensile | 110 ksi minimum |
| Polarity / position | AC or DC+, all positions |
| Available diameters | 3/32 in through 1/4 in (varies by package) |
| Package formats | see size variants below |
- Brand-authorized distributor - factory-fresh stock, full warranty pass-through
- Multiple diameter and package variants in stock - select the SKU below that matches your job
- US warehouse fulfillment, 1 business day ship time
- 30-day returns on unopened cartons
