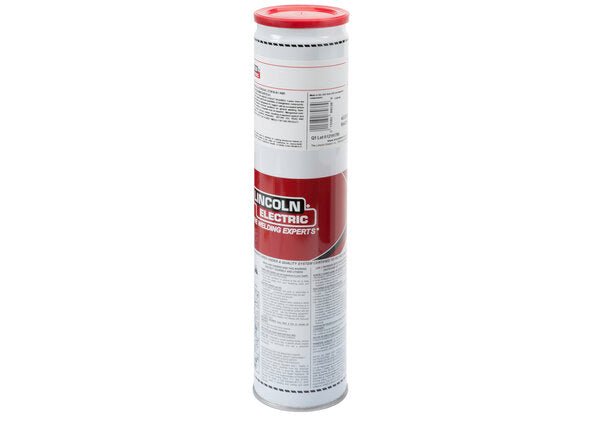

Lincoln Excalibur 308H is an AWS A5.4/A5.4M E308-16 SMAW stick electrode family with 75 ksi minimum tensile and AC or DC+, all positions operation. WeldingMart stocks 4 package and diameter variants of this grade, all sharing the same AWS classification - select the diameter and package format that fits your application below.
E308-16 is an AWS A5.4 austenitic stainless SMAW electrode with 75 ksi minimum tensile and ~19.5 Cr / 10 Ni chemistry, designed for welding 304 and 304H stainless steel and similar austenitic grades. The 308H variant has carbon controlled to 0.04-0.08% for high-temperature creep strength in 304H elevated-service applications (boiler superheaters, steam piping). The -16 lime-titania coating delivers smooth arc and easy slag removal. Runs on AC or DC+ in all positions.
| AWS classification | AWS A5.4/A5.4M E308-16 |
|---|---|
| Minimum tensile | 75 ksi minimum |
| Polarity / position | AC or DC+, all positions |
| Available diameters | 3/32 in through 1/4 in (varies by package) |
| Package formats | see size variants below |
- Brand-authorized distributor - factory-fresh stock, full warranty pass-through
- Multiple diameter and package variants in stock - select the SKU below that matches your job
- US warehouse fulfillment, 1 business day ship time
- 30-day returns on unopened cartons
