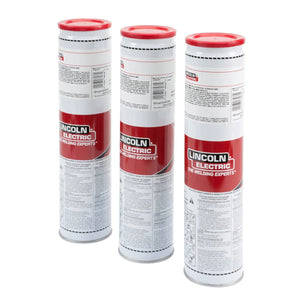

Lincoln Excalibur 320LR is an AWS A5.4/A5.4M E320LR-16 SMAW stick electrode family with 75 ksi minimum tensile and AC or DC+, all positions operation. WeldingMart stocks 3 package and diameter variants of this grade, all sharing the same AWS classification - select the diameter and package format that fits your application below.
E320LR-16 is an AWS A5.4 niobium-stabilized fully-austenitic stainless SMAW electrode with 75 ksi minimum tensile and ~20 Cr / 34 Ni / 2.5 Mo / 3.5 Cu chemistry, designed for welding 20Cb-3 / Alloy 20 (UNS N08020) and similar high-nickel-molybdenum-copper alloys used in sulfuric acid and corrosive chemical service. The LR (low residuals) designation tightens silicon, phosphorus, and sulfur limits to reduce hot cracking. Runs on AC or DC+ in all positions.
| AWS classification | AWS A5.4/A5.4M E320LR-16 |
|---|---|
| Minimum tensile | 75 ksi minimum |
| Polarity / position | AC or DC+, all positions |
| Available diameters | 3/32 in through 1/4 in (varies by package) |
| Package formats | see size variants below |
- Brand-authorized distributor - factory-fresh stock, full warranty pass-through
- Multiple diameter and package variants in stock - select the SKU below that matches your job
- US warehouse fulfillment, 1 business day ship time
- 30-day returns on unopened cartons
