Low alloy electrode designed for low temperature applications
Features
- Designed to produce a nominal 2.25% nickel deposit
- Premium arc performance
- Easy strike, re-strike and slag removal
Lincoln Electric Excalibur 8018 ED030876 Stick Electrode 14" –...
$450.79
$528.50
Unit price
/
Unavailable
Overview
Specifications
| Feature | Value |
|---|---|
| CONFORMANCES | SPECIFICATIONCLASSIFICATION |
| AWS | AWS A5.5E8018-C1 H4R |
| CWB | CSA W48E5518-C1-H4 |
| Classification | Yield Strength @ 0.2% Offset, MPa (ksi)Tensile Strength, MPa (ksi)Elongation, %Charpy V-Notch, J (ft-lbs) @ -60°C (-75°F)Hardness Rockwell B |
| E8018-C1 H4R Requirement | 460 (67) min.550 (80) min.19 min.27 (20) min. |
| Typical Result, 1 hour @ 605°C (1125°F) | 460-560 (67-81)560-660 (82-96)23-3050-138 (37-102)88-94 |
| Classification | %C%Mn%Ni%P%S%SiDiffusible Hydrogen, mL/100g Weld Metal1800F H2O - As received1800F H2O - After 9 hrs at 80F/80%RH |
| E8018-C1 H4R Requirement | 0.12 max.1.25 max.2.00 - 2.750.03 max.0.03 max.0.80 max.4 max.0.2 max.0.4 max. |
| Typical Result | 0.05-0.110.92-1.222.04-2.350.01-0.020.01 max.0.23-0.381-40.2 max.0.1-0.4 |
| Diameter | Polarity⁽¹⁾Current, Amps |
| 3/32 in (2.4 mm) | DC+70-110 |
| 3/32 in (2.4 mm) | AC80-120 |
| 1/8 in (3.2 mm) | DC+90-160 |
| 1/8 in (3.2 mm) | AC100-160 |
| 5/32 in (4.0 mm) | DC+130-210 |
| 5/32 in (4.0 mm) | AC140-210 |
| 3/16 in (4.8 mm) | DC+180-300 |
| 3/16 in (4.8 mm) | AC200-300 |
| 7/32 in (5.6 mm) | DC+250-330 |
| 7/32 in (5.6 mm) | AC270-370 |
| 1/4 in (6.4 mm) | DC+300-400 |
| 1/4 in (6.4 mm) | AC325-430 |
| Note | |
| ⁽¹⁾ Preferred polarity is listed first. | |
| LECO Diameter | 3/32 x 14 in (2.4 x 350 mm) |

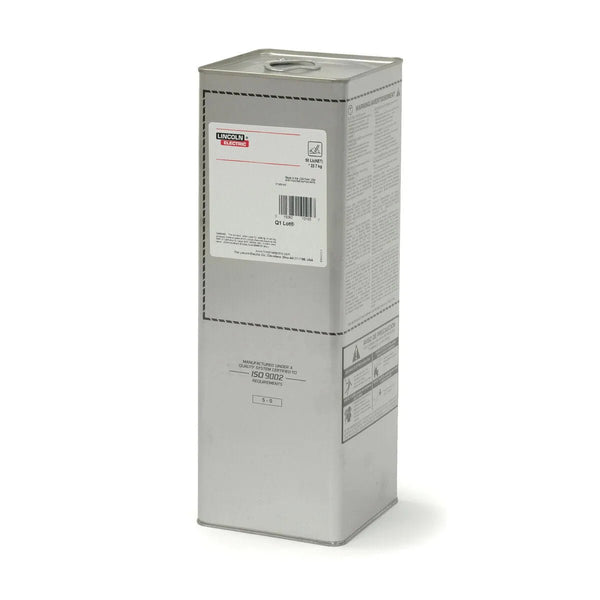

| LECO Package | 50 lb Easy Open Can |
| Diameter (in) | 3/32 |
| Length (in) | 14 |
