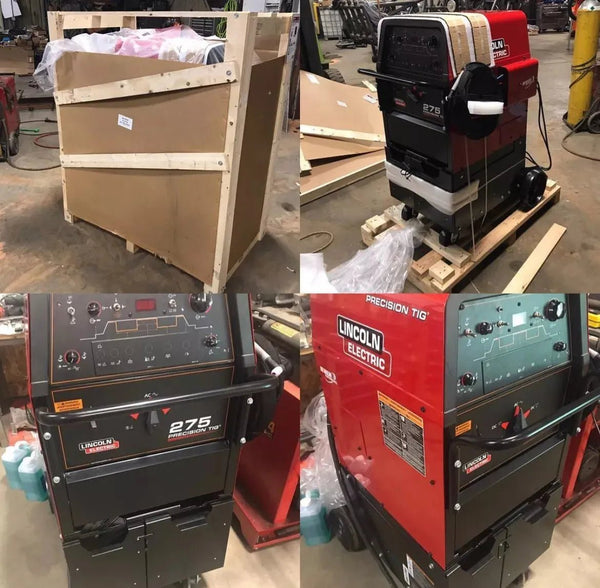

The Lincoln Factory Demo Precision TIG 275 TIG Welder Ready-Pak delivers exceptional welding performance with unmatched versatility, offering the widest operating range in its class with an extraordinary 2 to 340 amp output capability. This comprehensive welding solution incorporates Lincoln Electric's patented Micro-Start II technology, a revolutionary advancement that significantly enhances arc initiation and stability throughout the welding process, enabling operators to achieve remarkably precise welds and superior crater fills across diverse material types and thicknesses. The Ready-Pak configuration provides a complete welding solution with all essential components assembled and ready for immediate implementation, allowing fabricators to quickly deploy this versatile technology across diverse applications. This factory demonstration unit showcases the Precision TIG 275's exceptional capabilities in a ready-to-use package, making it the ideal solution for maintenance applications, fabrication operations, and industrial facilities requiring professional-grade TIG and Stick welding performance with simplified setup and operation.
The Precision TIG 275 excels through its intuitive operator interface that dramatically simplifies the welding process while maintaining advanced capabilities for experienced welders. The straightforward control panel allows operators to quickly select welding mode and polarity before beginning production, reducing setup time and enhancing productivity. For aluminum welding applications, the system's innovative AC Auto-Balance technology automatically optimizes the critical cleaning-to-penetration ratio, ensuring consistent, high-quality welds without requiring constant operator intervention. When applications demand precise control, the system enables complete manual adjustment of the AC balance, allowing skilled operators to increase penetration for thicker materials or enhance cleaning action when working with heavily oxidized surfaces. The optional Advanced Pulse Control panel upgrade integrates sophisticated pulsing capabilities, enabling precise regulation of heat input to minimize material distortion on thin sections while also moderating filler metal deposition for consistent, aesthetically superior bead appearance.
The Lincoln Precision TIG 275 Ready-Pak delivers exceptional operational versatility through its comprehensive feature set designed for professional welding environments. The system's remarkable output range spans from an exceptionally low 2 amps for delicate thin materials up to a robust 340 amps for heavy-duty applications, enabling fabricators to address virtually any TIG or Stick welding challenge with a single machine. Beyond its advanced TIG capabilities, the system provides outstanding Stick welding performance with the capacity to handle electrodes up to 5/32 inch (4.0 mm) in diameter, making it a truly multi-process solution for diverse fabrication requirements. The thoughtful design includes convenient side-mounted torch holder and connection panel that provides organized cable management while protecting critical components from damage during transport or when not in use. The multi-voltage input capability accommodates 208V, 230V, and 460V power sources, providing exceptional installation flexibility across diverse workshop environments. This comprehensive approach to TIG and Stick welding makes the Precision TIG 275 Ready-Pak an exceptionally versatile solution for applications ranging from construction and automotive repair to food and beverage equipment manufacturing, marine fabrication, and pharmaceutical equipment production—delivering professional-grade capabilities with simplified operation for welders of all skill levels.
- Industry-leading operating range spanning from 2 to 340 amps for exceptional application versatility.
- Patented Micro-Start II technology delivering superior arc initiation, stability, and precision.
- Innovative AC Auto-Balance automatically optimizing aluminum welding performance.
- Manual AC Balance control enabling precise adjustment of cleaning action and penetration.
- Optional Advanced Pulse Control panel for minimizing distortion and controlling bead appearance.
- Outstanding Stick welding capabilities supporting electrodes up to 5/32 inch (4.0 mm).
- Practical side-mounted torch holder and connections for enhanced cable management.
- Multi-voltage input compatibility supporting 208V, 230V, and 460V power sources.
- Complete Ready-Pak configuration providing all essential components for immediate implementation.
| Dimensions (H x W x D) | 49.7 in x 28 in x 41 in (1262 mm x 711 mm x 1041 mm) |
| Net Weight | 683 lbs (309.809 kg) |
| Input Voltage | 208/230/460 |
| Input Current | 40% Duty Cycle: 104/94/47A, 60% Duty Cycle: 86/78/39 |
| Input Hertz | 60 |
| Input Phase | 1 |
| Input Power | 208/230/460/1/60 |
| Mode Icon | CC |
| Output Range | 2-340A Max OCV: 75V |
| Polarity | AC/DC |
| Included Components | Precision TIG 275 Power Source TIG Torch and Cable Assembly Work Clamp and Cable Gas Regulator/Flowmeter Gas Hose Electrode Holder and Cable Accessory Kit |
| Typical Application | Construction Automotive Brewery Distillery General Fabrication Maintenance & Repair Marine Applications Marine Fabrication & Repair Pharmaceutical Equipment Repair Welding Shipbuilding |
| Warranty | 3 Years |
