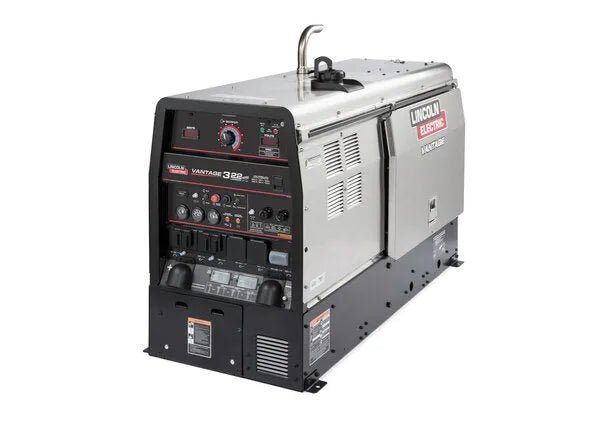

The Vantage 322 is a versatile welder/generator offering up to 400 amps of welding output and 11 kW of auxiliary power. Featuring a compact design and multi-process welding capabilities, the machine allows operators to handle a wide range of tasks from stick or wire welding to powering jobsite tools. Designed with dependability in mind, the Vantage 322 has field-proven toughness to maintain uptime. The Vantage 322 provides excellent value, which makes the ideal choice for construction teams, pipe rig owners, and rental fleet managers. Purchase one of these machines today!
The Vantage 322 delivers exceptional compact versatility with up to 400 amps (IEC rated at 300 amps) of welding current to tackle numerous welding and carbon arc gouging applications. Operators can select from five basic process modes including CC-Stick, Downhill Pipe, DC Touch Start TIG, CV-Wire, or Arc Gouging mode, which maximizes output for up to 5/16 in. (8.0 mm) carbon rods. This multi-functional machine also provides impressive generator output with up to 11 kW of continuous three-phase power to run industrial tools such as plasma cutters, pumps, or inverter welders, making it an all-in-one solution for diverse jobsite requirements.
Built with patented Chopper Technology, the Vantage 322 delivers premium arc performance with minimized spatter for stick or pipe welding as well as enhanced gouging performance that prevents the engine from stalling, resulting in smooth material removal. The unit is engineered for reliable operations with field-proven ruggedness and durability to meet the most challenging job site needs and harshest environments. Powered by a 22 hp, naturally aspirated Kubota diesel engine, the Vantage 322 runs smooth and quiet while meeting EPA Tier 4 Final compliance standards. The innovative service access features include a lockable and removable sliding access door to service the engine and internal components, a battery drawer on front of machine for quick access, and a top-mounted radiator cover that provides convenient maintenance access. With a large 20 US gal. (75.7 L) fuel tank compared to smaller 11 US gal. (41.6 L) tanks in competitive machines, operators can run longer between fill-ups, maximizing productivity and reducing downtime on demanding job sites.
- Compact Versatility – Offers up to 400 amps (IEC rated at 300 amps) of welding current to tackle numerous welding and carbon arc gouging applications
- Generator Output – Provides up to 11 kW of continuous three-phase power to run industrial tools
- Patented Chopper Technology – Experience premium arc performance with minimized spatter
- Reliable Operations – Engineered tough and field proven for ruggedness and durability
- Industrial Diesel Engine – Powered by a 22 hp, naturally aspirated Kubota diesel engine
- Innovative Service Access – Lockable and removable sliding access door and convenient maintenance points
- Run Longer Between Fill Ups – Features a large 20 US gal. (75.7 L) fuel tank
| Dimensions (H x W x D) | 35.9 in x 25.3 in x 60 in (913 mm x 642 mm x 1524 mm) |
| Net Weight | 1035 lbs (469 kg) |
| Machines Processes | Stick (SMAW) Gouging (CAC-A) TIG (GTAW) MIG (GMAW) Flux-Cored Self-Shielded (FCAW-S) Flux-Cored Gas-Shielded (FCAW-G) |
| Open Circuit Voltage | 73 Peak OCV at 1800 RPM |
| IEC Rating | 300A / 32V / 100% @ 104°F (40°C) |
| Output Range by Mode | CC-Stick: 30 - 400 Amps Downhill Pipe (CC): 40 - 300 Amps Touch Start TIG: 20 - 250 Amps CV-Wire: 14 - 32 Volts Arc Gouging: 90 - 300 Amps |
| Rated Gouging Carbon Diameter | 5/16" (8.0 mm) |
| Single Phase Auxiliary Output | 10,000 Watts Continuous, 120/240V |
| Three Phase Auxiliary Output | 11,000 Watts Continuous, 240V |
| Auxiliary Output Frequency | 60 Hz |
| Receptacle Types | NEMA 5-20R NEMA 14-50R NEMA 15-50R |
| Engine Brand & Model | Kubota V1505 |
| Engine Description | 4 Cylinder Naturally Aspirated Water Cooled Diesel Engine |
| Engine Horsepower | 22.0 hp (16.4 kW) |
| Engine Block Size & Displacement | 91 cu. in. (1.5 L) Bore x Stroke - 3.1 in x 3.1 in (78 mm x 78 mm) |
| Emissions Rating | US EPA Tier 4 Final |
| High Idle Operating Speed @ Rated Output | 1800 |
| Low Idle Operating Speed | 1350 |
| Fuel Tank Size (US gal.) | 20 US gal. |
| Fuel Tank Size (L) | 75.7 L |
| Oil Capacity (qts.) | 6.4 qts. |
| Oil Capacity (L) | 6.0 L |
| Coolant Capacity (US gal.) | 1.8 US gal. |
| Coolant Capacity (L) | 6.8 L |
| Typical Application | Construction Mining Railroad Maintenance Construction & Field Erection Maintenance & Repair Offshore Oil & Gas Power Generation Shipbuilding Structural Fabrication Structural Welding |
| Warranty | 3 Years Parts and Labor - Engine warranted separately by engine manufacturer |
Lincoln lists the welding processes for the Vantage 322 as: Stick, TIG, MIG, Flux-Cored, Gouging. Source: Lincoln spec sheet E6.209.
Yes. Lincoln publishes the auxiliary AC generator output for the Vantage 322 as: 1-Phase: 11.5 kW Peak, 10 kW Continuous, 120/240V AC, 60Hz; 3-Phase: 12.5 kW Peak, 11 kW Continuous, 240V, 60Hz (1-Phase 120/240V AC, 60Hz; 3-Phase 240V, 60Hz). Lincoln publishes these receptacles for this machine:
- 120V AC Receptacles with Sealed GFCI Modules ("Two 120V GFCI ... modules are sealed") — 120V, amperage not stated by Lincoln, NEMA type not stated by Lincoln
- 120/240V AC Full-KVA 1-Phase Receptacle — 120/240V, amperage not stated by Lincoln, NEMA type not stated by Lincoln
- 240V AC Full-KVA 3-Phase Receptacle — 240V, amperage not stated by Lincoln, NEMA type not stated by Lincoln
Source: Lincoln spec sheet E6.209.
The Vantage 322 on this listing is powered by a Kubota V1505, Tier 4 Final diesel engine, 22 HP. Kubota engines in this line are diesel only. Source: Lincoln spec sheet E6.209.
Duty cycle varies by output setting and by which rating standard is used. Lincoln publishes the Vantage 322 at 100% duty cycle on both its IEC rating (300 A / 32 V) and its Max Rating (400 A / 23 V), at 104°F (40°C).
| Welding process / output mode | Rating basis | Amperes | Volts | Duty cycle | As printed by Lincoln |
|---|---|---|---|---|---|
| Rated output (mode not broken out) | IEC Rating | 300A | 32V | 100% | IEC Rating: 300A/32V/100% |
| Rated output (mode not broken out) | Max Rating | 400A | 23V | 100% | Max Rating: 400A/23V/100% |
| Mode / parameter | Range |
|---|---|
| CC/CV | 30-400A CC/CV |
| Pipe | 40-300A Pipe |
| TIG | 20-250A TIG (Machine Specs) / 20-250A DC TIG (Product Specs) |
| Gouge | 90-300A Gouge |
| Open circuit voltage | 60V Max OCV @1890 RPM |
| Rated ambient temperature | Product Specifications column header: "Rated Output @ 104°F (40°C)". Also "ratings are at temperatures of 104°F/40°C." Derating footnote: "derate 2 volts for every 18°F (10°C) above 104°F (40°C)." |
| Specification | As printed by Lincoln |
|---|---|
| Peak / surge output | 1-Phase 11.5 kW Peak; 3-Phase 12.5 kW Peak |
| Continuous output | 1-Phase 10 kW Continuous; 3-Phase 11 kW Continuous |
| Single-phase | 1-Phase: 11.5 kW Peak, 10 kW Continuous, 120/240V AC, 60Hz |
| Three-phase | 3-Phase: 12.5 kW Peak, 11 kW Continuous, 240V, 60Hz |
| Frequency / phase | 1-Phase 120/240V AC, 60Hz; 3-Phase 240V, 60Hz |
| Receptacle | Voltage | Amperage | NEMA type |
|---|---|---|---|
| 120V AC Receptacles with Sealed GFCI Modules ("Two 120V GFCI ... modules are sealed") | 120V | NOT STATED | NOT STATED |
| 120/240V AC Full-KVA 1-Phase Receptacle | 120/240V | NOT STATED | NOT STATED |
| 240V AC Full-KVA 3-Phase Receptacle | 240V | NOT STATED | NOT STATED |
Source: Lincoln Electric publication E6.209 (Issue Date 08/18) — view the Lincoln spec sheet PDF. Figures are Lincoln's own; “NOT STATED” means Lincoln does not publish that value for this machine.

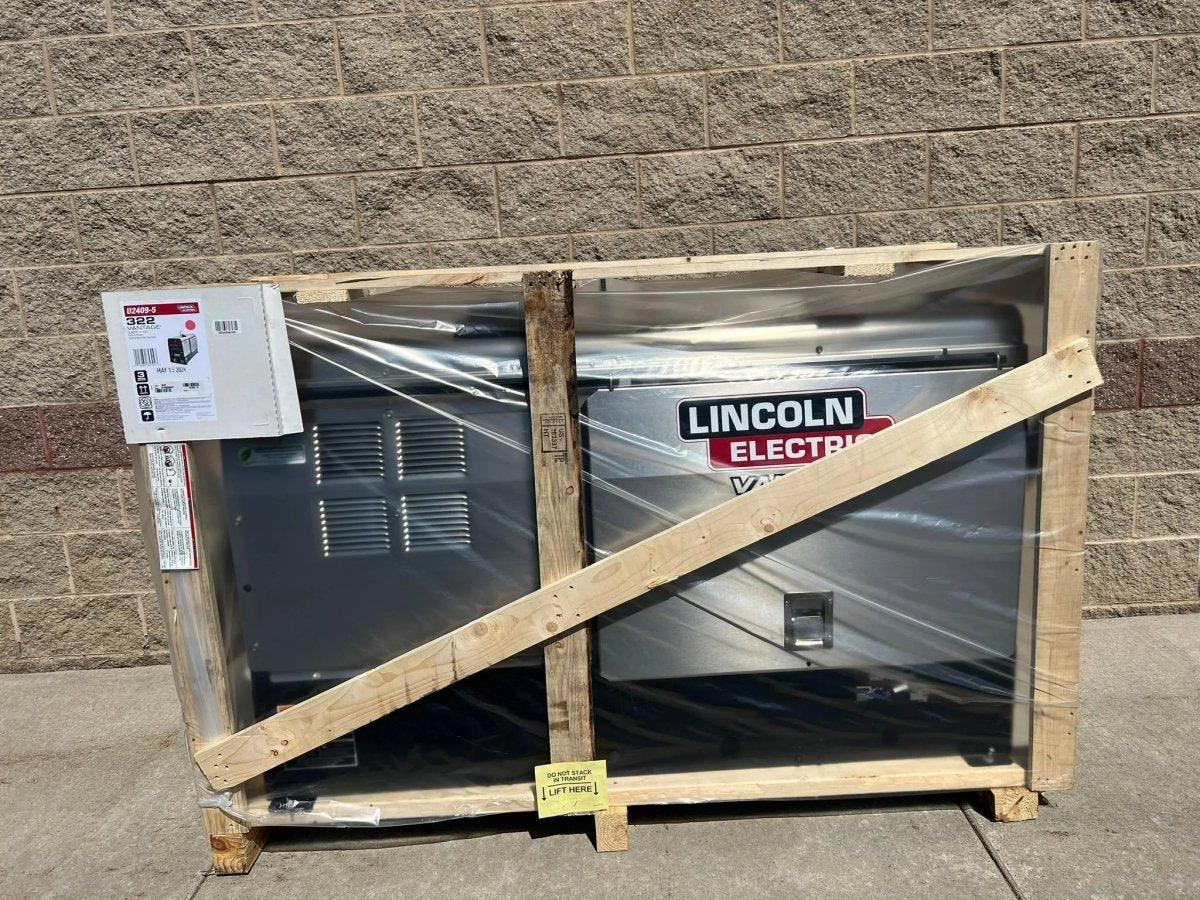

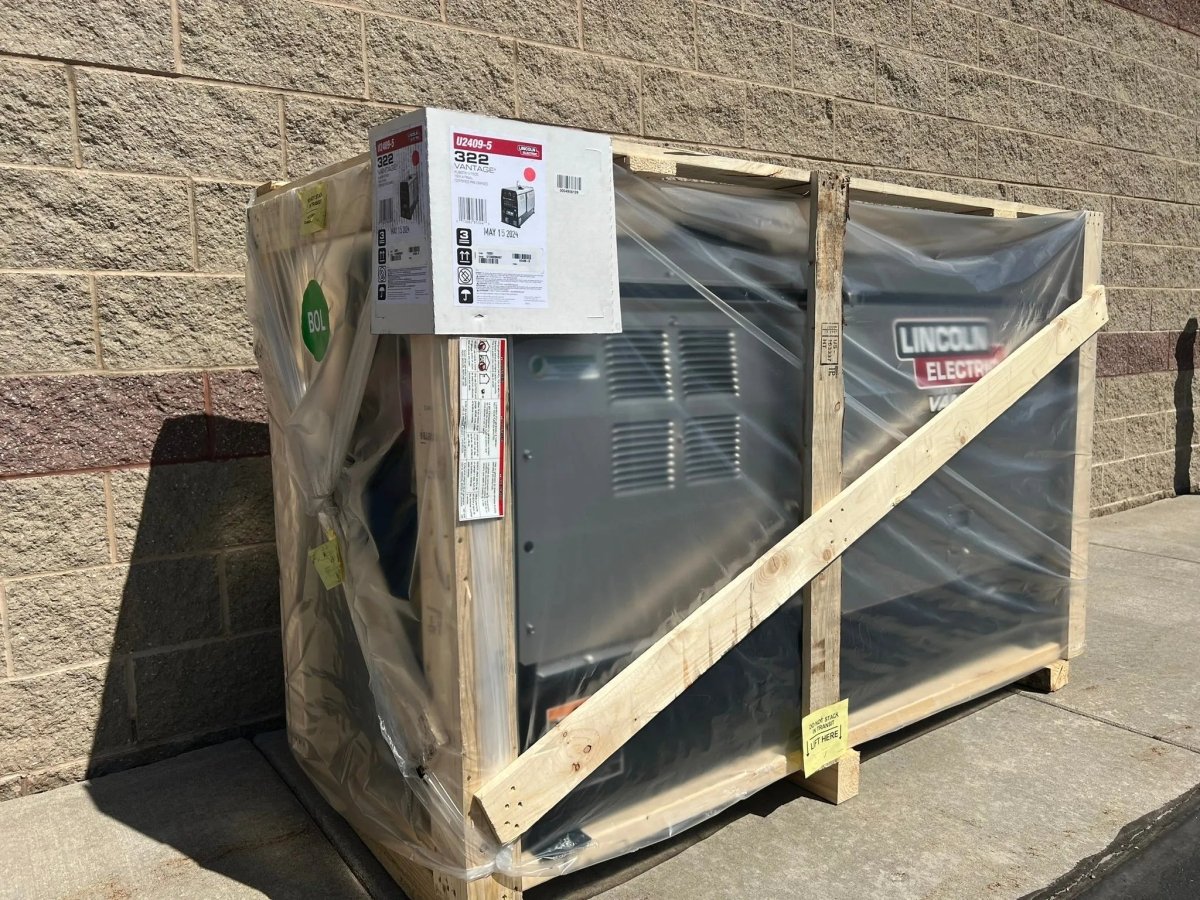

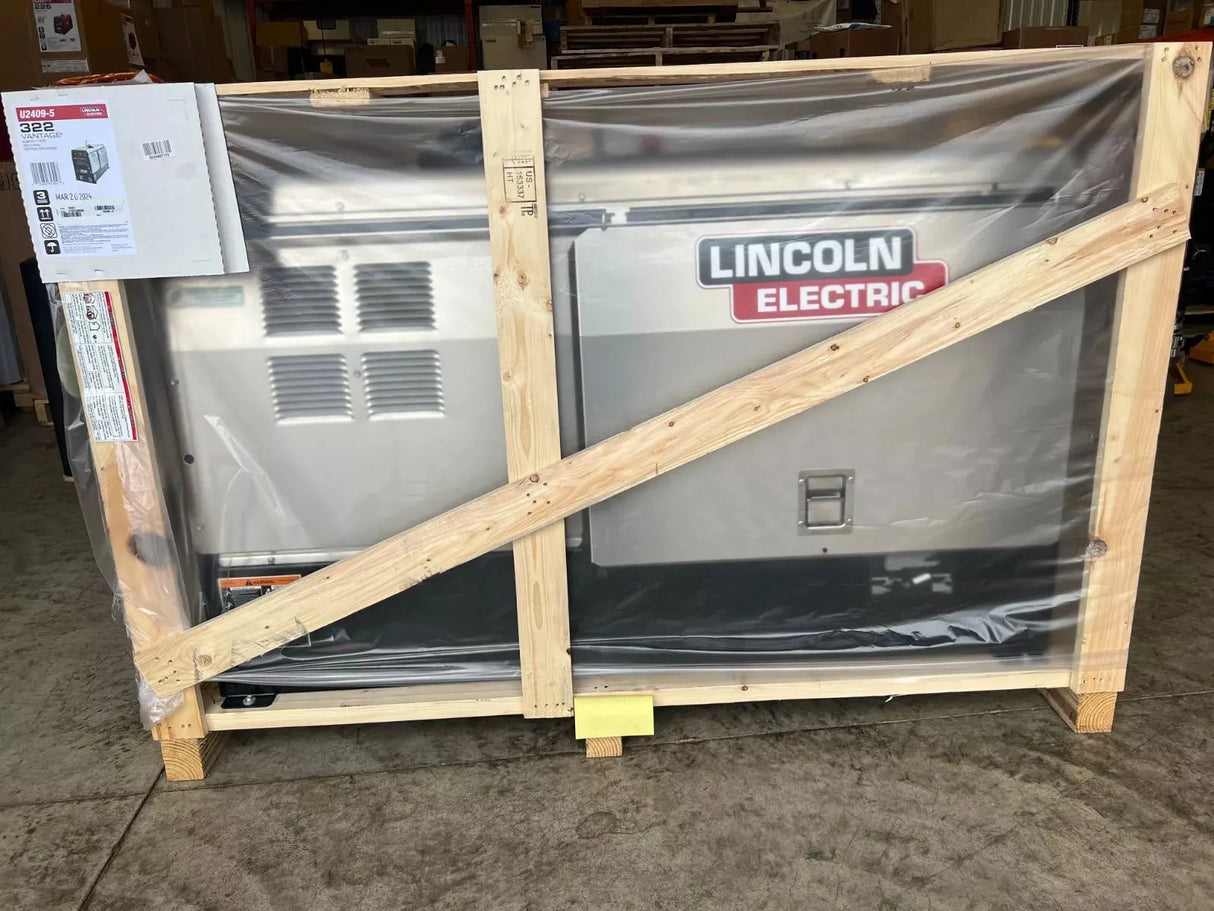

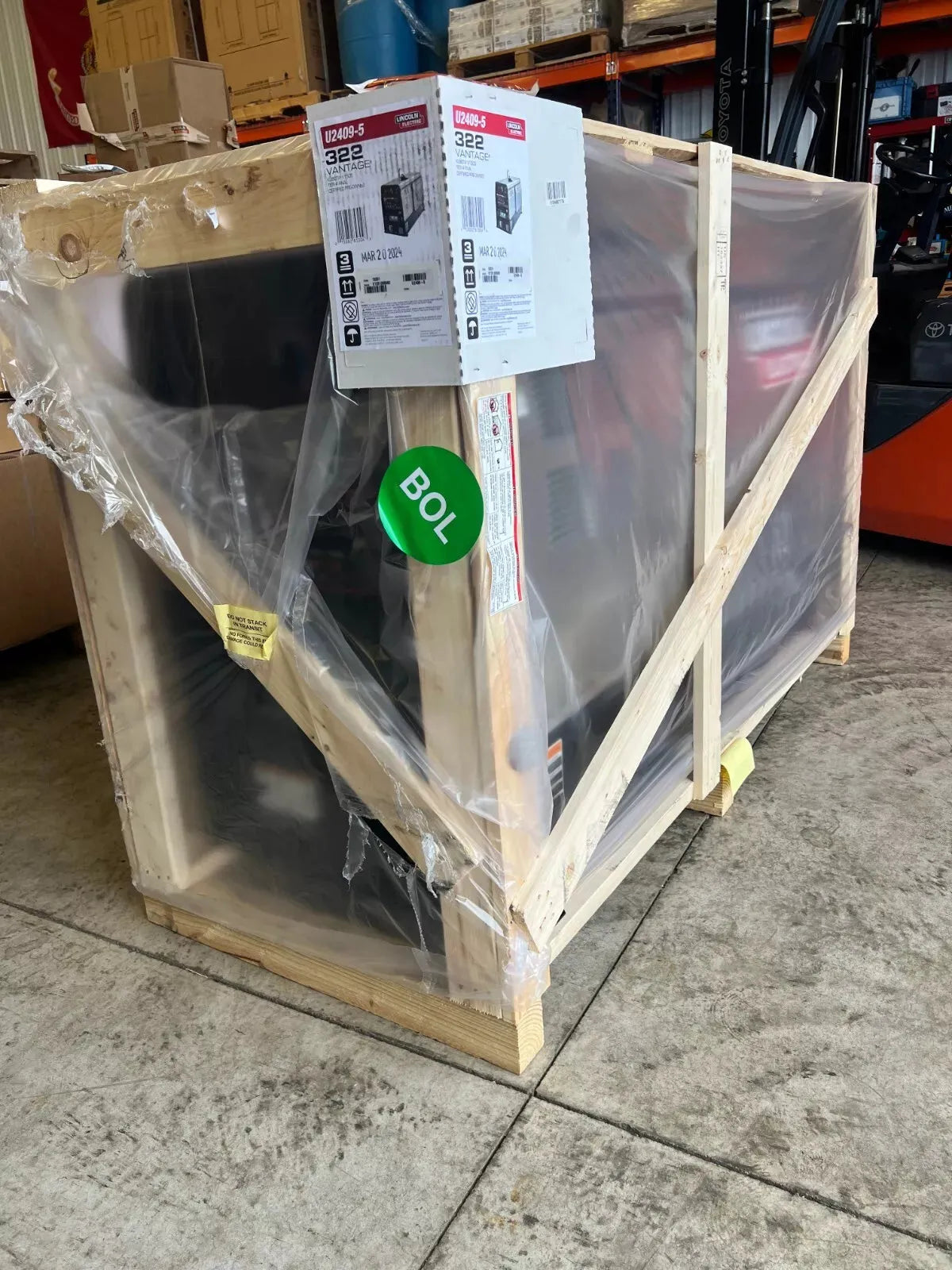

Yes — this is a factory demo or low-hour unit directly from Lincoln Electric. Units may show light cosmetic marks from display use but are mechanically sound. The warranty on this unit is the same as on a new machine. Lincoln’s Industrial Limited Warranty (form IMWS1, Apr-2026) lists a 3-year warranty period for “All Lincoln welding machines, wirefeeders & plasma cutting machines”, and Lincoln states: “Lincoln will assume both the parts and labor expense of correcting defects during the warranty period.” As on a new machine, the engine is not covered by Lincoln’s warranty — Lincoln states: “All engines and engine accessories are warranted by the engine or engine accessory manufacturer and are not covered by this warranty.” This machine’s Kubota V1505 engine is warranted by Kubota: “USA - 2 Year/2000 Hours and 3rd Year Major Components.”, and that term “BEGINS ON DATE OF PURCHASE BY END USER.” Lincoln directs buyers to the engine maker — WWW.KUBOTAENGINE.COM. See Lincoln Engine Drive Motors Warranty Contacts. Source: Lincoln Electric Industrial Limited Warranty (form IMWS1, Apr-2026).
Lincoln’s own included-items list for K2409-5 is: Machine Only (Lincoln K2409-5). This factory demo unit is supplied the same way. Not included: welding leads (electrode and work cable), electrode holder, work clamp, and accessory kits. No printed operator’s manual, WeldingMart demo-prep certification document or Lincoln warranty registration paperwork ships with the machine. Consumables (electrodes, gas cylinders) are not included. Leads, holders, clamps, cable connectors, undercarriages, spark arrestors, remote controls and wire feeders are sold separately — contact WeldingMart and we will quote the exact set you need.
