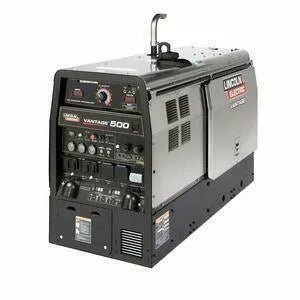

The Lincoln Vantage 500 represents the pinnacle of industrial welding technology, delivering exceptional multi-process capability with robust auxiliary power generation in a compact, field-proven package. This advanced system provides up to 525 amps of welding current across stick, TIG, MIG, flux-cored, and carbon arc gouging processes while offering up to 20 kW of continuous three-phase power for industrial tools and equipment. The intuitive control interface features precise parameter adjustment and process selection, enabling operators to achieve professional results across diverse applications with minimal setup complexity.
Engineered for superior reliability in demanding construction environments, the Vantage 500 incorporates Lincoln's patented Chopper technology that delivers premium arc performance with minimized spatter for stick and pipe welding applications. The enhanced gouging performance prevents engine stalling, resulting in smooth material removal and consistent productivity. The rugged 45.0 horsepower turbocharged Perkins diesel engine meets EPA Tier 4i compliance standards while delivering exceptional fuel efficiency and quiet operation, making it ideal for urban construction sites and noise-sensitive environments.
Despite its impressive industrial capabilities, the Vantage 500 maintains practical serviceability through innovative access features including lockable sliding access doors, front-mounted battery drawer, and top-mounted radiator cover for convenient maintenance. The comprehensive performance range supports welding applications from light fabrication through heavy structural work, while the substantial auxiliary power output accommodates plasma cutters, pumps, and inverter welders. This versatile system represents the optimal solution for construction teams, pipe rig owners, and rental fleet managers requiring maximum welding capability with dependable auxiliary power in harsh field conditions.
- Compact Versatility – Offers up to 525 amps (IEC rated at 500 amps) of welding current to tackle numerous welding and carbon arc gouging applications
- Generator Output – Provides up to 20 kW of continuous three-phase power to run industrial tools such as plasma cutters, pumps, or inverter welders
- Patented Chopper Technology – Experience premium arc performance with minimized spatter for stick or pipe welding as well as enhanced gouging performance
- Reliable Operations – Engineered tough and field proven for ruggedness and durability to meet the most challenging job site needs
- Industrial Diesel Engine – Powered by a 45.0 hp, turbocharged Perkins® diesel engine that runs smooth and quiet while meeting EPA Tier 4i compliance
- Innovative Service Access – Lockable and removable sliding access door, battery drawer on front, and top-mounted radiator cover provide convenient maintenance access
| Dimensions (H x W x D) | 35.9 in x 25.3 in x 60 in (913 mm x 642 mm x 1524 mm) |
| Net Weight | 1290 lbs (586 kg) |
| Machines Processes | Stick (SMAW) Gouging (CAC-A) TIG (GTAW) MIG (GMAW) Flux-Cored Self-Shielded (FCAW-S) Flux-Cored Gas-Shielded (FCAW-G) |
| Open Circuit Voltage | 60 Max OCV at 1800 RPM |
| Engine Brand & Model | Perkins 404D-22T |
| Engine Description | 4 Cylinder Turbocharged Water Cooled Diesel Engine |
| Engine Horsepower | 45.0 hp (33.1 kW) |
| Emissions Rating | US EPA Tier 4i |
| Output Range by Mode | CC-Stick (SMAW): 30 - 525 Amps Downhill Pipe (SMAW): 40 - 300 Amps CV-Wire (GMAW, FCAW-S, FCAW-G): 14 - 40 Volts Touch Start TIG (GTAW): 20 - 250 Amps Arc Gouging (CAC-A): 30 - 525 Amps |
| IEC Rating | 500A / 40V / 100% @104°F (40°C) |
| Rated Gouging Carbon Diameter | 3/8" (9.5 mm) |
| Single Phase Auxiliary Output | 12,000 Watts Continuous, 120/240V |
| Three Phase Auxiliary Output | 20,000 Watts Continuous, 240V |
| Auxiliary Output Frequency | 60 Hz |
| Receptacle Types | NEMA 5-20R NEMA 14-50R NEMA 15-50R |
| Engine Block Size & Displacement | 136 cu. in. (2.2 L) |
| Bore x Stroke | 3.4 in x 3.6 in (84 mm x 100 mm) |
| High Idle Operating Speed | 1850 RPM |
| Low Idle Operating Speed | 1400 RPM |
| Fuel Tank Size (US gal.) | 20 US gal. |
| Fuel Tank Size (L) | 75.7 L |
| Oil Capacity (qts.) | 11.2 qts. |
| Oil Capacity (L) | 10.6 L |
| Coolant Capacity (US gal.) | 2.9 US gal. |
| Coolant Capacity (L) | 10.9 L |
| Warranty | 3 years Parts and Labor - Engine warranted separately by engine manufacturer |
Lincoln lists the welding processes for the Vantage 500 Compact Case as: Stick, TIG, MIG, Flux-Cored, Gouging. Lincoln also publishes a dedicated DC Pipe welding mode on this machine. Source: Lincoln spec sheet E6.214.
Yes. Lincoln publishes the auxiliary AC generator output for the Vantage 500 Compact Case as: 1-Phase AC Power: 13 kW Peak, 12 kW Continuous; 3-Phase AC Power: 22 kW Peak, 20 kW Continuous (60 Hz). Lincoln publishes these receptacles for this machine:
- Two 120V Duplex Receptacles w/ Sealed GFCI Modules — 120V, 20A Per Duplex, 40A Total, NEMA type not stated by Lincoln
- 1-Phase Full KVA Receptacle (panel label: 120/240 VAC Full-KVA 1-Phase Receptacle) — 120/240V, 50A@240V; 50A@120V Each Branch Circuit, NEMA type not stated by Lincoln
- 3-Phase Full KVA Receptacle (panel label: 240 VAC Full-KVA 3-Phase Receptacle) — 240V, 50A@240V, NEMA type not stated by Lincoln
- Wire Feeder Power — 120V/60Hz and 42V/60Hz, amperage not stated by Lincoln, NEMA type not stated by Lincoln
Source: Lincoln spec sheet E6.214.
The Vantage 500 Compact Case on this listing is powered by a Perkins 404D-22T, turbocharged, water-cooled, EPA Tier 4i diesel engine, 45 HP @ 1850 RPM. Perkins engines in this line are diesel only. Source: Lincoln spec sheet E6.214.
Duty cycle varies by output setting and by welding mode. On the Vantage 500 Lincoln rates 500 A / 40 V at 100% in both DC CC and DC CV, and 525 A / 38 V at 100% in DC CC but only 60% in DC CV — so the top of the range is continuous in constant current and not continuous in constant voltage.
| Welding process / output mode | Rating basis | Amperes | Volts | Duty cycle | As printed by Lincoln |
|---|---|---|---|---|---|
| DC Constant Current | NOT LABELLED (CC Rated Output column) | 500A | 40V | 100% | 500A/40V/100% |
| DC Constant Current | NOT LABELLED (CC Rated Output column) | 525A | 38V | 100% | 525A/38V/100% |
| DC Pipe Current | NOT LABELLED (CC Rated Output column) | 300A | 32V | 100% | 300A/32V/100% |
| Touch Start TIG® | NOT LABELLED (CC Rated Output column) | 250A | 30V | 100% | 250A/30V/100% |
| Arc Gouge | NOT LABELLED (CC Rated Output column) | 500A | 40V | 100% | 500/40V/100% |
| DC Constant Voltage | NOT LABELLED (CV-Rated Output column) | 500A | 40V | 100% | 500A/40V/100% |
| DC Constant Voltage | NOT LABELLED (CV-Rated Output column) | 525A | 38V | 60% | 525A/38V/60% |
| Mode / parameter | Range |
|---|---|
| DC Constant Current | 30-525A |
| DC Pipe Current | 40-300A |
| Touch Start TIG® Range | 20-250A |
| Arc Gouge | 30-525A |
| DC Constant Voltage | 14-40V Single Dial Continuous Control |
| Output Range (Product Specifications) | 30-525A DC / 40-300A Pipe / 20-250A DC TIG / 14-40V CV / 30-525A Gouge |
| Open circuit voltage | 60V DC Max OCV @1850 RPM |
| Rated ambient temperature | "ratings are ... of 104°F/40°C." Derating footnote: "High Temperature: For maximum rating, derate 2 volts for every 18°F (10°C) above 104°F (40°C)." |
| Specification | As printed by Lincoln |
|---|---|
| Peak / surge output | 3-Phase 22,000 Watts Peak (22 kW Peak); 1-Phase 13,000 Watts Peak (13 kW Peak) |
| Continuous output | 3-Phase 20,000 Watts Continuous (20 kW Continuous); 1-Phase 12,000 Watts Continuous (12 kW Continuous) |
| Single-phase | 1-Phase AC Power: 13 kW Peak, 12 kW Continuous |
| Three-phase | 3-Phase AC Power: 22 kW Peak, 20 kW Continuous |
| Frequency / phase | 60 Hz |
| Receptacle | Voltage | Amperage | NEMA type |
|---|---|---|---|
| Two 120V Duplex Receptacles w/ Sealed GFCI Modules | 120V | 20A Per Duplex, 40A Total | NOT STATED |
| 1-Phase Full KVA Receptacle (panel label: 120/240 VAC Full-KVA 1-Phase Receptacle) | 120/240V | 50A@240V; 50A@120V Each Branch Circuit | NOT STATED |
| 3-Phase Full KVA Receptacle (panel label: 240 VAC Full-KVA 3-Phase Receptacle) | 240V | 50A@240V | NOT STATED |
| Wire Feeder Power | 120V/60Hz and 42V/60Hz | NOT STATED | NOT STATED |
Source: Lincoln Electric publication E6.214 (Issue Date 01/18) — view the Lincoln spec sheet PDF. Figures are Lincoln's own; “NOT STATED” means Lincoln does not publish that value for this machine.

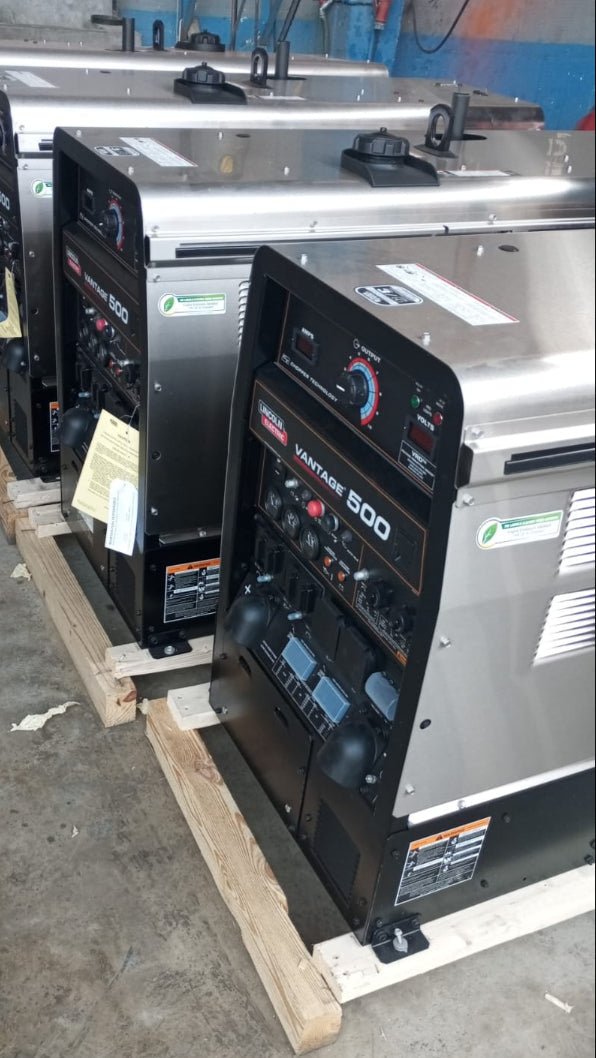

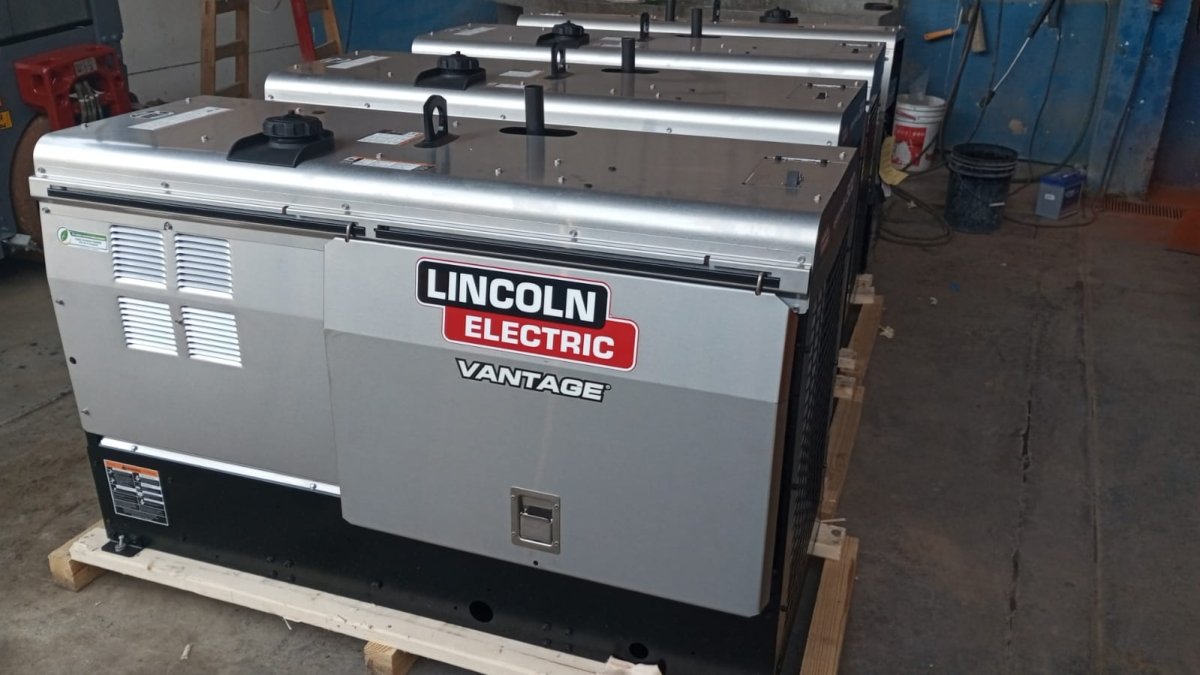

Yes — this is a factory demo or low-hour unit directly from Lincoln Electric. Units may show light cosmetic marks from display use but are mechanically sound. The warranty on this unit is the same as on a new machine. Lincoln’s Industrial Limited Warranty (form IMWS1, Apr-2026) lists a 3-year warranty period for “All Lincoln welding machines, wirefeeders & plasma cutting machines”, and Lincoln states: “Lincoln will assume both the parts and labor expense of correcting defects during the warranty period.” As on a new machine, the engine is not covered by Lincoln’s warranty — Lincoln states: “All engines and engine accessories are warranted by the engine or engine accessory manufacturer and are not covered by this warranty.” This machine’s Perkins 404D-22T engine is warranted by Perkins: “Two Years on parts and labor on 100 and 400 series (2,000 hours) and 1000 and 1100 series (3000 hours). Three years major components, worldwide.”, and that term “BEGINS ON DATE OF PURCHASE BY END USER.” Lincoln directs buyers to the engine maker — WWW.PERKINS.COM / 1-888-PERK-ENG (737-5364). See Lincoln Engine Drive Motors Warranty Contacts. Source: Lincoln Electric Industrial Limited Warranty (form IMWS1, Apr-2026).
Lincoln’s own included-items list for K2686-1 is: Machine Only (Lincoln K2686-1). This factory demo unit is supplied the same way. Not included: welding leads (electrode and work cable), electrode holder, work clamp, and accessory kits. No printed operator’s manual, WeldingMart demo-prep certification document or Lincoln warranty registration paperwork ships with the machine. Consumables (electrodes, gas cylinders) are not included. Leads, holders, clamps, cable connectors, undercarriages, spark arrestors, remote controls and wire feeders are sold separately — contact WeldingMart and we will quote the exact set you need.
