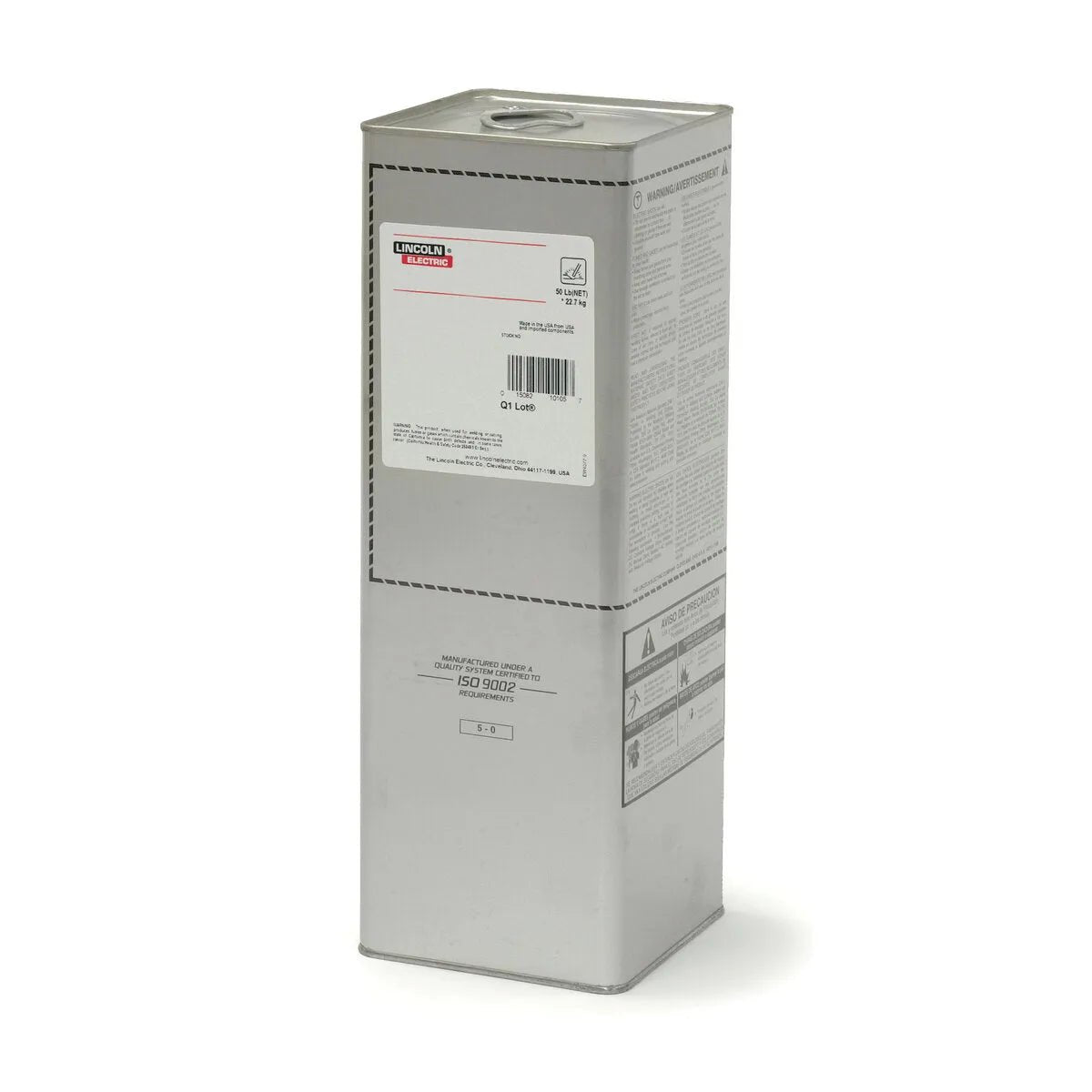

Lincoln Fleetweld 22 is an AWS A5.1/A5.1M E6022 SMAW stick electrode family with 60 ksi minimum (longitudinal weld only) tensile and AC, DC+ or DC-, flat single-pass only operation. WeldingMart stocks 2 package and diameter variants of this grade, all sharing the same AWS classification - select the diameter and package format that fits your application below.
E6022 is an AWS A5.1 high-iron-powder rutile-coated SMAW electrode with 60 ksi minimum tensile, classified for single-pass flat-position welding only. The thick iron-powder coating delivers very high deposition speed for production sheet-metal and light-plate fabrication where mechanical properties of multi-pass welds are not required. Runs on AC, DC+, or DC-; limited to flat-position single-pass work.
| AWS classification | AWS A5.1/A5.1M E6022 |
|---|---|
| Minimum tensile | 60 ksi minimum (longitudinal weld only) |
| Polarity / position | AC, DC+ or DC-, flat single-pass only |
| Available diameters | 3/32 in through 1/4 in (varies by package) |
| Package formats | see size variants below |
- Brand-authorized distributor - factory-fresh stock, full warranty pass-through
- Multiple diameter and package variants in stock - select the SKU below that matches your job
- US warehouse fulfillment, 1 business day ship time
- 30-day returns on unopened cartons
