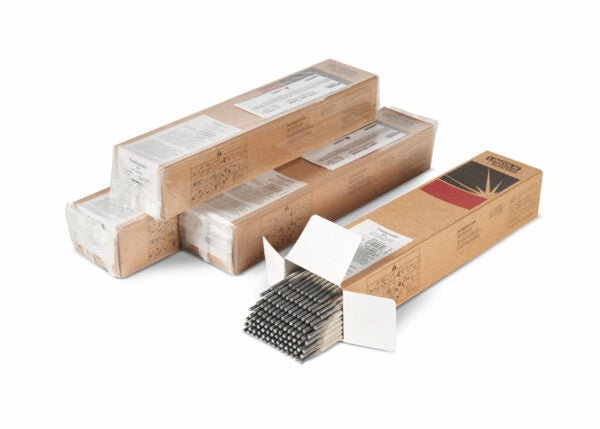

Lincoln Fleetweld 47 in 1/8 in x 14 in, packaged as a 40 lb container for the applications described on the Lincoln Fleetweld 47 family page. Same AWS A5.1/A5.1M E7014 classification as every other size in this product line, packaged in this format for shop and field crews running this diameter.
| Manufacturer SKU | ED038098 |
|---|---|
| Diameter | 1/8 in |
| Length | 14 in |
| Package | 40 lb container |
| Net weight | 40 lb |
| Approx. rods per package | ~212 rods |
| Recommended amperage (this diameter) | 80-130 A |
| AWS classification | AWS A5.1/A5.1M E7014 |
E7014 is an AWS A5.1 iron-powder titania-coated all-polarity SMAW electrode with 70 ksi minimum tensile, combining the easy operability of E6013 with 30-50% higher deposition rate from the iron-powder addition. The drag-rod technique works well, making E7014 popular for production fabrication and general repair on medium plate. Runs on AC, DC+, or DC- in all positions.
Is this the same electrode as the parent Lincoln Fleetweld 47 grade, just in a different package?
Yes. SKU ED038098 is the same AWS A5.1/A5.1M E7014 classification as every other size in the Lincoln Fleetweld 47 family. The only difference is diameter (1/8 in) and package format (40 lb container). Polarity, position, and tensile properties are identical to the parent grade.
How many rods are in this 40 lb container?
Approximately ~212 rods. Exact count varies with manufacturing tolerance but a 40 lb container of 1/8 in Lincoln Fleetweld 47 typically contains in this range.
What is the shelf life if I do not use them all?
Sealed cans have an indefinite shelf life when stored unopened in a dry environment. Once opened, low-hydrogen rods exposed beyond 4 hours of atmospheric humidity should be rebaked at 500-800 F for 1-2 hours or stored in a heated rod oven at 250-300 F to restore full code performance.
What diameter should I use for common applications?
1/8 in is well-suited for general light to medium plate fabrication, all-position. Heavier base metal and higher deposition typically calls for one diameter up; thinner sheet and root passes go one diameter down. See the parent grade page for full diameter-to-amperage guidance.
Can I mix this size with other diameters on the same job?
Yes, provided your procedure qualification (WPS) covers the diameter range. Many shops use one diameter for root, one for fill, and one for cap. All sizes within Lincoln Fleetweld 47 share identical mechanical properties (AWS A5.1/A5.1M E7014) so weld metal chemistry is consistent across passes.
Do I need to rebake these after the can is opened?
Yes for code-quality work. Per AWS D1.1 and most pressure-vessel codes, low-hydrogen electrodes exposed to atmosphere beyond 4 hours must be rebaked at 500-800 F for 1-2 hours or stored in a heated rod oven at 250-300 F to restore full code performance.
Does this size require a special holder or stinger?
Use an electrode holder rated for the amperage range above (80-130 A). Most general-purpose stinger holders (e.g. 300-500 A class) handle 1/8 in Lincoln Fleetweld 47 without issue. For sustained high-amperage runs on larger diameters, a 500 A or higher holder is recommended.
Is this Buy America compliant?
This specific SKU is not the Buy America variant. Lincoln Fleetweld 47 may be available in a Buy America compliant version - see the parent grade page for all available compliance variants.
