What power source and gun is the Lincoln Flex Feed 74 HT Simple U/I, No Reel K3883-1 compatible with?

Wire feeders are compatible with MIG guns and welding power sources that match the feeder's amperage rating and connector type. Lincoln Electric wire feeders are engineered to work with Lincoln power sources using Lincoln Magnum guns and consumables. Third-party compatibility may require adapter cables — contact us to confirm compatibility before ordering.

How do I select the right drive rolls for the Lincoln Flex Feed 74 HT Simple U/I, No Reel K3883-1?

Drive roll selection depends on wire type and diameter: use knurled (serrated) drive rolls for flux-core and metal-core wire, and V-groove (smooth) drive rolls for solid MIG wire. Common wire diameters — .023 in, .030 in, .035 in, .045 in — each require matched drive rolls. Using the wrong drive roll type can crush flux-core wire or slip on solid wire.

How do I set wire feed speed on the Lincoln Flex Feed 74 HT Simple U/I, No Reel K3883-1?

Wire feed speed (WFS) is one of the primary variables controlling heat input and bead profile in MIG welding. Higher WFS increases deposition rate and amperage (in constant-voltage mode). For .035 in ER70S-6 on 1/8 in mild steel, a starting WFS of 200–350 in/min at 18–21V is a common baseline. Fine-tune to achieve a steady arc sound without spatter or porosity.

What routine maintenance does the Lincoln Flex Feed 74 HT Simple U/I, No Reel K3883-1 require?

Regular wire feeder maintenance includes: clean the wire conduit/liner every 3–6 months (or when wire feed becomes erratic), replace the liner when it shows kinks or buildup that cleaning cannot clear, inspect and clean the drive rolls monthly, and check all connection points for corrosion or looseness. A consistent, clean wire path is the most important factor in stable arc performance.

What warranty does the Lincoln Flex Feed 74 HT Simple U/I, No Reel K3883-1 carry?

The Lincoln Flex Feed 74 HT Simple U/I, No Reel K3883-1 carries a 3 Years warranty. Keep your purchase receipt and register the product with Lincoln Electric for warranty service. Warranty covers manufacturing defects; consumable items such as liners, drive rolls, and contact tips are excluded.

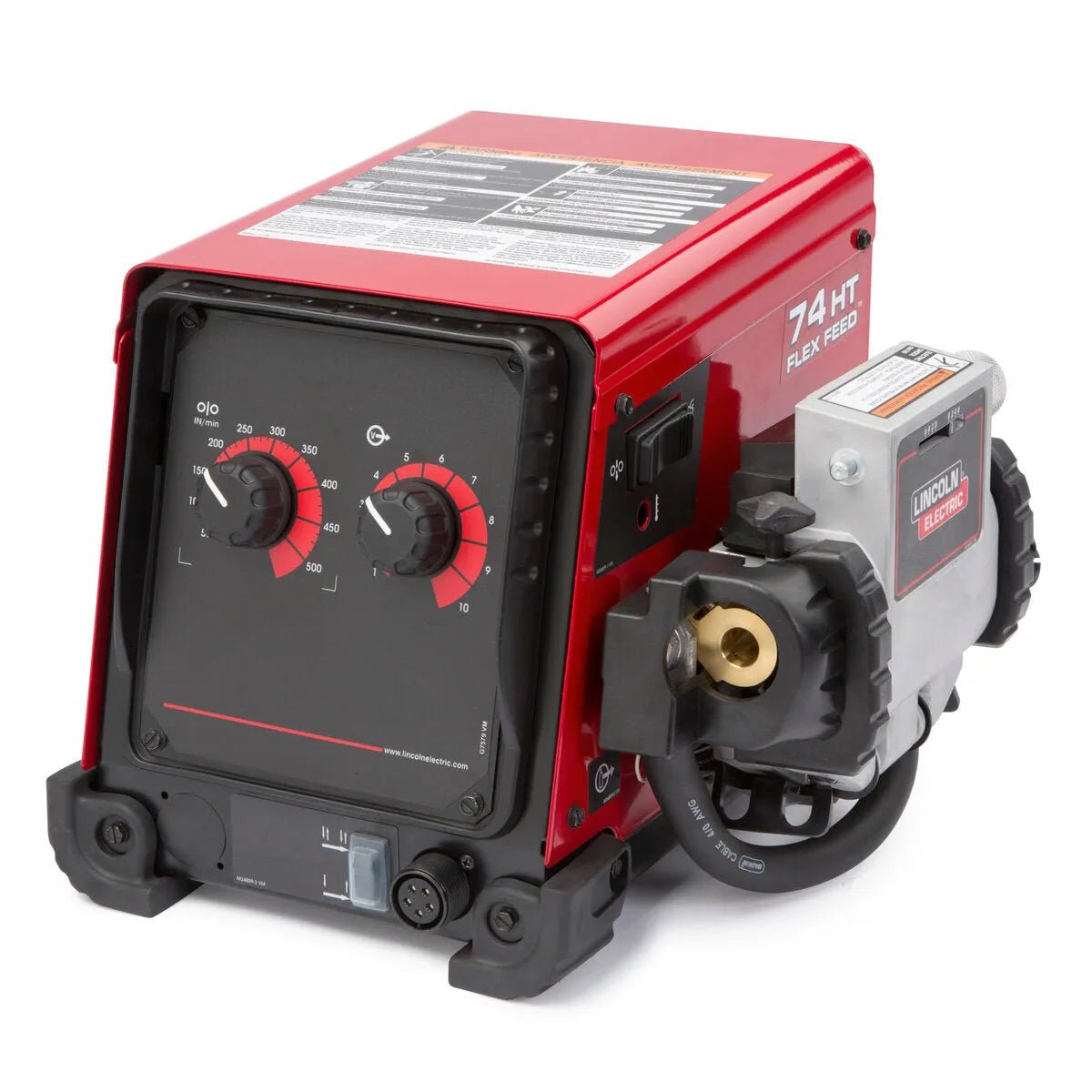

Lincoln Flex Feed 74 HT Simple U/I, No Reel K3883-1

SKU: K3883-1

$4,690.87 ~~$5,200.26~~

Lincoln Elite Dealer

Free Shipping

Lowest Price

The Flex Feed™ 74 HT (High Torque) semiautomatic wire feeder has a simple user interface for general and structural fabrication.

Overview

Lincoln Flex Feed 74 HT Simple U/I, No Reel K3883-1

Semiautomatic Wire Feeder The Flex Feed 74 HT (High Torque) is a heavy duty industrial semiautomatic wire feeder for general and structural fabrication. The Flex Feed wire feeder is designed to be customized for each application.

Features

Simple design including simply digital user interface that streamlines operator setup.
Improved isolation and environmental protection
Robust connection points allow for reliable operation in tough conditions
Advanced MaxTrac 4-roll wire drive design
Strong drive motor for large diameter wire applications
Digital meters show actual current and voltage during welding
Modularity allows for customizable configurations

Specifications

Feature	Value
Typical Applications	Heavy Fabrication Structural Fabrication
Processes	Flux-Cored (FCAW) MIG (GMAW) Submerged Arc (SAW)
Equipment Classification	Heavy Industrial
Product Height (in)	13.3
Product Height (mm)	338
Product Width (in)	15.5
Product Width (mm)	394
Product Length (in)	23.6
Product Length (mm)	599
Product Weight (lb)	36
Product Weight (kg)	16.33
Max Rating	600 A
Input Voltage	24-42 VAC

Includes

(1) Flex Feed® 74 HT Wire Feeder
(1) K3929-1 Inlet Bushing - Quick Connect Style
