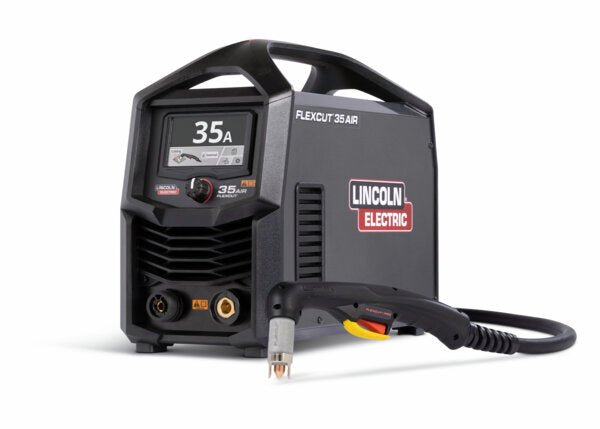

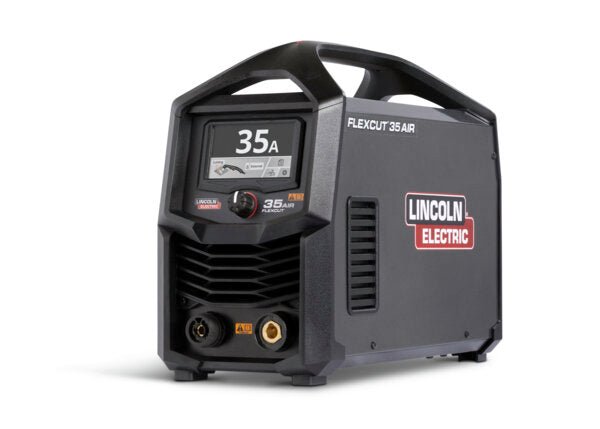

Lincoln FlexCut 35 Air Plasma Cutter

Why Choose the Lincoln Electric FlexCut 35 Air Plasma Cutter?

The Lincoln Electric FlexCut 35 Air delivers dependable 35‑amp plasma cutting performance in a compact, self‑contained package with a built‑in air compressor. It’s made for small projects, light fabrication, and mobile work where you need clean cuts but don’t have easy access to shop air.

With dual‑voltage input, guided digital controls, and rugged construction, the FlexCut 35 Air gives contractors, HVAC installers, maintenance crews, and rental fleets a true plug‑and‑cut solution anywhere there’s power.

Built‑In Air – No Shop Compressor Required

The FlexCut 35 Air’s integrated compressor provides steady, regulated airflow that’s optimized for plasma cutting, eliminating the need to drag hoses from a central compressor or haul a separate portable unit.

You can still connect external air when available, but the self‑contained design makes setup faster, reduces clutter, and keeps you cutting in locations where traditional air supply isn’t practical.

Guided LCD Interface and Simple Setup

A bright LCD display with a central control knob makes operation straightforward, showing amperage, process selection, air source, gas purge, and advanced settings at a glance.

The guided cutting mode lets you select material type and thickness, then automatically recommends an amperage range for clean, precise results, helping both new and experienced operators dial in settings quickly.

Portable, Rugged, and Job‑Site Ready

Compact dimensions, an integrated carry handle, and an included shoulder strap make the FlexCut 35 Air easy to move between vehicles, job sites, and work areas.

Industrial IP23S protection helps the machine resist dust and water spray, so it’s better suited to real‑world construction, maintenance, and demolition environments than typical hobby plasma cutters.

Efficient Consumable Design

Long‑life consumables and optimized airflow deliver more cuts per part, reducing how often you need to change electrodes and nozzles and lowering overall operating cost.

Threadless electrode connections and snap‑in, tool‑free consumable installation make changeouts quick and smooth, minimizing downtime during busy cutting days.

Cutting Performance

• Recommended cut (mild steel): 1/4 in at 20 ipm
• Maximum cut (mild steel): 3/8 in at 10 ipm
• Severance cut (mild steel): 1/2 in at 5 ipm

Specifications

• Product Name: FlexCut 35 Air
• Product Numbers: K5822‑H Handheld Assembly, K5822‑PS Power Source Only
• Processes: Plasma cutting, grid cutting
• Applications: On‑site maintenance, small construction sites, HVAC air‑duct installation, demolition work, rental use
• Input Power: 120/240 V, single‑phase, 50/60 Hz
• Output Range: 15–35 A
• Rated Duty Cycle (230 V): 35% @ 35 A, 60% @ 31 A, 100% @ 21 A
• Rated Duty Cycle (120 V): 20% @ 27 A
• Recommended Circuit Breaker: 30 A
• Engine‑Drive Auxiliary Power: approx. 5.5 kW for full 35 A output
• External Gas Pressure (optional): 90–130 PSI
• Dimensions (H × W × D): 18.4 × 8.1 × 14.1 in (468 × 205 × 359 mm)
• Net Weight: 35 lb (15.9 kg)
• Protection Rating: IP23S

What’s Included – Handheld Package (K5822‑H)

• FlexCut 35 Air plasma cutter power source with built‑in compressor
• FlexCut PRO 35 Air handheld torch, 12.5 ft cable (KP5848‑12‑5)
• Air filter (KP5843‑1)
• Work clamp and cable (KP6035‑1)
• Input power cord
• 120 V input adapter (KP6034‑1)
• Shoulder strap (KP6012‑1)
• Consumable starter kit for 35 A drag cutting

What’s Included – Power Source Only (K5822‑PS)

• FlexCut 35 Air power source
• Air filter (KP5843‑1)
• Work clamp and cable (KP6035‑1)
• Input power cord
• 120 V input adapter (KP6034‑1)
• Shoulder strap (KP6012‑1)
