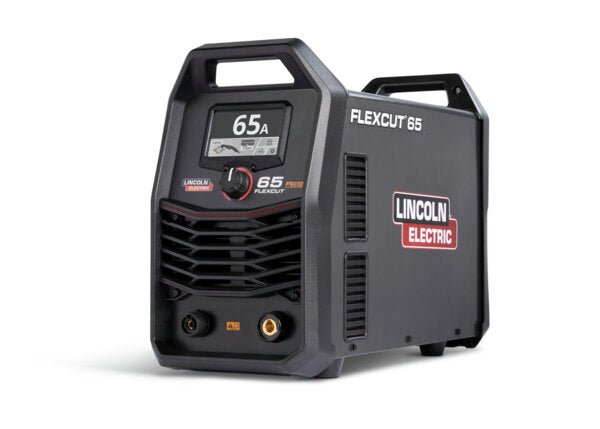

The Lincoln Electric FlexCut 65 is the professional mid-range model in Lincoln Electric's new FlexCut plasma cutter lineup — delivering 65 amps of cutting power to cleanly cut mild steel, stainless steel, and aluminum up to 1 inch thick. As outlined on Lincoln Electric's FlexCut plasma page, the FlexCut 65 covers the demanding mid-range of professional fabrication work where 35–45 A machines lack capacity and 85+ A machines exceed the power available from single-phase input. The FlexCut 65 accepts 200–600V, single-phase or 3-phase input — the most flexible input range in the FlexCut handheld lineup below the 85.
At 65 A with 100% duty cycle, the FlexCut 65 is purpose-built for sustained production cutting of structural steel, heavy sheet metal, and plate work in fabrication shops, automotive service facilities, and field crews operating off industrial power. The CPC port for mechanized torch integration makes it CNC table-ready for shops that need both handheld and automated cutting from the same machine. The FlexConnect torch system enables fast torch head swaps between handheld, mechanized, and extended-reach configurations without replacing the full torch lead assembly.
Lincoln Electric's Parts-in-Place consumable protection and integrated air dryer carry forward from the FlexCut 35 and 45 — protecting consumable life and reducing arc-start failures on variable job-site and shop air quality. The LCD display with guided process selection covers cutting, gouging, grid-cutting, extended cutting, and precision cutting modes — a wider process range than any comparable 65 A plasma cutter in the market.
The 5-year factory warranty on the FlexCut 65 reflects Lincoln Electric's commitment to the redesigned FlexCut platform. For professional fabricators and contractors who cut 1/2 to 1 in. plate regularly, the FlexCut 65 provides the production capacity and feature set to handle the work without stepping up to a 3-phase-only 80+ A industrial power source.
| SKU / Model | FlexCut 65 (Handheld Ready-Pak: K5825-H | Mechanized Ready-Pak: K5825-M) |
| Process | Plasma Cutting, Gouging, Grid-Cutting, Extended, Precision (PAC) |
| Output (Amps) | 65 A |
| Input Voltage | 200–600V, Single-Phase or 3-Phase, 50/60 Hz |
| Duty Cycle | 100% at rated output |
| Cut Capacity — Mild Steel (Recommended) | 3/4 in. (19 mm) |
| Cut Capacity — Mild Steel (Maximum) | 1 in. (25.4 mm) |
| Materials | Mild steel, stainless steel, aluminum, and other conductive metals |
| Arc Start | Non-High-Frequency (touch-start / rapid arc restrike) — CNC-safe |
| Display | LCD display with guided mode selection |
| Torch System | FlexConnect — quick-swap torch heads and cables |
| Integrated Air Dryer | Yes |
| CNC / Mechanized Ready | Yes — built-in CPC port, automatic CNC table detection |
| Air Pressure Required | 80–120 PSI |
| Warranty | 5 Years — Lincoln Electric factory (new FlexCut line) |
| Condition | New — Lincoln Electric K-prefix (factory-new) |
- FlexCut 65 Plasma Cutter Power Source
- 25 ft FlexConnect Handheld or Mechanized Torch (based on Ready-Pak selected)
- Work Cable & Ground Clamp
- Input Power Cord
- Complete Consumable Package: nozzles, diffusers, electrodes, drag cups, swirl ring, shields
- Integrated air dryer with airline attachment
- Operator's manual
Maximize the FlexCut 65's versatility with WeldingMart accessories:
- Plasma Torches — FlexConnect handheld torches for manual operation; mechanized torch packages in 25 ft and 50 ft leads for CNC table and pipe cutting integration; precision cutting torch heads for tighter kerf and fine-detail work on plate.
- Plasma Consumables — FlexCut-series electrodes, nozzles, swirl rings, and shields for the FlexConnect torch system; extended-life consumable packs for production structural steel and plate cutting; gouging electrode kits for weld removal and weld joint face preparation.
- Air Treatment — High-flow inline moisture separators and coalescing filters for 65 A production air demand; desiccant dryer cartridge replacements for built-in dryer maintenance; quick-disconnect airline fittings for fast machine repositioning in the shop.
At 65 A, 100% duty cycle, and 1 in. cut capacity, the FlexCut 65 covers the full range of professional fabrication cutting work:
- HVAC ductwork — heavy gauge and structural HVAC fabrication. On single-phase input in the shop, the FlexCut 65 cuts heavy galvanized duct flanges, equipment mounting brackets, and structural curb frames in 3/16 in. through 1/2 in. steel at production speed. For HVAC contractors doing commercial equipment installation with heavy structural steel work, the 65 A output handles structural angle and tube steel that exceeds lighter plasma cutters' capacity.
- Automotive bodywork — frame and structural repair. At 65 A, the FlexCut 65 cuts full frame sections, subframe rails, and body-on-frame structural components in 1/4 in. through 1/2 in. steel for restoration shops and collision repair facilities doing structural work. Precision cutting mode provides tighter arc focus for body panel patch cuts where kerf width matters for fit-up.
- Structural steel fabrication. Cuts plate, flat bar, angle, channel, and tube steel up to 3/4 in. recommended and 1 in. maximum for structural fabricators, metal buildings contractors, and erection crews. Single-phase input from 200–600V means the FlexCut 65 runs on single-phase service available at most construction sites and fabrication shops without requiring 3-phase installation.
- Art, architectural metalwork, and custom fab. Heavy plate art, decorative structural screens, and architectural metalwork elements in 1/4 in. through 3/4 in. plate cut clean with minimal dross at 65 A. CNC table integration via the CPC port enables production of complex decorative patterns from flat plate that would be impractical by hand cutting.
- Demolition, industrial MRO, and scrap processing. The 1-in. maximum cut capacity and 100% duty cycle handle sustained structural demolition and MRO cutting of heavy beams, pipe, and plate. The multi-process (cut, gouge, grid-cut) capability allows a single machine to handle all plasma cutting and gouging tasks in an industrial MRO environment.
The FlexCut 65 cuts mild steel up to 1 in. (25.4 mm) maximum, with 3/4 in. (19 mm) as the recommended production cutting capacity. According to Lincoln Electric's FlexCut product page, the FlexCut 65 is the smallest model in the lineup rated for 1-inch capacity. It also cuts stainless steel and aluminum at similar thicknesses to mild steel. The single-phase input range (200–600V) makes it accessible on typical North American single-phase service without requiring 3-phase power like the larger FlexCut 80 and 125 systems.
The FlexCut 65 is rated at 100% duty cycle at rated output — continuous plasma cutting without thermal shutdowns at full 65 A. This is the same 100% duty cycle rating as all FlexCut models, which is a defining feature of the new lineup. For production cutting tasks in structural fabrication or sustained CNC table operation, the 100% duty cycle eliminates cooling wait periods entirely at all cutting amperages.
The FlexCut 65 uses a non-high-frequency contact start with rapid arc restrike. The restrike feature re-establishes the plasma arc immediately after crossing gaps in expanded metal, perforated plate, and interrupted cut paths. The non-HF design prevents electromagnetic interference with CNC motion controllers and torch height control systems when the FlexCut 65 is used on a cutting table. The Parts-in-Place system adds a further layer of protection by preventing arc initiation with improperly assembled consumables.
Yes. The FlexCut 65 is CNC table-ready with a built-in CPC port for mechanized machine torch connection and automatic CNC table detection. The mechanized Ready-Pak (K5825-M) ships with a machine torch configured for CNC table mounting. For shops that need to alternate between handheld and CNC cutting, the FlexConnect torch system allows switching between torch configurations quickly without replacing the power source or lead assembly.
The FlexCut 65 requires 80–120 PSI compressed air. At 65 A cutting current, air flow demand is higher than the smaller FlexCut 35 and 45 — a 60-gallon, 5+ HP compressor producing 8–10 SCFM at 100 PSI is suitable for sustained shop production cutting. The built-in air dryer handles moisture removal for typical shop air quality. For CNC table applications with extended continuous cutting, a rotary screw compressor is preferred over a reciprocating compressor to maintain consistent pressure and flow without cycling interruptions.
