The Lincoln Electric FlexCut 85 is Lincoln Electric's professional-grade plasma cutter for fabrication shops, structural steel contractors, and CNC cutting operations that regularly cut material up to 1-1/4 in. thick. According to Lincoln Electric's FlexCut plasma overview, the FlexCut 85 delivers 85 amps with a high duty cycle, eight cutting processes, and built-in CNC-ready ports for automatic CNC table detection — making it one of the most versatile professional plasma cutters in the Lincoln Electric lineup.
The FlexCut 85 expands on the FlexCut 65's capability with eight plasma cutting processes: standard drag cutting, fine cutting, extended cutting, precision cutting, gouging, marking, grid/expanded metal cutting, and mechanized cutting. This breadth of process modes means a single FlexCut 85 handles virtually every plasma task in a professional shop without requiring process-specific accessories. The FlexConnect torch system allows rapid torch head and cable swaps — switching from a handheld drag shield setup to a precision CNC mechanized torch in seconds without tools.
At 85 amps and a high duty cycle, the FlexCut 85 sustains production-rate cutting on 3/4 in. structural plate, heavy tube steel, and 1-in. beam sections that would push a 65 A machine to its limit. The large LCD display provides real-time machine status monitoring and process guidance — particularly useful in multi-operator shops where different users run the same machine on different materials throughout the day.
Lincoln Electric backs the FlexCut 85 with a 5-year factory warranty. For shops that have previously run the FlexCut 80 (K4809-1) for mechanized CNC work and want a machine that handles both CNC and handheld tasks from a single power source, the FlexCut 85 is the natural upgrade — combining the industrial mechanized capability of the 80 with the handheld versatility of the full FlexCut lineup's multi-process architecture.
| SKU / Model | FlexCut 85 (Handheld Ready-Pak: K5826-H | Mechanized Ready-Pak: K5826-M) |
| Process | Plasma Cutting, Fine Cutting, Extended Cutting, Precision Cutting, Gouging, Marking, Grid-Cutting, Mechanized (8 processes) |
| Output (Amps) | 85 A |
| Input Voltage | 200–600V, Single-Phase or 3-Phase, 50/60 Hz |
| Duty Cycle | High duty cycle (100% at rated output) |
| Cut Capacity — Mild Steel (Recommended) | 1 in. (25.4 mm) |
| Cut Capacity — Mild Steel (Maximum) | 1-1/4 in. (32 mm) |
| Materials | Mild steel, stainless steel, aluminum, and other conductive metals |
| Arc Start | Non-High-Frequency (touch-start / rapid arc restrike) — CNC-safe |
| Display | Large LCD display with real-time status monitoring |
| Torch System | FlexConnect — quick-swap torch heads and cables |
| Integrated Air Dryer | Yes |
| CNC / Mechanized Ready | Yes — built-in CPC port, automatic CNC table detection |
| Air Pressure Required | 80–120 PSI |
| Warranty | 5 Years — Lincoln Electric factory (new FlexCut line) |
| Condition | New — Lincoln Electric K-prefix (factory-new) |
- FlexCut 85 Plasma Cutter Power Source

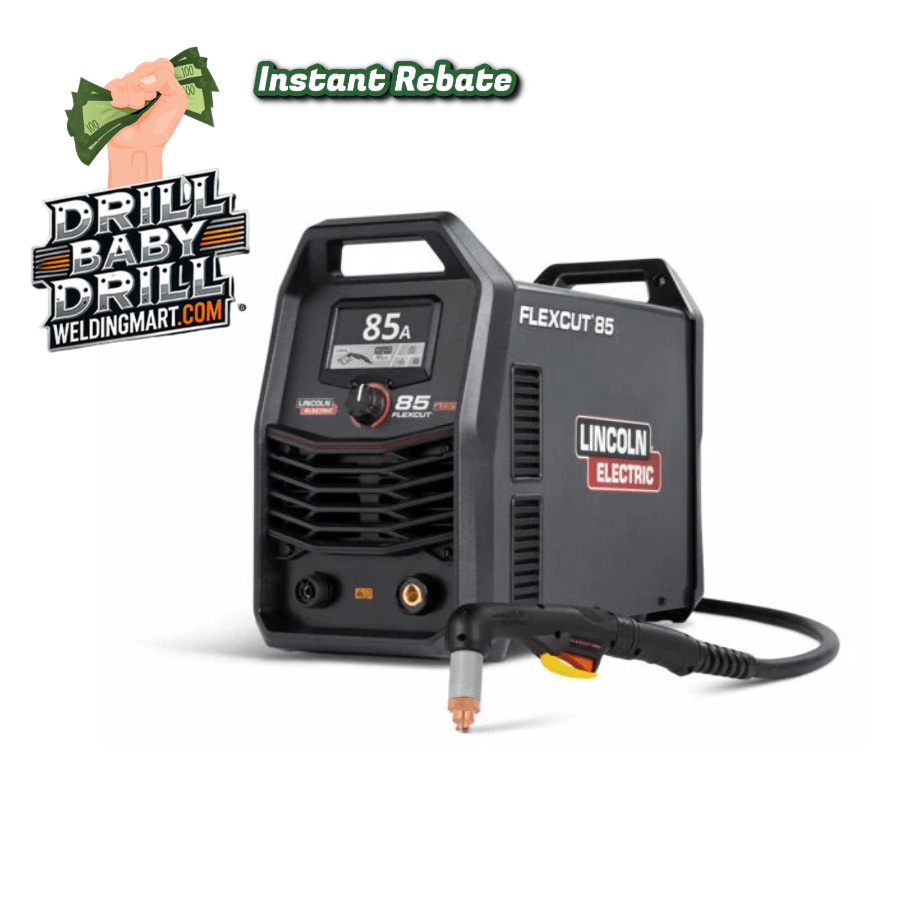

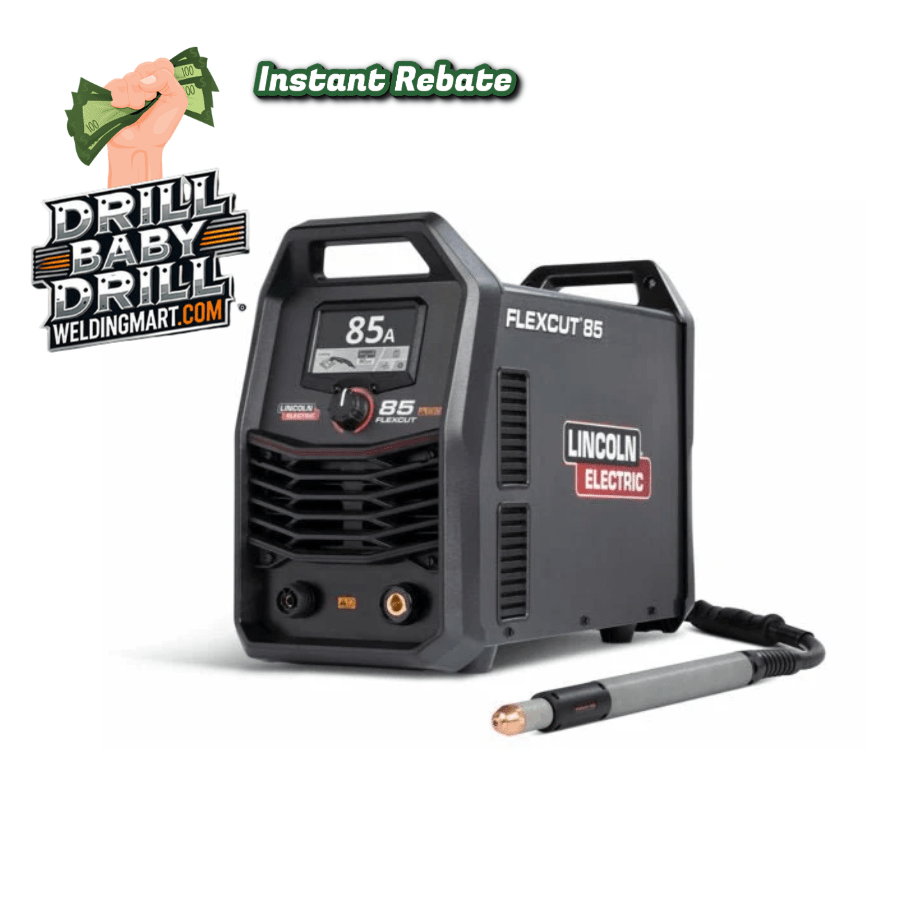

- FlexConnect PRO Handheld or Mechanized Torch — 25 ft (based on Ready-Pak selected)
- Work Cable & Ground Clamp
- Input Power Cord
- Complete Consumable Kit: nozzles, electrodes, swirl ring, retaining ring, shields (including gouging consumables)
- Integrated air dryer with airline attachment
- Operator's manual
Complete the FlexCut 85 setup with WeldingMart's Lincoln-compatible accessories:
- Plasma Torches — FlexConnect PRO handheld and mechanized torches; extended-reach bodies for structural beam and pipe cutting; precision cutting torch heads for tight-tolerance CNC work; replacement torch cables in 25 ft and 50 ft lengths for larger CNC table configurations.
- Plasma Consumables — FlexCut 85-series electrodes, nozzles, swirl rings, shields, and retaining rings; precision cutting consumable sets for fine-feature CNC cutting; gouging electrode and nozzle packs for weld removal and joint preparation; production quantity multi-packs for sustained shop operation.
- Air Treatment Systems — High-volume coalescing filter and moisture separator assemblies for 85 A air demand; desiccant dryer systems for shops in humid climates; rotary screw compressor packages for dedicated production CNC plasma cutting stations.
The FlexCut 85's 85 A output, eight process modes, and 1-1/4 in. capacity cover the broadest range of professional plasma cutting work in the FlexCut handheld lineup:
- HVAC ductwork — structural and industrial HVAC fabrication. Heavy structural support steel, equipment rigging frames, and industrial HVAC enclosures in 1/4 in. through 3/4 in. plate cut cleanly at production speed. The precision cutting mode produces tight-tolerance cuts on structural HVAC supports where fit-up accuracy reduces field installation time. For large commercial HVAC projects with extensive structural steel, the FlexCut 85's sustained duty cycle handles multi-hour production cutting sessions.
- Automotive bodywork — collision, custom, and heavy chassis. Heavy-duty chassis repair, frame rail replacement, and custom frame fabrication in 1/4 in. through 1/2 in. structural steel. For custom vehicle builders working with heavy-wall tube steel chassis, the FlexCut 85 cuts accurately and consistently at thicknesses where lighter plasma cutters slow significantly. Fine cutting mode produces narrow kerf for precision chassis joint cuts where fit-up tolerance is measured in thousandths.
- Structural steel fabrication and ironwork. Plate, wide-flange beam sections, structural tube, and angle steel up to 1 in. recommended and 1-1/4 in. maximum covers the full structural fabrication range for most fab shops. On single-phase input from 200–600V, the FlexCut 85 operates on typical fabrication shop power without 3-phase service requirements, unlike many industrial plasma systems at this amperage level.
- Art, architectural, and custom metalwork. Production cutting of 1/4 in. through 3/4 in. decorative and architectural plate on CNC tables using the mechanized Ready-Pak. Plasma marking mode scribes part numbers, bend lines, and decorative elements directly on cut parts. Fine cutting mode produces detail work on decorative panels that approaches laser-cut quality at plasma cutting costs.
- Demolition, industrial MRO, and scrap processing. The 1-1/4 in. maximum capacity and sustained high duty cycle handle the heaviest structural demolition and MRO tasks: heavy beam sections, thick pipe, structural plate removal, and cast iron. Gouging mode handles weld joint opening, crack preparation, and defect removal on heavy structural work.
The FlexCut 85 cuts mild steel up to 1-1/4 in. (32 mm) maximum, with 1 in. (25.4 mm) as the recommended production cutting capacity. Per Lincoln Electric's FlexCut product page, the FlexCut 85 is rated for 1-1/4 in. maximum capacity — the most of any single-phase-capable model in the FlexCut handheld lineup. It also cuts stainless steel and aluminum at comparable thicknesses to mild steel.
The FlexCut 85 is rated at high duty cycle at rated output — per Lincoln Electric's FlexCut lineup design, all FlexCut models are rated for 100% duty cycle at rated output for sustained production cutting. This means the FlexCut 85 can run continuously at 85 A without thermal shutdown, supporting all-day production CNC cutting and sustained handheld cutting in fabrication shop environments.
The FlexCut 85 uses a non-high-frequency contact start with rapid arc restrike — the same arc start system shared across the FlexCut lineup. The restrike feature rapidly re-establishes the plasma arc after crossing gaps in expanded metal, perforated plate, and corroded surfaces. The non-HF design is CNC-safe, preventing electromagnetic interference with CNC motion controllers and THC systems. Combined with Parts-in-Place consumable detection, the FlexCut 85 provides reliable arc starts with protection against consumable damage from improper assembly.
Yes. The FlexCut 85 is equipped with a built-in CPC port and automatic CNC table detection. The mechanized Ready-Pak (K5826-M) includes a FlexConnect PRO mechanized torch configured for CNC table mounting. The non-HF arc start, divided arc signal output, and THC-compatible CNC interface make the FlexCut 85 fully compatible with professional CNC plasma table systems from Lincoln Electric and other manufacturers. For shops needing both CNC table and handheld plasma capability from one machine, the FlexCut 85 is the most capable single-phase option in the FlexCut lineup.
The FlexCut 85 requires 80–120 PSI compressed air. At 85 A, air flow demand is approximately 8–12 SCFM at cutting pressure. A 60–80 gallon, 5–7.5 HP reciprocating compressor producing 10+ SCFM at 125 PSI supports sustained shop operation. For production CNC cutting with minimal pressure cycling, a rotary screw compressor is the preferred solution. The built-in air dryer handles moisture separation under normal shop air conditions; for humid climates or shops with older compressors prone to moisture carryover, an additional inline desiccant system is recommended before the plasma inlet.
