Lincoln Flextec 350X PowerConnect / DLF-84 Ready-Pak - K5922-1

SKU: K5922-1
$13,211.11

Financing Options

•
As low as …/mo with.
•
Loading Affirm Estimate…
Lincoln Elite Dealer
Free Shipping
Lowest Price

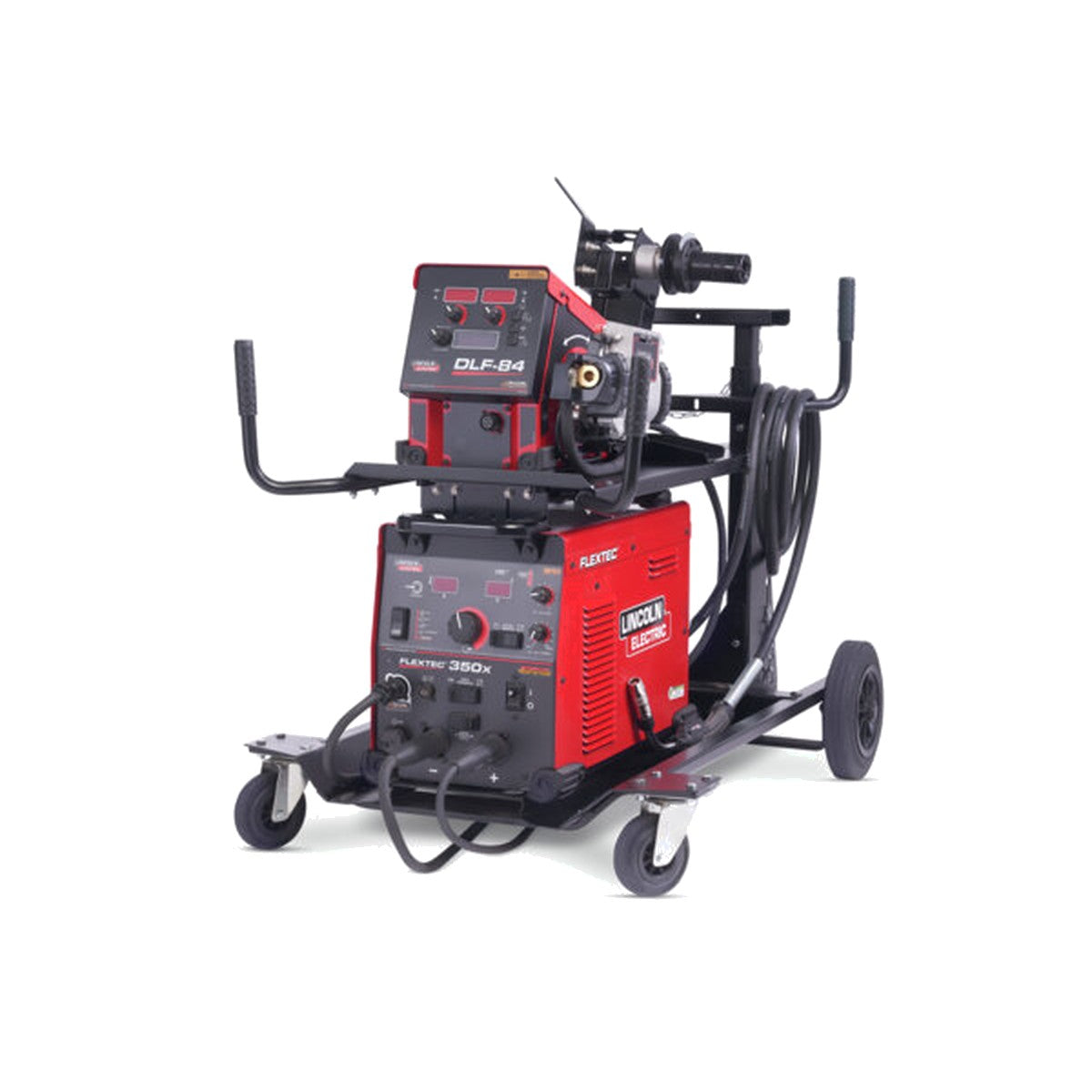

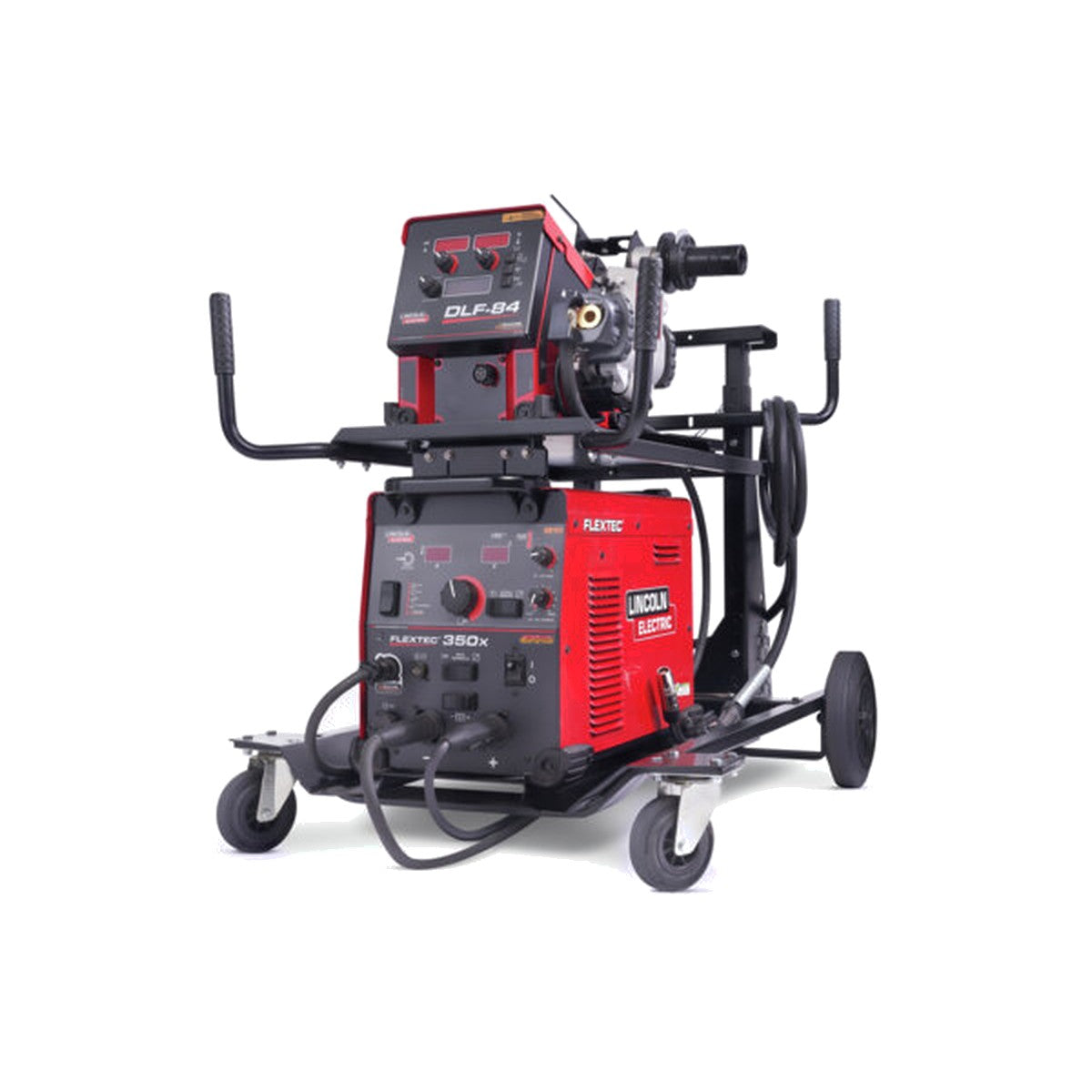

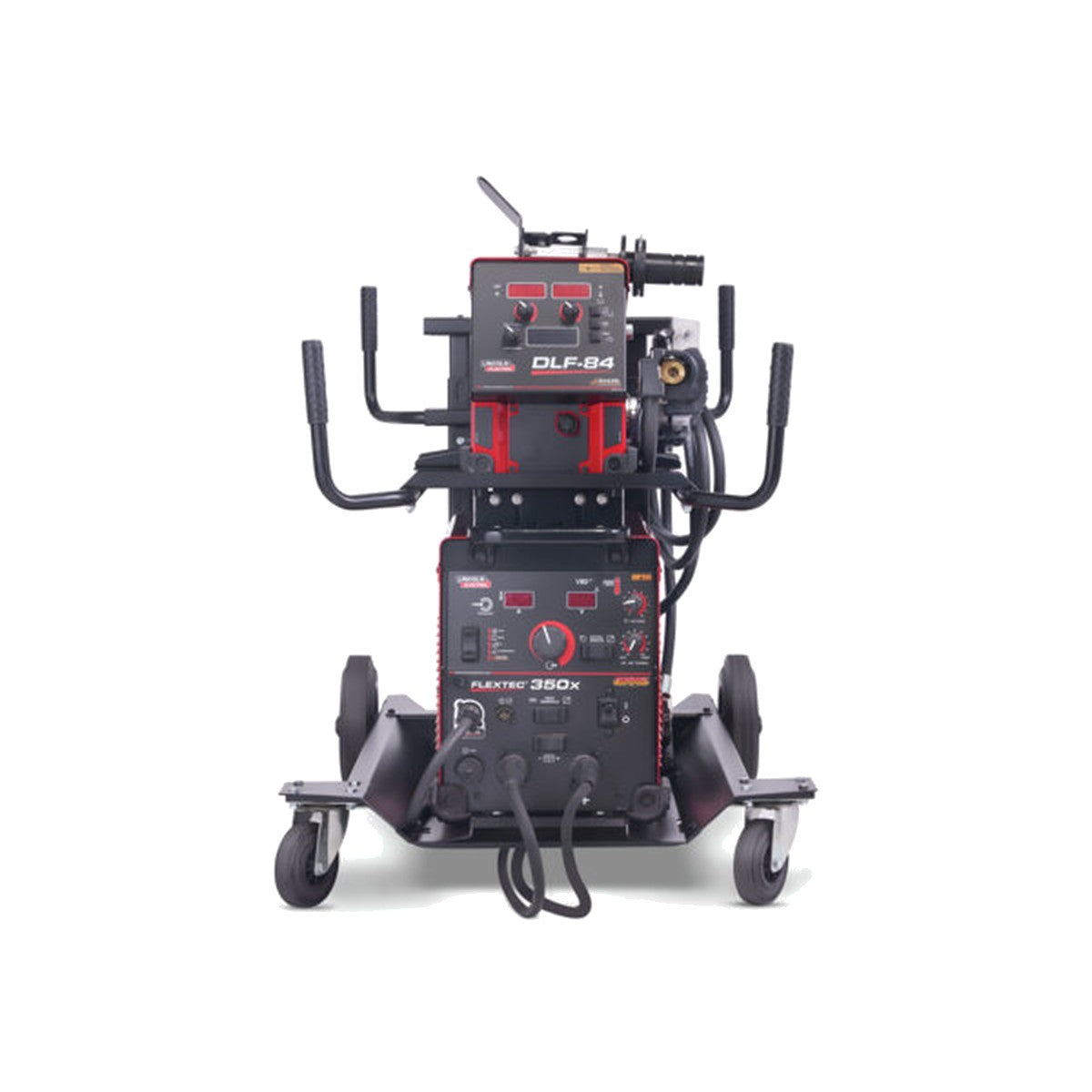

Complete ready-to-weld fab shop MIG system: Flextec 350X PowerConnect, DLF-84 bench feeder, Magnum PRO Curve gun and flowmeter regulator on a cart.
Overview

Flextec® 350X PowerConnect® / DLF-84 Ready-Pak®. The Flextec® 350X PowerConnect® / DLF-84 Ready-Pak® is a complete fab shop MIG welding system that is easy to order, easy to set up and easy to operate. The PowerConnect® power source welds on any input voltage from 200 to 575V, single or 3-phase, and the ArcLink® DLF-84 bench feeder adds synergic CV-MIG, basic pulsed MIG, Auto Settings and memories for low spatter and better arc control. Welding wire and shielding gas are ordered separately.

Features
  • Ready to Weld - Ships fully assembled on a pallet with the Flextec® 350X PowerConnect® power source, DLF-84 bench wire feeder with 60 lb wire reel stand, Magnum® PRO Curve™ HDE™ 350 gun, and flowmeter regulator on a cart.
  • Any Input Power - PowerConnect® technology welds on any input voltage from 200 to 575V, single or 3-phase, 50/60 Hz.
  • Synergic Control - Set the wire type, diameter and shielding gas, then adjust one knob (WFS) and the voltage follows automatically.
  • Pulsed MIG Modes - Basic pulse modes reduce spatter and fume and give a wider operating range for better puddle control and easier out-of-position welding.
  • Adaptive Arc - In pulsed MIG, small changes in contact tip to work distance won't change the bead shape, because the arc length is held constant.
  • Auto Settings - Run-in speed, pre flow, post flow, burnback, start procedure and crater fill adjust automatically for better starts and finishes.
  • 4-Roll Wire Drive - Field-proven, tool-less 4-roll drive with split wire guides and a single tension adjustment for fast, consistent feeding at up to 1,200 ipm.
  • Memory Presets - Save up to 4 weld settings and switch between them right at the gun with trigger memory recall.
  • Process Control - Weld parameter limits, weld mode lockout and PIN lockout help prevent accidental changes on the shop floor.
  • Aluminum Capable - Add a compatible Lincoln Electric push-pull gun and the K5711-1 12-pin push-pull gun connector for aluminum welding.
  • Warranty - 5-year parts and labor warranty on the power source and 3-year warranty on the wire feeder.
Specifications

Specifications

Brand — Lincoln Electric®
Product Family — Flextec® / DLF Ready-Pak®
Power Source — Flextec® 350X PowerConnect® (K4273-2)
Wire Feeder — DLF-84 Bench Model with Gun (K5287-3)
Ready-Pak Processes — CV-MIG, Pulsed MIG, CV-FCAW-G
Power Source Processes — Stick, Gouging (CAC-A), Flux-Cored, TIG, MIG, Pulsed MIG, GMAW-STT
Input Power — 200-208/220-230/380-415/460/575V, 1 or 3 phase, 50/60 Hz
Rated Output, 3 Phase 200-575V — 350A/34V/60%; 300A/32V/100%
Rated Output, 1 Phase 380-575V — 350A/34V/60%; 300A/32V/100%
Rated Output, 1 Phase 200-230V — 300A/32V/60%; 270A/31V/100%
Input Current, 3 Phase at 350A/34V/60% — 45/40/23/19/15A at 208-220/220-230/380-415/460/575V
Input Current, 1 Phase at 350A/34V/60% — 39/32/26A at 380-415/460/575V
Input Current, 1 Phase at 300A/32V/60% — 62/56A at 200-208/220-230V
Output Range — 5-425A DC, CC/CV
Wire Feeder Rating — 600A at 60%, 40 VDC
Wire Feed Speed — 35-1200 ipm (0.89-30.5 m/min)
Drive Rolls — 4-roll drive; .035-.045 reversible drive roll kit (KP1696-1) included
Synergic Wire Range — Steel, stainless and aluminum .025-.045 in; metal core .035-.052 in
Max Spool Size — 60 lb (30 kg)
Control Cable — 8 ft ArcLink® cable integrated in the DLF feeder
Ready-Pak Dimensions (H x W x D) — 58 x 34 x 53 in (1473 x 864 x 1346 mm)
Ready-Pak Net Weight — 488 lb (221.8 kg)
Typical Applications — Fabrication shops, production welding, education and training, general and heavy fabrication, heavy equipment
Warranty — 5 years power source; 3 years wire feeder
Part Number — K5922-1

What's Included

  • (1) Flextec® 350X PowerConnect® (Tweco®) power source, K4273-2, with 8.5 ft input cord
  • (1) DLF-84 Bench Model with Gun, K5287-3
  • (1) Magnum® PRO Curve™ HDE™ 350 .045 15 ft gun, K4532-2-10-45
  • (1) .035-.045 Reversible Drive Roll Kit, KP1696-1
  • (1) DLF Wire Reel Stand (60 lb), K5288-1
  • (1) Cart for Inverter and Wire Feeder, K3059-4
  • (1) DLF-84 Inverter Cart Platform Bracket, K5959-1
  • (1) Flextec® 350X Locking Foot Kit, K4424-1
  • (1) Work & Power Lead Package 2/0, 10 ft (Tweco® to Lug / GC500), K1803-2
  • (1) Model 355-2AR-580 Flowmeter Regulator, 3100211

Warranty

5 years power source; 3 years wire feeder.
