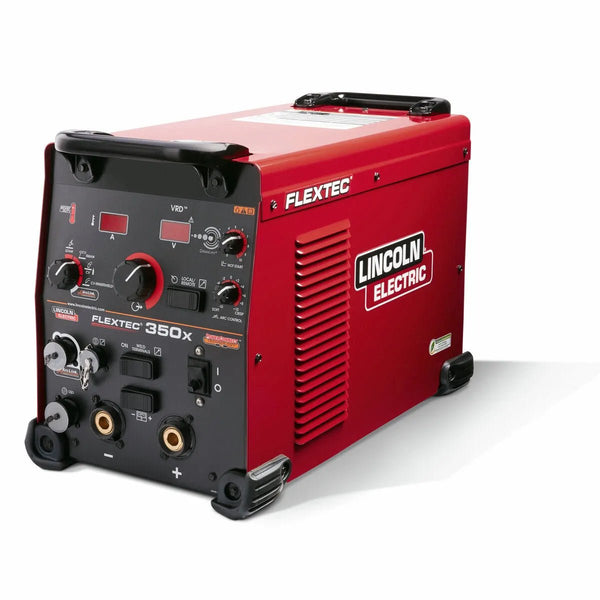

The Lincoln Flextec 350X PowerConnect Tweco model represents the ultimate in welding versatility, combining multi-process capabilities with unparalleled input power flexibility. This innovative system automatically adapts to any available input voltage from 200V to 600V, in either single-phase or three-phase configurations, eliminating the need for manual reconnection when moving between job sites with different power supplies. The PowerConnect technology continuously monitors incoming voltage and self-adjusts for optimal performance, allowing welders to focus on productivity rather than power source configuration.
Building on the proven Flextec platform, the 350X PowerConnect supports a comprehensive range of welding processes including Stick, TIG, pulsed and CV MIG, and carbon arc gouging. The system includes built-in pulse programs for carbon steel, stainless steel, metal core, and aluminum applications when paired with compatible Power Feed ArcLink wire feeders. This exceptional process flexibility makes the Flextec 350X PowerConnect suitable for diverse applications across construction, fabrication, and industrial environments.
The Flextec 350X PowerConnect features Lincoln's innovative CrossLinc Technology as standard, enabling remote control over welding parameters without additional control cables when used with compatible accessories. The system's comprehensive connectivity supports virtually all Lincoln wire feeder types, including CrossLinc, 14-pin analog, 5-pin ArcLink digital, and across-the-arc models. Based on the same field-proven platform as previous Flextec machines, this model delivers exceptional reliability even in extreme environments, with lab and field testing confirming its durability for demanding applications.
Key Features
- PowerConnect technology automatically adapting to any input voltage from 200-575VAC, single or three-phase, 50 or 60Hz.
- Built-in pulse programs for carbon steel, stainless steel, metal core, and aluminum when used with Power Feed ArcLink feeders.
- Comprehensive process flexibility supporting MIG, TIG, Stick, Flux-Cored, and Carbon Gouging applications.
- Universal feeder compatibility with CrossLinc, 14-pin analog, 5-pin ArcLink digital, and across-the-arc wire feeders.
- CrossLinc Technology enabling remote control without additional control cables for streamlined operations.
- Tweco style welding output connections providing quick, secure coupling of welding cables.
- Field-proven reliability based on the established Flextec platform with extensive testing in extreme environments.
- Portable design facilitating easy transport between diverse job sites with varying power configurations.
- Intuitive interface simplifying setup and operation for improved productivity across applications.
Specifications
| Dimensions (H x W x D) | 17 in x 13 in x 24 in (432 mm x 330 mm x 609 mm) |
| Net Weight | 84 lbs (38.1 kg) |
| Machines Processes | Stick (SMAW) Gouging (CAC-A) Flux-Cored (FCAW) TIG (GTAW) MIG (GMAW) Pulsed MIG (GMAW-P) |
| Input Voltage | 200-600/1/3/50/60 |
| Input Current | 3 Phase: 350A/34V/60%, 208-220/220-230/380-415/460/575, 45/40/23/19/15 1 Phase: 350A/34V/60%, 380-415/460/575, 39/32/26 1 Phase: 300A/32V/60%, 200-208/220-230, 62/56 |
| Input Hertz | 50/60 |
| Input Phase | 1/3 |
| Input Power | 3 Phase, 200-208/220-230/380-415/460/575 - 50/60 Hz 1 Phase, 380-415/460/575 - 50/60 Hz 1 Phase, 200-208/220-230 - 50/60 Hz |
| Output Range | 3 Phase 200-600V, 5-425A, Max OCV: 80V DC 1 Phase 380-575V, 5-425A, Max OCV: 80V DC 1 Phase 200-230V: 5-350A Max OCV 67V DC |
| Output Range by Mode | 5-425 |
| Machines Communication Technology | analog digital CrossLinc ArcLink |
| Wire Feeder Supply Voltage | 40VDC |
| Amphenol Pins (type of connector) | 5 14 12 |
| Work Lead Connector Type | Tweco |
| Typical Application | Cross Country Pipeline Construction & Field Erection General Fabrication Heavy Equipment Heavy Fabrication Structural Fabrication |
| Warranty | 3 Years |
