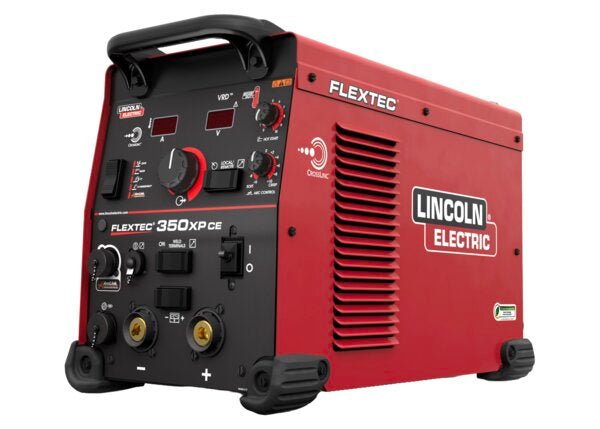

Lincoln Flextec 350XP - (CE) (Twist Mate) (Not for sale in U.S. and Canada) - K5422-1

SKU: K5422-1
$6,862.00

Financing Options

Loading Affirm Estimate…
Lease-To-Own From $312/mo — 24-Mo Term, No Hard Credit Check
Lincoln Elite Dealer
Free Shipping
Lowest Price
Equipped with CrossLinc® technology, the Flextec 350XP welder can be controlled from hundreds of feet away without expensive and inconvenient control cables. Desert Duty® and IP23 rated, it can withstand harsh outdoor conditions and outperform other welders in its class.

Overview

The Flextec 350XP CE model is compliant with European standards. The 350XP CE model is not only portable and powerful, it is also even more flexible. With standard amphenol connections supporting most Lincoln Electric wire feeders, the Flextec 350XP CE is capable of supporting most arc welding processes including STT using the Activ8X Pipe wire feeder.

Features
  • European CE compliance.
  • Capable of open gap root passes on pipe with the STT process using the Activ8X Pipe wire feeder.
  • Built in pulse programs for carbon steel stainless steel, metal core and aluminum
  • Ultimate process flexibility. Supports MIG, TIG, Stick, Flux cored and Carbon Arc Carbon Arc Gouging
  • Ultimate feeder flexibility. Supports CrossLinc wire feeders, 14-pin analog wire feeders, 5-pin ArcLink digital wire feeders and Activ8X Pipe wire feeder.
  • Proven Reliability. Based on the same proven platform as the previous Flextec machines and lab and field tested to perform in extreme environments
  • Supports the STT process when used with an Activ8X Pipe wire feeder.
Specifications

Product Weights & Dimensions

Dimensions (H × W × D): (432 mm × 330 mm × 609 mm)
Net Weight: 33.6 kg

General Specifications

Machine Processes:
• Stick (SMAW)
• Gouging (CAC-A)
• Flux-Cored (FCAW)
• TIG (GTAW)
• MIG (GMAW)
• Pulsed MIG (GMAW-P)

Input Voltage: 380 / 400 / 415 / 3 / 50 / 60
Input Current: 32 A
Input Hertz: 50 / 60 Hz
Input Phase: 3

Output Range: 5–425 A

Machine Technologies & Connections

Ingress Protection Rating: IP23
Rated Gouging Carbon Diameter: 1/4 in (6.5 mm)
Data Technologies: USB

Machine Communication Technology:
• Analog
• Digital
• CrossLinc
• ArcLink

Wire Feeder Supply Voltage:
• 42 VAC
• 40 VDC

Amphenol Pins (Type of Connector):
• 12
• 14

Applications

Typical Applications:
• Cross Country Pipeline
• Construction & Field Erection
• General Fabrication
• Heavy Equipment
• Heavy Fabrication
• Structural Fabrication

Warranty

Warranty: 5 Years
