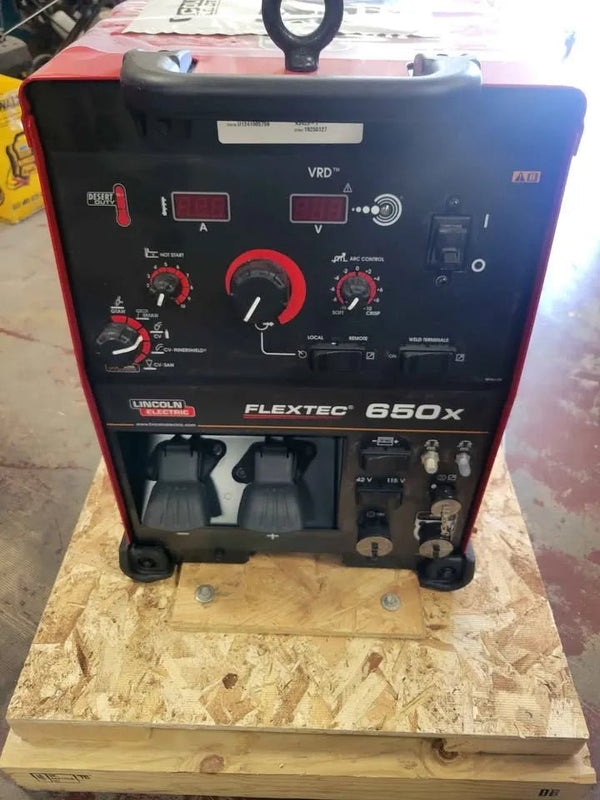

The Flextec 650X Multi-Process Welder with CrossLinc Technology is designed for simple, reliable, and flexible welding operations across demanding industrial applications. This advanced multi-process welder offers up to 650 amps of output with easy one-knob process selection and fast arc response that means smooth arc action and consistent bead appearance.
Compare to New Flextec 650X - K3425-1 - Full 3 Year Factory Warranty
The Flextec 650X delivers exceptional simplicity with its ability to use a wide range of available 3-phase input power and easy one-knob process selection. User weld schedule memory storage allows easy recall of critical or often repeated weld procedures with applicable feeders, while synergic one-knob control over wire feed speed and voltage provides seamless operation with Power Feed wire feeders. The fast arc response ensures smooth arc action and consistent bead appearance across all welding applications. Components are designed to run cool for long life in high temperature environments, with the unit engineered for outdoor use and harsh environments (IP23 rated) and Desert Duty rated for extreme temperatures up to 55°C (131°F).
The Flextec 650X offers exceptional flexibility as the ideal solution for large diameter wire or stick welding on thick materials. It's compatible with most Lincoln Electric feeders, including common bench and boom models, portable across-the-arc models, and CrossLinc™ or ArcLink®-equipped models. Premium multi-process arc characteristics support all DC wire, stick, and TIG processes with superior performance. CrossLinc™ Technology compatibility provides full functionality without control cables, enabling remote procedure setting at the feeder to improve weld quality, increase arc time with fewer trips to the power source, and improve safety by reducing jobsite clutter. The Flextec 650X represents the perfect balance of power, reliability, and advanced technology for professionals who demand maximum performance in demanding industrial environments. Ideal for heavy fabrication, structural welding, shipbuilding, pipeline work, and critical industrial applications where consistent, high-quality welds are essential, the Flextec 650X delivers up to 650 amps of output with the precision control and advanced features that set Lincoln Electric apart in the welding industry.
- SIMPLE: Wide range 3-phase input power with easy one-knob process selection
- RELIABLE: Components designed to run cool for long life in high temperature environments
- FLEXIBLE: Ideal for large diameter wire or stick welding on thick materials
- CrossLinc™ Technology: Full functionality without control cables for remote procedure setting
- User Weld Schedule Memory: Easy recall of critical or repeated weld procedures
- Synergic Control: One-knob control over wire feed speed and voltage with Power Feed feeders
- Desert Duty® Rated: Engineered for extreme temperatures up to 55°C and outdoor use (IP23 rated)
- Up to 650A Output: High-power capability for demanding industrial applications
| Dimensions (H x W x D) | [Dimensions to be specified] |
| Net Weight | [Weight to be specified] |
| Machines Processes | Stick (SMAW) Gouging (CAC-A) Flux-Cored (FCAW) TIG (GTAW) MIG (GMAW) Flux-Cored Self-Shielded (FCAW-S) Flux-Cored Gas-Shielded (FCAW-G) Submerged Arc (SAW) |
| Input Voltage | 380/466/575/3/50/60 |
| Input Phase | 3 |
| Mode Icon | CC/CV |
| Output Range | 10-650A |
| Polarity | DC |
| Output Range by Mode | 10-650A |
| Machines Communication Technology | analog digital CrossLinc ArcLink |
| Wire Feeder Supply Voltage | 115VAC 42VAC |
| Work Lead Connector Type | Lug |
| Typical Application | Heavy Fabrication Structural Welding Shipbuilding Pipeline Work Industrial Manufacturing Power Generation Oil & Gas Heavy Equipment |
| Warranty | 3 Years Parts and Labor |
The Flextec 650X is a multi-process industrial power source supporting MIG (GMAW), flux-core (FCAW), Stick (SMAW), DC TIG (GTAW), and advanced pulsed MIG processes. The Power Wave and Flextec series are designed for both manual and automated welding applications. Refer to the spec sheet for the full process list for your specific model.
Input power requirements vary by model. Smaller multi-process units may accept single-phase 208/230V or multi-voltage input. Industrial Power Wave and Flextec models typically require three-phase 208–575V input. Check the spec sheet and machine nameplate for exact input power specifications before installation.
Yes — the Lincoln Electric Power Wave and Flextec series are designed for both manual and automated welding applications. They feature ArcLink® digital communication for integration with Lincoln Electric wire feeders, robots, and automated systems. Contact WeldingMart or Lincoln Electric for automation integration assistance.
Lincoln Electric multi-process power sources in this class are compatible with Lincoln's industrial wire feeder family via ArcLink digital connection. Compatible feeders include the LF-72, LF-74, MAXsa, and other Lincoln wire feeders. Refer to the owner's manual for a complete compatibility list.
Output range and duty cycle are listed in the spec sheet. Industrial Lincoln Electric power sources in this class are typically rated for 100% duty cycle at maximum output, making them suitable for continuous production welding environments.
Yes — this is a factory demo or low-hour unit sourced directly from Lincoln Electric. Units are mechanically tested before sale and may show light cosmetic wear. Contact WeldingMart for information on remaining manufacturer warranty for your specific unit number.
