The Frontier 400X is an advanced engine-driven welder/generator offering best-in-class arc performance, coupled with the latest welding innovation for maximum versatility on the jobsite. The machine's multi-process capability provides optimized CC and CV modes, plus specialized modes to support mechanized equipment and advanced GMAW applications including STT® and pulse welding. The machine features an industry-first, next-gen display with enhanced operator-focused features, such as save and recall weld parameter memories, maintenance reminders, and optional PIN user authorization.
The Frontier 400X offers exceptional job-site versatility with up to 400 amps (IEC rated at 325 amps) of welding current to tackle numerous welding and carbon arc gouging applications. It includes six optimized CC and CV modes, plus advanced modes to support pulsed TIG, pulsed MIG, STT®, and mechanized equipment. The bright, durable 7-inch digital user interface provides unmatched machine control with save and recall memories, maintenance reminders, and PIN authorization capabilities. CrossLinc® Technology allows communication through a standard weld cable to enable voltage or current control at the arc without a control cable, improving safety, quality, and productivity with fewer trips to the power source and reduced jobsite clutter. Built-in True Voltage Technology™ (TVT) compensates for voltage drop to further improve operations.
Beyond its advanced welding capabilities, the Frontier 400X delivers all-day auxiliary power with up to 11 kW of continuous three-phase power to run industrial tools such as plasma cutters, pumps, or inverter welders. Additional features include Auto-Stop/Start technology to help reduce engine idling, save on fuel costs, and avoid excessive wear on the engine. The unit runs longer and more efficiently with a class-leading 20 US gallon (75.7 L) fuel tank and integrated Auto-Stop/Start feature designed to prevent excessive idling. Powered by a field-proven 24.7 hp (18.4 kW) Perkins 403F-15T three-cylinder turbocharged water-cooled diesel engine, the Frontier 400X meets US EPA Tier 4 Final compliance while providing extremely smooth and quiet operation. With sound ratings of 67 dBA at low idle and 71 dBA at high idle, the unit operates quietly in noise-sensitive environments. Engineered tough to withstand harsh conditions and backed by trusted industry support and a 3-year warranty, the Frontier 400X represents the latest in welding innovation for construction, mining, railroad maintenance, cross-country pipeline, field erection, maintenance and repair, oil and gas, power generation, shipbuilding, and structural welding applications.
- Full Job-Site Versatility: Up to 400 amps (IEC rated at 325 amps) with six optimized CC and CV modes plus advanced pulsed TIG, pulsed MIG, and STT® modes
- All Day Auxiliary Power: Up to 11 kW of continuous three-phase power for industrial tools, plasma cutters, pumps, or inverter welders
- Next-Gen Display: Bright, durable 7-inch digital user interface with save/recall memories, maintenance reminders, and PIN authorization
- CrossLinc® Enabled: Communication through standard weld cable for voltage/current control at the arc with True Voltage Technology™
- Run Longer and More Efficient: Class-leading 20 US gallon fuel tank with integrated Auto-Stop/Start feature
- Field-Proven Diesel Engine: 24.7 hp Perkins turbocharged water-cooled diesel engine with EPA Tier 4 Final compliance
- Trusted Reliability: Engineered tough for harsh conditions with 3-year warranty and industry support
- Advanced Welding Modes: Support for mechanized equipment and specialized GMAW applications
| Dimensions (H x W x D) | 35.9 in x 25.3 in x 60 in (913 mm x 644 mm x 1524 mm) |
| Net Weight | 1035 lbs (469 kg) |
| Machines Processes | Stick (SMAW) Gouging (CAC-A) TIG (GTAW) MIG (GMAW) Pulsed MIG (GMAW-P) Flux-Cored Self-Shielded (FCAW-S) Flux-Cored Gas-Shielded (FCAW-G) Orbital MIG |
| Open Circuit Voltage | 71 Peak OCV at 1800 RPM |
| IEC Rating | 325A / 33V / 100% @ 104°F (40°C) |
| Output Range by Mode | Stick (SMAW): 30 – 400 Amps CV-Wire (GMAW, FCAW-S, FCAW-G): 10 – 45 Volts DC TIG (GTAW): 5 – 400 Amps Arc Gouging (CAC-A): 60 – 400 Amps |
| Rated Gouging Carbon Diameter | 5/16 in (8.0 mm) |
| Machines Communication Technology | CrossLinc |
| Single Phase Auxiliary Output | 10,000 Watts Continuous / 11,500 Watts Peak, 120/240V |
| Three Phase Auxiliary Output | 11,000 Watts Continuous / 12,500 Watts Peak, 240V |
| Auxiliary Output Frequency | 60 Hz |
| Receptacle Types | NEMA 5-20R NEMA 14-50R NEMA 15-50R |
| Engine Brand & Model | Perkins 403F-15T |
| Engine Description | 3 Cylinder Turbocharged Water Cooled Diesel Engine |
| Engine Horsepower | 24.7 hp (18.4 kW) |
| Engine Block Size & Displacement | 91 cu. in (1.5 L) Bore x Stroke - 3.3 in x 3.5 in (84 mm x 90 mm) |
| Emissions Rating | US EPA Tier 4 Final |
| High Idle Operating Speed @ Rated Output | 1800 |
| Low Idle Operating Speed | 1440 |
| Sound Rating @23 ft. (7m) | 67 dBA at Low Idle 71 dBA at High Idle |
| Fuel Tank Size (US gal.) | 20 US gal. |
| Fuel Tank Size (L) | 75.7 L |
| Oil Capacity (qts.) | 6.4 qts. |
| Oil Capacity (L) | 6.0 L |
| Coolant Capacity (US gal.) | 1.8 US gal. |
| Coolant Capacity (L) | 6.8 L |
| Typical Application | Construction Mining Railroad Maintenance Cross Country Pipeline Construction & Field Erection Maintenance & Repair Oil & Gas Power Generation Shipbuilding Structural Fabrication Structural Welding |
| Warranty | 3 Years Parts and Labor on the welder — 5 Years on the Frontier Digital User Interface — engine warranted separately by the engine manufacturer |
Lincoln lists the welding processes for the Frontier 400X as: SMAW, FCAW, GMAW, GTAW, CAC-A. Source: Lincoln spec sheet E6.59.
Yes. Lincoln publishes the auxiliary AC generator output for the Frontier 400X as: Single Phase: 10 kW Continuous, 11.5 kW Peak, 120V/240V @ 60 Hz; Three Phase: 11 kW Continuous, 12.5 kW Peak, 240V @ 60 Hz (Single Phase 120V/240V @ 60 Hz; Three Phase 240V @ 60 Hz). Lincoln publishes these receptacles for this machine:
- NEMA 5-20R — 120V, 20A, NEMA 5-20R (120V / 20A / 1~)
- NEMA 14-50R — 120/240V, 50A, NEMA 14-50R (120/240V / 50A / 1~)
- NEMA 15-50R — 240V, 50A, NEMA 15-50R (240V / 50A / 3~)
Source: Lincoln spec sheet E6.59.
The Frontier 400X on this listing is powered by a Kubota D1503-M, Tier 4 Final, water-cooled diesel engine, 24.8 hp. Kubota engines in this line are diesel only. Source: Lincoln spec sheet E6.59.
Duty cycle varies by output setting. The Frontier 400X is 100% duty cycle at its 325 A / 33 V IEC rating, but only 60% duty cycle at its 400 A / 26 V maximum rating — the full 400 amps is not a continuous-duty output. Both ratings are at 104°F (40°C).
| Welding process / output mode | Rating basis | Amperes | Volts | Duty cycle | As printed by Lincoln |
|---|---|---|---|---|---|
| Rated output (mode not broken out) | IEC Rating | 325A | 33V | 100% | IEC Rating – 325A / 33V / 100% |
| Rated output (mode not broken out) | Max Rating | 400A | 26V | 60% | Max Rating – 400A / 26V / 60% |
| Mode / parameter | Range |
|---|---|
| Stick / Pipe | 30 – 400 Amps |
| DC TIG | 5 – 400 Amps |
| MIG / FCAW | 10 – 45 Volts |
| Arc Gouging | 60 – 400 Amps |
| Open circuit voltage | 71 Peak OCV @ 1800 RPM |
| Rated ambient temperature | Column header: "Rated Output @104°F (40°C)" |
| Specification | As printed by Lincoln |
|---|---|
| Peak / surge output | Single Phase 11.5 kW Peak; Three Phase 12.5 kW Peak |
| Continuous output | Single Phase 10 kW Continuous; Three Phase 11 kW Continuous |
| Single-phase | Single Phase: 10 kW Continuous, 11.5 kW Peak, 120V/240V @ 60 Hz |
| Three-phase | Three Phase: 11 kW Continuous, 12.5 kW Peak, 240V @ 60 Hz |
| Frequency / phase | Single Phase 120V/240V @ 60 Hz; Three Phase 240V @ 60 Hz |
| Receptacle | Voltage | Amperage | NEMA type |
|---|---|---|---|
| NEMA 5-20R | 120V | 20A | NEMA 5-20R (120V / 20A / 1~) |
| NEMA 14-50R | 120/240V | 50A | NEMA 14-50R (120/240V / 50A / 1~) |
| NEMA 15-50R | 240V | 50A | NEMA 15-50R (240V / 50A / 3~) |
Source: Lincoln Electric publication E6.59 (Issue Date 07/26 (revised since the 04/25 issue recorded in oem_verification.md)) — view the Lincoln spec sheet PDF. Figures are Lincoln's own; “NOT STATED” means Lincoln does not publish that value for this machine.

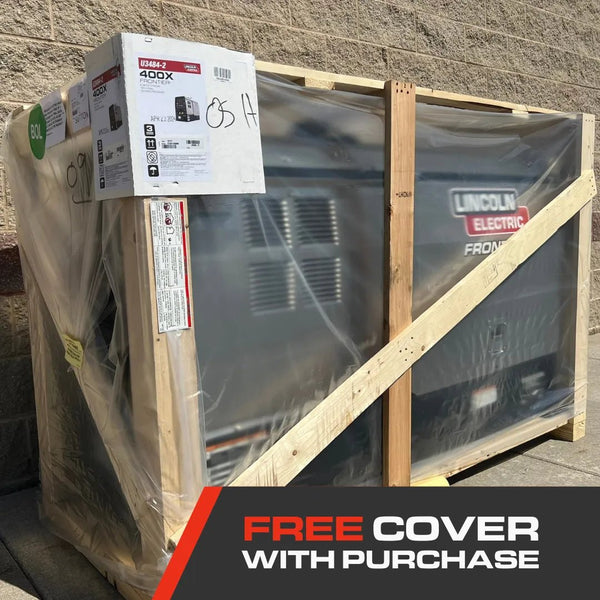

Yes — this is a factory demo or low-hour unit directly from Lincoln Electric. Units may show light cosmetic marks from display use but are mechanically sound. The warranty on this unit is the same as on a new machine. Lincoln’s Industrial Limited Warranty (form IMWS1, Apr-2026) lists a 3-year warranty period for “All Lincoln welding machines, wirefeeders & plasma cutting machines”, and Lincoln states: “Lincoln will assume both the parts and labor expense of correcting defects during the warranty period.” Lincoln lists a longer, 5-year period for the “Digital User Interface on Frontier Models Only”. As on a new machine, the engine is not covered by Lincoln’s warranty — Lincoln states: “All engines and engine accessories are warranted by the engine or engine accessory manufacturer and are not covered by this warranty.” This machine’s Kubota D1503-M engine is warranted by Kubota: “USA - 2 Year/2000 Hours and 3rd Year Major Components.”, and that term “BEGINS ON DATE OF PURCHASE BY END USER.” Lincoln directs buyers to the engine maker — WWW.KUBOTAENGINE.COM. See Lincoln Engine Drive Motors Warranty Contacts. Source: Lincoln Electric Industrial Limited Warranty (form IMWS1, Apr-2026).
This factory demo unit is supplied as the machine only, verified directly by WeldingMart’s owner. Lincoln publishes no What’s Included list for the non-Pipe Frontier 400X product number. Not included: welding leads (electrode and work cable), electrode holder, work clamp, and accessory kits. No printed operator’s manual, WeldingMart demo-prep certification document or Lincoln warranty registration paperwork ships with the machine. Consumables (electrodes, gas cylinders) are not included. Leads, holders, clamps, cable connectors, undercarriages, spark arrestors, remote controls and wire feeders are sold separately — contact WeldingMart and we will quote the exact set you need.
