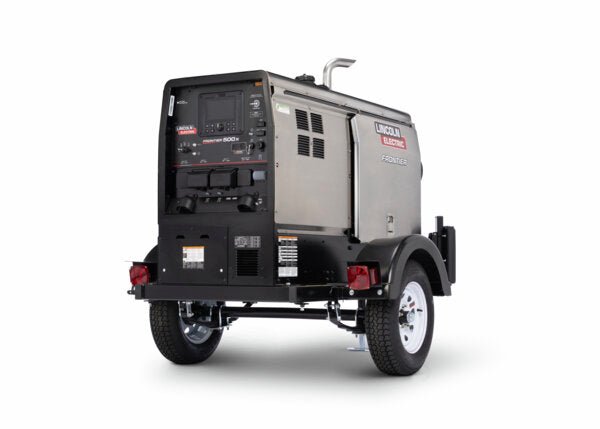

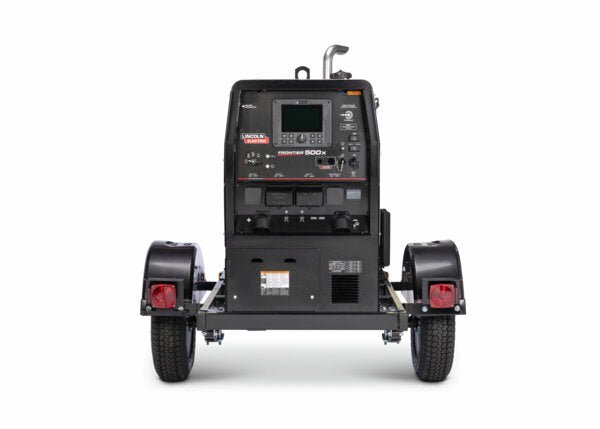

The Frontier® 500X is the powerful engine-driven welder/generator, delivering top-tier arc performance and the latest welding technology for unmatched jobsite versatility. Its multi-process capabilities support both CC and CV modes, including advanced features for STT®, pulse welding, and mechanized applications. A next-generation 7-inch digital display offers an intuitive, operator-friendly interface with features like weld memory save/recall, maintenance reminders, and optional PIN access. Additional innovations like Auto-Stop/Start reduce fuel use and engine wear, while CrossLinc® Technology enables voltage and current control right at the arc—boosting productivity, safety, and weld quality.cold-weather and high altitude environments. Now better than ever, the machine features CrossLinc Technology to provide welders with greater control at the arc to help improve safety, productivity, and quality.
- Ultimate Jobsite Versatility – Delivers up to 525 amps of welding power across six optimized CC and CV modes—plus advanced support for pulsed TIG, MIG, STT®, and mechanized systems.
- Continuous Auxiliary Power – Provides up to 15 kW of steady three-phase power to run heavy-duty tools including plasma cutters, pumps, and inverter welders.
- Next-Gen Display – Bright, rugged 7” digital interface with memory storage, maintenance alerts, and optional PIN security for simplified operation and machine control.
- CrossLinc® + True Voltage Technology™ – Adjust machine output directly at the arc—no control cable required. Enhances safety, reduces jobsite clutter, and compensates for voltage drop automaticall
- Fuel Efficient, Built to Run – A 20-gallon (75.7 L) fuel tank paired with Auto-Stop/Start technology minimizes idling, cuts fuel costs, and extends engine life.
- Proven Diesel Performance – Powered by a 48.6 hp turbocharged Kubota® diesel engine for smooth, quiet operation that meets EPA Tier 4 Final emissions standards.
- Built for the Toughest Jobs – Rugged, reliable design backed by industry-leading support and a 3-year warranty

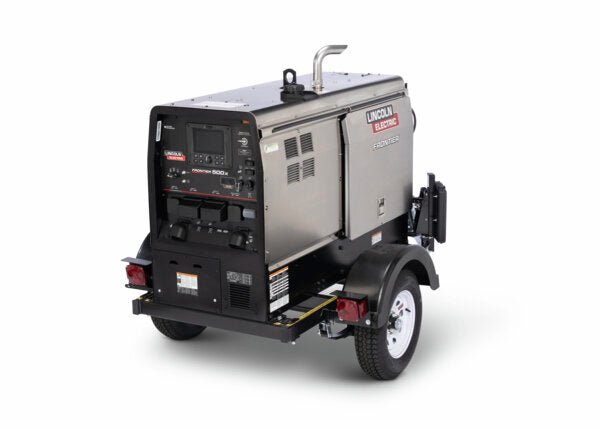

- Rent-Ready Package – Product comes in one preassembled package from the factory. Ready-Pak® 1 option includes the welder, trailer, fender and light kit, and cable rack.
