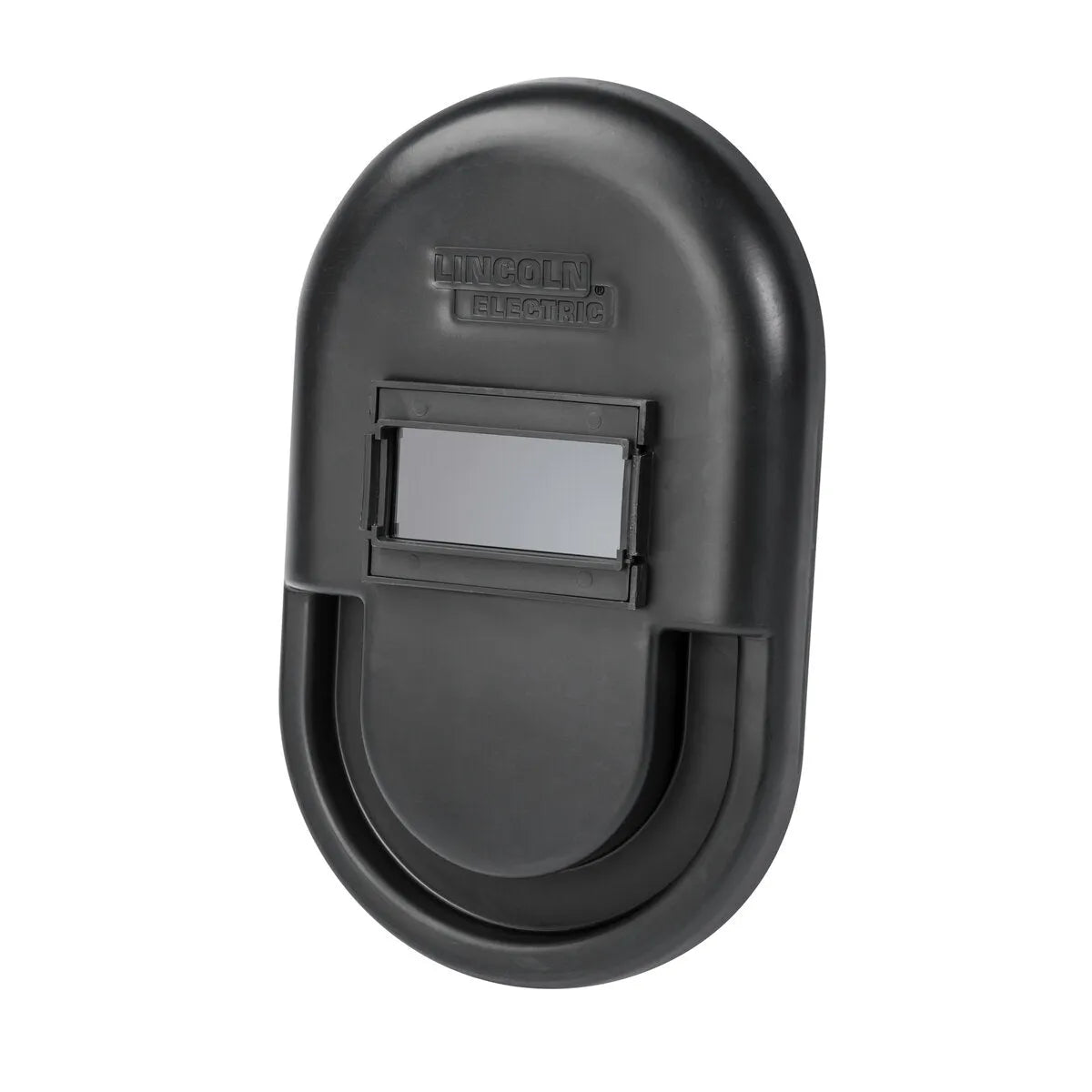

The Lincoln Hand Shield K1878-1 is a fixed-shade Shade 9 hand-held welding eye protection tool for occasional welding, tacking tasks, and observation where a full helmet is impractical. No batteries, no electronics, no headgear adjustment — pick it up and go.
| SKU | K1878-1 |
|---|---|
| Type | Hand-held passive welding shield |
| Lens shade | Fixed Shade 9 |
| Viewing area | 2" × 4.25" (8.5 sq. in.) |
| Lens type | Passive fixed filter |
| Auto-darkening | No |
| Grinding mode | No |
| Safety standard | ANSI Z87.1 |
- Observation and supervision: Supervisors or helpers who need to view a weld in progress without wearing a full helmet
- Tacking and spotting: Short-duration tack welds where putting on and removing a full helmet repeatedly is impractical
- Stick welding up to ~150A (shade 9): Covers stick in the 75–125A range per AWS Z49.1 minimum shade requirements
- Light MIG under 100A: Suitable for short-circuit MIG at low parameters where shade 9 is appropriate
- Training environments: Students observing welding technique without a full helmet
Fixed Shade 9 Passive Lens: Always dark at shade 9. Zero electronics, zero batteries, zero failure risk at arc initiation. Shade 9 covers a practical range of stick, MIG, and light TIG. For welding consistently above 150A stick or 160A MIG, step up to shade 10–12.
Compact Hand-Held Design: No fitting, no headgear, no straps. Useful for two-person jobs where one holds the shield while the other welds, or for instructors demonstrating technique to students.
ANSI Z87.1 Compliant: Meets industrial eye protection standards for professional environments requiring safety compliance documentation.
What welding processes is the K1878-1 rated for?
Stick welding up to approximately 150A, MIG under 100A, and any process where shade 9 meets AWS Z49.1 minimums. Not recommended for high-amperage stick over 200A, heavy flux-core, or carbon arc gouging requiring shade 11–13.
Does this shield have an auto-darkening lens?
No. The K1878-1 uses a fixed passive shade 9 filter. No electronics, no sensors, no batteries — the lens is always at shade 9.
Can I replace the lens?
Yes. Replacement 2" × 4.25" passive shade 9 lenses are available in the Helmet Lenses & Accessories collection.
When should I use a full helmet instead?
For any continuous production welding session, use a full welding helmet with headgear. Holding a hand shield for extended welding causes arm fatigue and inconsistent lens positioning that increases arc-eye exposure risk.
