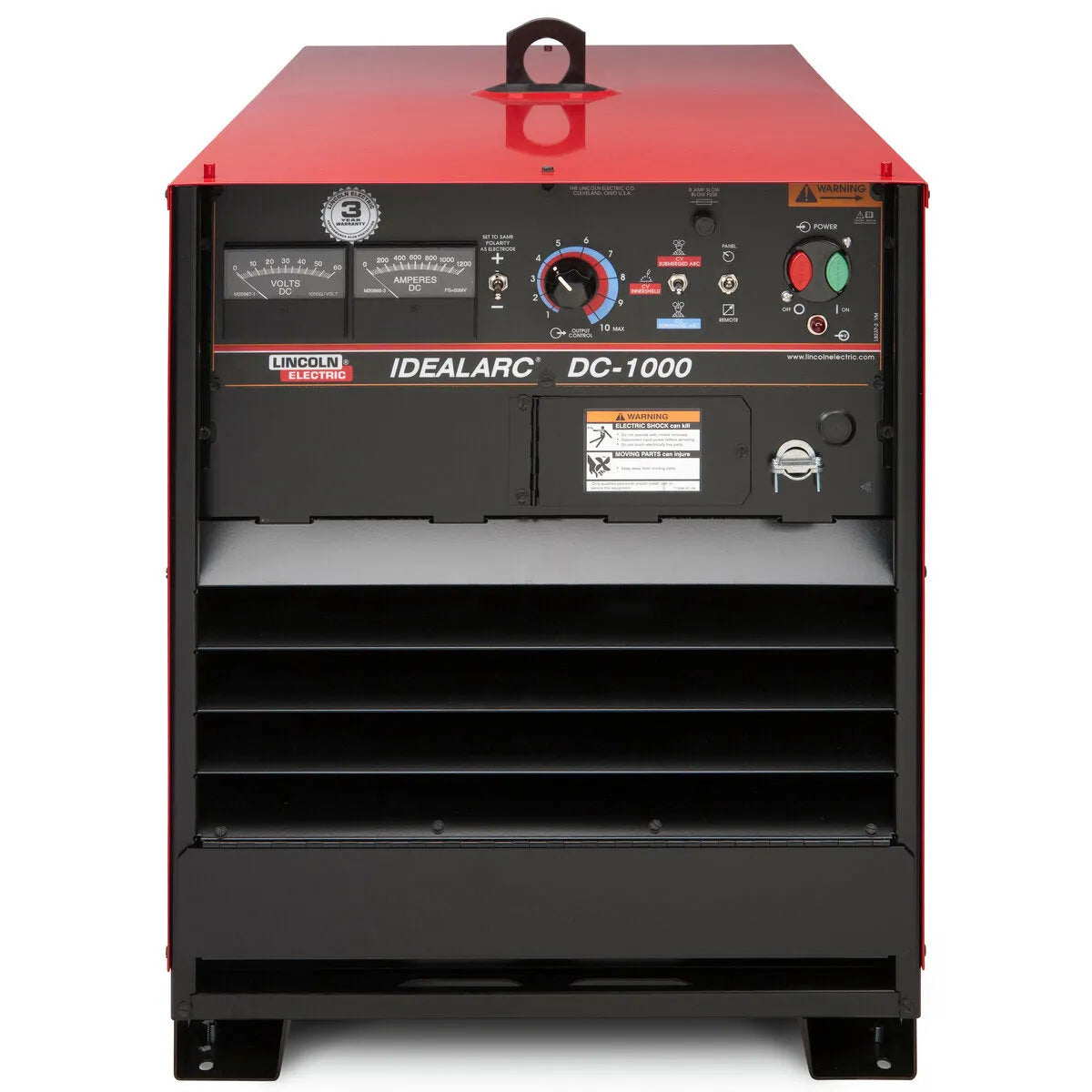

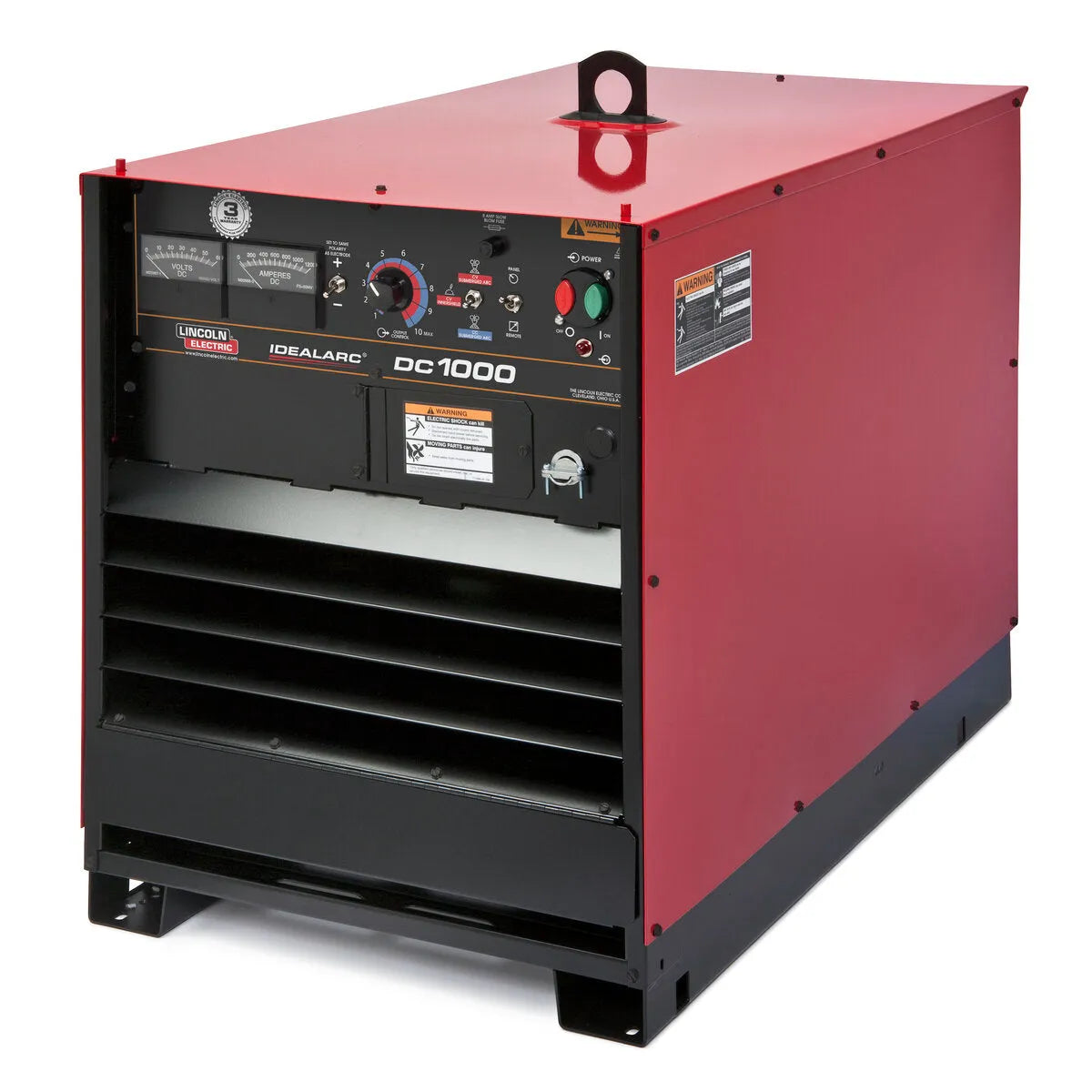

The Lincoln Idealarc DC-1000 Subarc Welder is a powerful industrial DC multi-process welder designed for demanding applications. This robust unit delivers 1300 amps of smooth DC output, combining pure welding power with multi-process flexibility for both semiautomatic and automatic welding operations. With its exceptional performance capabilities and versatile design features, the DC-1000 has established itself as a preferred choice for professional welding operations requiring consistent, high-quality results across various welding processes.
The Idealarc DC-1000 features specialized 500 amp output connections that provide enhanced arc characteristics for low amperage submerged arc and MIG welding procedures, ensuring optimal performance even at lower power settings. The intuitive single range control system offers precise output management and simplified operation, allowing welders to achieve consistent results with minimal adjustment complexity. For integration with automated systems, the unit includes convenient terminal strips and output studs designed for remote connections and cable management, facilitating seamless incorporation into sophisticated production environments.
The practical low-profile case design of the Idealarc DC-1000 enables versatile installation options, including placement under workbenches and the ability to stack up to two machines vertically, significantly conserving valuable floor space in busy fabrication facilities. Internal components, including windings, rectifiers, and circuit boards, feature protective coatings that shield against moisture and corrosion, extending operational lifespan even in challenging industrial environments. The welder's durability is further reinforced by Lincoln's confidence in its construction, as evidenced by the seven-year warranty on the power rectifier component, providing users with exceptional long-term value and reliability for their investment.
- Powerful 1300 amp smooth DC output for exceptional welding performance across multiple processes.
- Specialized 500 amp output connections delivering enhanced arc characteristics for low amperage applications.
- Precision single range control system providing accurate output management and operational simplicity.
- Integrated terminal strip and output studs designed for seamless remote connections and cable management.
- Space-efficient low profile case enabling under-bench installation and vertical stacking of up to two units.
- Moisture and corrosion-resistant internal components ensuring long-term reliability in industrial environments.
- Comprehensive seven-year warranty coverage on the power rectifier component for investment protection.
- Multi-process capability supporting Stick, Flux-Cored, and Submerged Arc welding applications.
- Removable side panels providing convenient access to internal components for maintenance procedures.
| Dimensions (H x W x D) | 30.7 in x 22.25 in x 39 in (781 mm x 565 mm x 991 mm) |
| Net Weight | 821 lbs (372 kg) |
| Machines Processes | Stick (SMAW) Flux-Cored (FCAW) Submerged Arc (SAW) |
| Input Voltage | 230/460 |
| Input Current | 193/96.5A |
| Input Hertz | 60 |
| Input Phase | 3 |
| Input Power | 230/460/3/60 |
| Mode Icon | CC/CV |
| Output Range | 150-1300A DC,16-46V |
| Polarity | DC |
| Machines Communication Technology | analog |
| Wire Feeder Supply Voltage | 115VAC |
| Amphenol Pins (type of connector) | Terminal Strip |
| Work Lead Connector Type | Lug |
| Typical Application | Heavy Fabrication |
| Warranty | 3 Years |
