The Lincoln Invertec V276 is Lincoln Electric's weather-resistant industrial Stick and TIG inverter rated to 275 amperes — built for demanding construction, pipeline, and maintenance environments where the machine must perform reliably outdoors, in dusty fabrication shops, and in harsh multi-shift production settings. Available in single-phase and three-phase rack configurations, the V276 is the choice for pipeline contractors, heavy fabricators, and operations that need 275 A DC Stick and TIG output with industrial-grade weather and IP23 environmental protection.
- 275 A output — handles electrodes up to 1/4" and large-diameter pipe. The V276 delivers a 20–275 A DC output range that covers everything from fine repair work at 20–40 A to heavy-electrode structural and pipeline production at 250–275 A. Large-diameter E7018 (3/16" and 7/32") for thick-section structural welds and heavy overlay work operate at the top of this range. According to the Lincoln Electric Invertec V276 specification sheet, rated output is 275 A / 31 V / 35% duty cycle, 250 A / 30 V / 60%, and 200 A / 28 V / 100% duty cycle — a 100% continuous rating at 200 A that production multi-operator environments require.
- IP23 weather-resistant enclosure. The Invertec V276 carries an IP23 ingress-protection rating — protected against water spray at angles up to 60° from vertical. This means the machine can operate in light rain, under roof eaves, on outdoor structural sites, and in dusty fab shops without the risk of moisture and contamination damage that plagues non-rated portable inverters. For contractors working on outdoor pipeline construction, bridge fabrication, and coastal marine structure work, IP23 is a minimum practical requirement.
- Multi-voltage input: single-phase 208/230/460/575 V and three-phase 208/230/460/575 V. The V276's universal multi-voltage input accepts single-phase or three-phase power across 208–575 V with no internal rewiring. A selector switch covers the full North American and international voltage range. This versatility lets contractors deploy the same machine at domestic construction sites on 230 V single-phase, at industrial facilities on 460 V three-phase, and at international or offshore installations on 380/415 V three-phase. Per WeldingMart's Invertec V276 product listing, input voltage range is 208/230/380/415/460/575 VAC.

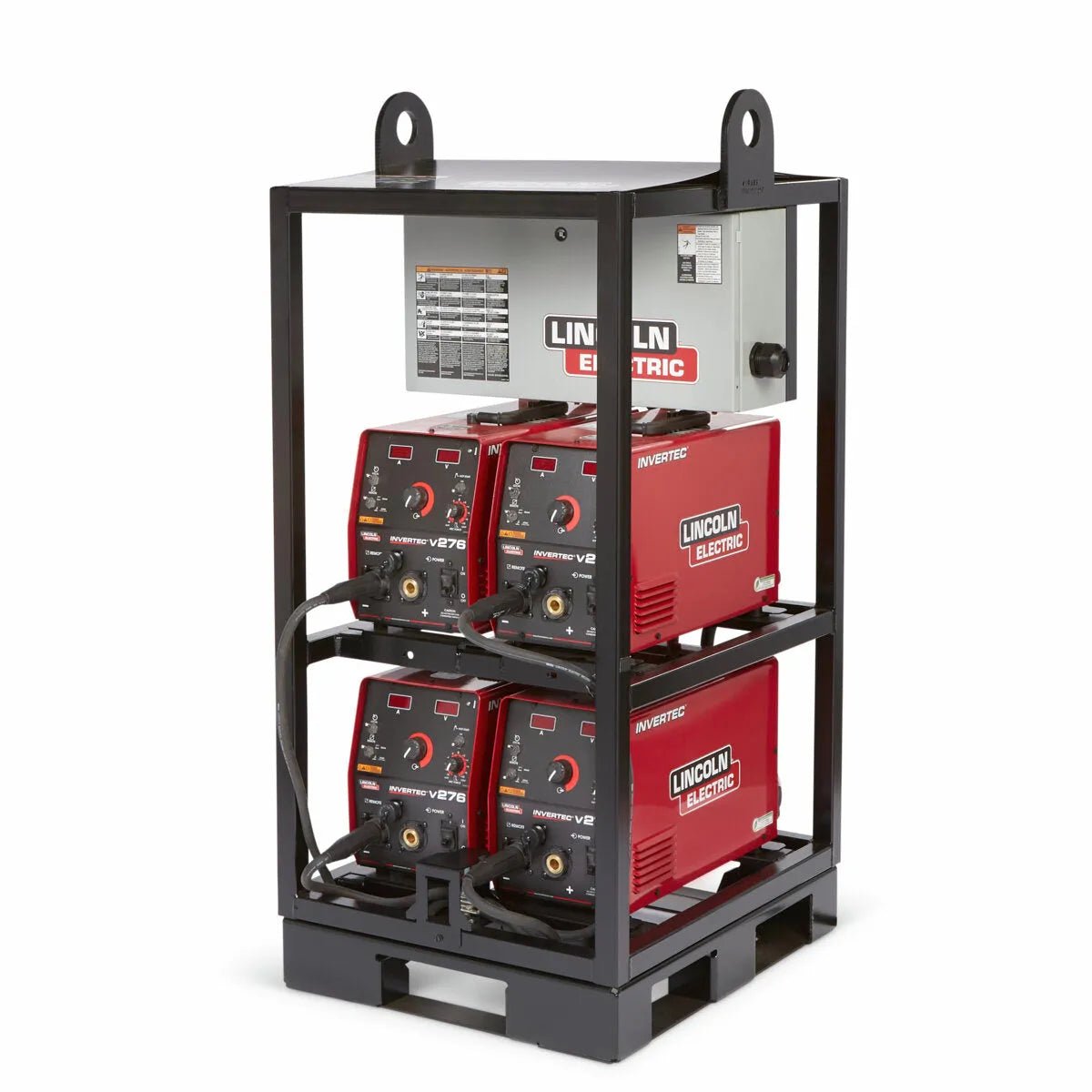

- Available in 4-pack and 8-pack rack configurations for multi-operator setups. The V276 is available as individual units (K4868-1 Tweco, K4868-2 Twist Mate) and as rack-mounted multi-pack configurations (K4869-1 4-Pack Rack, K4869-2 8-Pack Rack) for multi-operator pipeline and structural ironwork applications. The rack configurations allow a general contractor or pipeline company to deploy 4 or 8 welders simultaneously from a single power distribution point, dramatically reducing setup time and infrastructure cost on large projects.
| SKU / Model | K4868-1 (Tweco connection) / K4868-2 (Twist Mate connection) / K4869-1 (4-Pack Rack) / K4869-2 (8-Pack Rack) |
| Processes | DC Stick (SMAW), DC TIG (GTAW), Gouging (CAC-A) |
| AC/DC Capability | DC only |
| Input Voltage | 208/230/460/575 V, Single or Three Phase, 50/60 Hz |
| Rated Output — 35% Duty Cycle | 275 A / 31 V |
| Rated Output — 60% Duty Cycle | 250 A / 30 V |
| Rated Output — 100% Duty Cycle | 200 A / 28 V (continuous production rating) |
| Output Range | 20–275 A DC |
| IEC Rating / Ingress Protection | IP23 (weather-resistant — spray water protected) |
| Power Factor | Multi-voltage inverter/chopper |
| Polarity | DC only |
| Remote Control Connector | 6-pin Amphenol (standard Lincoln remote) |
| Work Lead Connector — K4868-1 | Tweco |
| Work Lead Connector — K4868-2 | Twist Mate |
| Net Weight | 54 lbs (24.49 kg) |
| Dimensions (H×W×D) | 13.6" × 9.0" × 20.25" (345 × 229 × 514 mm) |
| Warranty | 3 Years (Lincoln Electric factory) |
| Condition | New — Lincoln Electric K-prefix (factory-new) |
Source: Lincoln Electric Invertec V276 Specification Sheet | WeldingMart Invertec V276 listing
- Invertec V276 Power Source (K4868-1 Tweco or K4868-2 Twist Mate)
- Work lead with Tweco or Twist Mate connector (per model)
- Electrode holder / stinger with lead
- Operator's manual
- Note: Rack configurations (K4869-1 4-Pack, K4869-2 8-Pack) include rack housing and power distribution infrastructure — see individual model listings for full rack contents and interconnect cabling.
The Invertec V276's 6-pin Amphenol remote connector and industrial Tweco or Twist Mate output connections are compatible with the full range of Lincoln professional Stick and TIG accessories:
- Stick Electrodes — The V276's 275 A maximum output supports large-diameter electrodes: 5/32" and 3/16" E7018 H4R for heavy structural fillet and groove welds; 5/32" and 3/16" E6010 for root passes on heavy-wall carbon steel pipe and structural joints; E7016 and E7018-1 for low-temperature toughness requirements on pipeline and offshore structures; E309L and E312 for dissimilar metal welds and overlay work. The machine's 100% continuous rating at 200 A means long-run heavy-electrode production without thermal interruption.
- Stick Welding Accessories — 400 A and 500 A electrode holders for sustained heavy-electrode production runs; work clamps rated to 400 A and above for thick-section structural connections; chipping hammers for slag removal; Lincoln HydroGuard rod ovens for on-site E7018 low-hydrogen electrode conditioning. The K704 Lincoln 400 A Accessory Kit provides a complete lead and hardware bundle matched to the V276's output level.
- Electrode Holders & Stingers — Lincoln Industrial 300 A (K5156-1) and Lincoln T300 DC Electrode Holder (K909-6) for standard-duty stick welding. For the V276's heavy-electrode capability, 400 A and 500 A holders provide the thermal capacity and jaw grip required for sustained 3/16" and 7/32" rod production. Proper holder sizing is critical for code-quality structural and pressure-vessel work — undersized holders overheat and create contact resistance that destabilizes the arc.
- Welding Cables & Leads — 2/0 AWG and 3/0 AWG welding cable for extended-reach electrode and work leads on structural and pipeline sites. Tweco-to-Dinse and Tweco-to-Lenco adapters for mixed connector environments on multi-operator structural projects. 50-ft and 100-ft lead extensions for pipeline applications where the machine is stationed at one end of a pipe run and welders work along the length of the spool.
- Rod Ovens & Electrode Storage — Lincoln HydroGuard portable oven (K2939-2) and bench oven (K2942-2) for on-site low-hydrogen electrode conditioning. Essential for AWS D1.1, API 1104, and ASME Section IX qualifying work where E7018 moisture content must be controlled to within 4–8 hours of oven storage per code requirements.
The Invertec V276's 275 A output, IP23 weather resistance, 100% duty cycle at 200 A, and multi-voltage input make it the benchmark industrial Stick machine for demanding professional applications:
- Structural ironwork — heavy-section beam connections and column splices. Structural ironworkers welding W-flange and HSS connections on building frames, bridges, and industrial structures need the V276's combination of 250–275 A output for large-diameter E7018 passes, IP23 protection for outdoor elevated work in rain and wind, and multi-voltage input for deployment across varied site power configurations. The machine's 200 A / 100% duty cycle rating sustains the long bead times required for multi-pass full-penetration groove welds on thick structural sections without thermal interruption.
- Pipeline — mainline and station welding with E6010 and E7018. On API 1104 pipeline projects, the V276 handles E6010 root and hot passes (65–130 A, 3/32" and 1/8" rods) and E7018 fill and cap passes (130–200 A, 5/32" rods) on 12" to 24" diameter mainline pipe. The machine's IP23 rating protects it in the outdoor trench environment, and its universal multi-voltage input allows deployment at pipeline compressor station sites with 460 V three-phase industrial power as easily as at field tap locations with portable generator 230 V single-phase. Per the V276 specification sheet, input current at 275 A / 35% is 37 A on 208 V and 19 A on 460 V single-phase.
- Agricultural and heavy equipment fabrication. Equipment fabricators building and repairing agricultural implements, telehandler frames, loader attachments, and trailer chassis on 3/8"–1/2" carbon steel plate use the V276 in sustained 200–250 A Stick welding sessions with large E7018 rods. The 100% duty cycle at 200 A eliminates the thermal shutdown interruptions that smaller portable inverters impose on production welding — a fabricator running 200 A Stick production passes can weld continuously without the machine calling for a rest cycle.
- Repair and maintenance — heavy industrial and petrochemical. Maintenance welders in refineries, power plants, and heavy industrial facilities who weld on thick carbon steel pressure vessel nozzles, structural support repairs, and pipe flange installations need the V276's combination of 275 A Stick output, multi-voltage input flexibility, and IP23 protection in potentially wet or dusty plant environments. The machine's TIG capability (DC GTAW) also allows the same unit to be used for precision repair welding on alloy equipment and instrumentation connections without switching machines.
- Fabrication — structural and heavy plate work. Steel fabricators welding 1/4"–3/4" structural plate with large E7018 rods on press frames, machine bases, material handling equipment, and heavy custom fabrications rely on the V276's sustained output. At 250 A and 60% duty cycle, a fabricator can run 6-minute arcs with 4-minute rests continuously — adequate for most multi-pass structural weld sequences without extending the total production cycle by waiting for thermal recovery as would be necessary with a lower-rated machine.
The Invertec V276 delivers 20–275 A DC output. Rated performance is 275 A / 31 V at 35% duty cycle, 250 A / 30 V at 60% duty cycle, and 200 A / 28 V at 100% (continuous) duty cycle, per the Lincoln Electric Invertec V276 specification sheet. The 100% continuous rating at 200 A is the key specification for production pipeline and structural welding environments where thermal shutdown interruptions are unacceptable.
The Invertec V276 is DC-only. It produces DC Stick (SMAW), DC TIG (GTAW), and arc gouging (CAC-A) output. It cannot produce AC output and cannot TIG weld aluminum. For AC/DC applications, Lincoln Electric offers the Square Wave TIG and Precision TIG product families. For all professional pipeline, structural, and heavy fabrication Stick applications on carbon steel, low-alloy steel, stainless, and chrome-moly, the V276's DC output is the standard.
The V276 is rated 275 A / 35% duty cycle at maximum output, 250 A / 60% at one step below maximum, and 200 A / 100% (fully continuous) at its production operating point. For comparison, most compact 200–250 A portable inverters are rated 60% duty cycle at maximum output — the V276's 100% rating at 200 A represents a significant step up for sustained production welding without thermal interruption.
For structural carbon steel welding (beam connections, column splices, heavy plate), E7018 H4R in 5/32" and 3/16" diameters at 150–220 A. For pipeline root and hot passes on carbon steel, E6010 in 3/32" and 1/8" at 65–130 A. For pipe fill and cap passes, E7018 in 1/8" and 5/32" at 120–180 A. For stainless and dissimilar metal work, E308L-16 and E309L-16 in 1/8" diameter. The V276's full 20–275 A range gives maximum electrode diameter flexibility across all of these applications.
At 54 lbs (24.49 kg) and 13.6" × 9.0" × 20.25", the V276 is a compact industrial-class machine transportable in a work truck or van for site deployment. For maximum portability, individual K4868-1 and K4868-2 units can be carried to specific work locations on larger sites. For pipeline construction and multi-welder structural projects, the K4869-1 4-Pack Rack and K4869-2 8-Pack Rack configurations allow deployment of 4 or 8 machines simultaneously from a central power distribution point, which is standard practice on API 1104 pipeline projects and large structural ironwork contracts.
